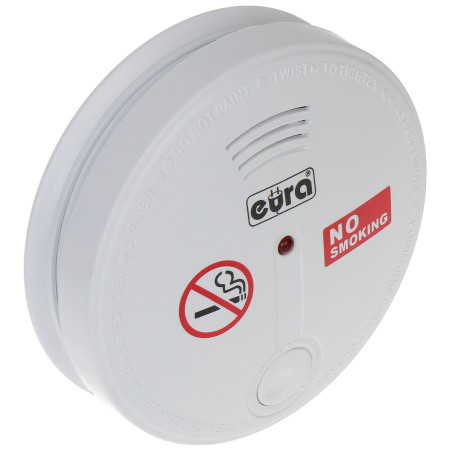

Autonomous cigarette smoke detector tobacco smoke sensor LED sound alarm for office school hospital EURA SD-20B8
zł137.23
Tax included
The EURA SD-20B8 cigarette smoke detector is an advanced autonomous device designed specifically for monitoring indoor areas for the presence of tobacco smoke. It is an ideal solution for places where there is a strict smoking ban, such as schools, kindergartens, hospitals, offices, public institutions, and residential buildings. Thanks to the use of a precise photo-optical sensor, the device instantly detects cigarette smoke particles, triggering a loud 85 dB acoustic alarm and optical signaling via an LED.
One of the greatest advantages of the SD-20B8 model is its full autonomy. The device does not require any wiring or connection to external alarm systems, making installation extremely simple and fast. Battery power (standard 9V battery) allows the detector to be placed anywhere on the ceiling, regardless of electrical network availability. Additionally, the detector is equipped with an intelligent low battery warning system, which ensures continuous protection and informs the user about the need to replace the cell. The built-in TEST button allows for regular verification of the device's performance, which is crucial for maintaining safety. The aesthetic, white, compact housing ensures the detector blends discreetly into any interior while providing effective air quality control and compliance with fire and safety regulations.
Autonomous cigarette smoke detector tobacco smoke sensor LED sound alarm for office school hospital
Model: EURA SD-20B8
EAN: 6931240060223 SKU: 931060221
- Detection of cigarette and tobacco smoke
- Fully autonomous operation without wiring
- Loud acoustic signaling 85 dB / 3m
- Optical alarm signaling with LED
- Powered by a standard 9V battery (type 6F22)
- Low battery warning function
- TEST button to check device performance
- Wide operating temperature range from -10°C to 40°C
- Compact housing with IP20 protection rating
- Easy ceiling mounting using included accessories
Description
The EURA SD-20B8 cigarette smoke detector is an advanced autonomous device designed specifically for monitoring indoor areas for the presence of tobacco smoke. It is an ideal solution for places where there is a strict smoking ban, such as schools, kindergartens, hospitals, offices, public institutions, and residential buildings. Thanks to the use of a precise photo-optical sensor, the device instantly detects cigarette smoke particles, triggering a loud 85 dB acoustic alarm and optical signaling via an LED. One of the greatest advantages of the SD-20B8 model is its full autonomy. The device does not require any wiring or connection to external alarm systems, making installation extremely simple and fast. Battery power (standard 9V battery) allows the detector to be placed anywhere on the ceiling, regardless of electrical network availability. Additionally, the detector is equipped with an intelligent low battery warning system, which ensures continuous protection and informs the user about the need to replace the cell. The built-in TEST button allows for regular verification of the device's performance, which is crucial for maintaining safety. The aesthetic, white, compact housing ensures the detector blends discreetly into any interior while providing effective air quality control and compliance with fire and safety regulations.
Specification
Device type
Autonomous cigarette smoke detector
Purpose
Monitoring of closed rooms (schools, hospitals, offices, homes)
Detection
Smoke, cigarette (tobacco) smoke
Acoustic signaling
Built-in piezoelectric transducer, sound intensity 85 dB at a distance of 3 meters
Optical signaling
Red LED indicating alarm status and device operation
Sensor sensitivity
Very high sensitivity at 0.03 dB/m, optimized for tobacco smoke
Power supply
9V battery, type 6F22 (alkaline recommended for longer operating time)
Current consumption
Standby mode: below 10 µA; Alarm mode: approximately 20 mA
Diagnostic functions
Test button for checking electronics and siren, acoustic low battery warning
Operating conditions
Temperature from -10 °C to 40 °C, relative humidity up to 95% without condensation
Protection class
IP20 - protection against solid objects larger than 12.5 mm
Construction
Plastic housing, ceiling mounting, dimensions Ø 107 x 35 mm
Certificates and Warranty
CE compliance, 2-year manufacturer warranty
Software and Logic
Built-in microcontroller with software dedicated to real-time smoke density analysis. The control algorithm of the SD-20B8 device is based on advanced signal processing from the photo-optical chamber, which allows for precise differentiation of cigarette smoke from other pollutants. The software has an implemented self-diagnostic function that verifies the sensor's correct operation and measures battery voltage every few dozen seconds. If a voltage drop below the critical threshold is detected, the device logic generates a short, cyclically repeated beep, preventing the room from being left unprotected. The system is optimized for extremely low power consumption in standby mode.
Contents
1x SD-20B8 smoke detector
1x 9V 6F22 battery
1x Set of mounting plugs
1x User manual in Polish
Dimensions, Weight
Product dimensions: 35 x 107 x 107 mm (D x W x H)
Packaging dimensions: 45 x 190 x 145 mm (D x W x H)
Product weight: 140 g
Weight with packaging: 184 g
