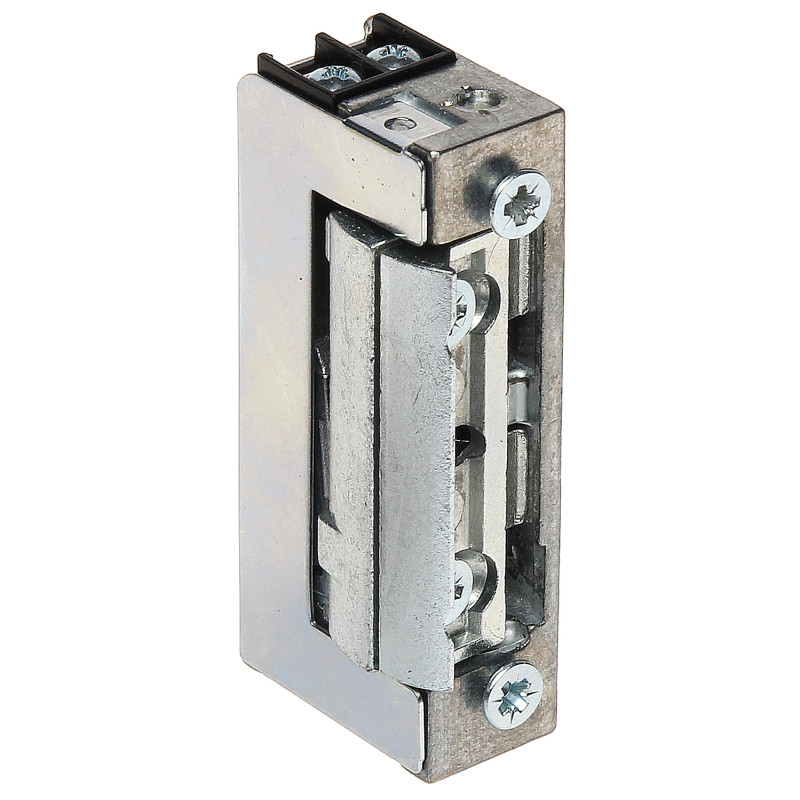

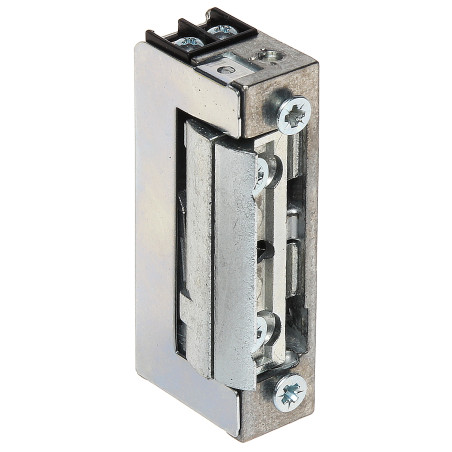

Symmetrical electric strike with memory for doors and gates adjustable latch 10V AC/DC durable lock bolt Delta R5-12.50
zł152.26
Tax included
The R5-12.50 electromagnetic strike is a professional actuator widely used in modern access control systems, intercom, and video intercom installations. The device is designed for installation in doors and gates made of metal profiles, working with latch-bolt locks or standard latch locks. Thanks to its symmetrical design, the electric strike is fully universal, meaning it can be mounted in both right and left-hand doors, which significantly simplifies the installation process and eliminates the risk of errors during purchase.
The greatest advantage of the R5-12.50 model is the integrated memory function. This mechanism is extremely practical – it allows the passage to be unlocked after receiving even a very short electrical impulse. After the voltage is cut off, the strike remains in the open state until the person entering physically opens the door. This is an ideal solution for multi-family buildings or offices where the user needs time to reach the door after the lock has been remotely released. Additionally, the device offers a clearance adjustment function, which allows for precise alignment of the latch with the lock keeper, eliminating any play and ensuring smooth operation of the entire mechanism.
The strike construction is based on durable materials, which translates into high mechanical resistance. The product withstands pressure of 3000 N, providing a solid barrier against forced entry attempts. The low 10V AC/DC voltage power supply makes the device safe and compatible with most standard control panels and power supplies. Compact dimensions allow for aesthetic installation in the door frame, and the manufacturer's two-year warranty confirms the high quality of this product. By choosing the R5-12.50, you are investing in the safety, convenience, and reliability of your entry system.
Symmetrical electric strike with memory for doors and gates adjustable latch 10V AC/DC durable lock bolt
Model: Delta R5-12.50
EAN: 6931240043400 SKU: 931043406
- Built-in memory function allowing opening after a short impulse
- Symmetrical design - fits both left and right-hand doors
- Adjustable latch clearance for a perfect fit
- High mechanical strength against pressure up to 3000 N
- Universal 10V AC or DC power supply
- Designed for doors and gates made of metal profiles
- Compact dimensions for easy installation in the door frame
- Permissible continuous operation time up to 30 minutes
Description
The R5-12.50 electromagnetic strike is a professional actuator widely used in modern access control systems, intercom, and video intercom installations. The device is designed for installation in doors and gates made of metal profiles, working with latch-bolt locks or standard latch locks. Thanks to its symmetrical design, the electric strike is fully universal, meaning it can be mounted in both right and left-hand doors, which significantly simplifies the installation process and eliminates the risk of errors during purchase.
The greatest advantage of the R5-12.50 model is the integrated memory function. This mechanism is extremely practical – it allows the passage to be unlocked after receiving even a very short electrical impulse. After the voltage is cut off, the strike remains in the open state until the person entering physically opens the door. This is an ideal solution for multi-family buildings or offices where the user needs time to reach the door after the lock has been remotely released. Additionally, the device offers a clearance adjustment function, which allows for precise alignment of the latch with the lock keeper, eliminating any play and ensuring smooth operation of the entire mechanism.
The strike construction is based on durable materials, which translates into high mechanical resistance. The product withstands pressure of 3000 N, providing a solid barrier against forced entry attempts. The low 10V AC/DC voltage power supply makes the device safe and compatible with most standard control panels and power supplies. Compact dimensions allow for aesthetic installation in the door frame, and the manufacturer's two-year warranty confirms the high quality of this product. By choosing the R5-12.50, you are investing in the safety, convenience, and reliability of your entry system.
Specification
Device type
Symmetrical electromagnetic strike with internal memory function
Rated voltage
10 V ± 2 V AC/DC - the device can operate on both alternating and direct current
AC current consumption
500 mA - current consumption value when powered by alternating current
DC current consumption
600 mA - current consumption value when powered by direct current
Universal application
Design adapted for installation in right-hand and left-hand doors (symmetry)
Memory function
Yes - the strike remains open after an impulse until the door is physically opened for the first time
Latch lock
No - the model does not have a mechanical lock switch
Reversible operation
No - standard model (closed in the absence of power, NO)
Clearance adjustment
Yes - the built-in adjustment screw allows for correction of the latch position relative to the lock
Pressure during release
Permissible pressure on the door during latch release is up to 30 N (approx. 3 kg)
Static load
Permissible door load acting directly on the strike is 3000 N (approx. 300 kg)
Continuous operation time
Permissible continuous operation time under voltage is a maximum of 30 minutes
Durability and warranty
Product covered by a 2-year manufacturer's warranty, made of wear-resistant materials
Installation conditions
Designed for use with latch locks in metal and wooden profiles
Contents
1x R5-12.50 electromagnetic strike
1x User and installation manual
Dimensions, Weight
Product dimensions: 68 x 18 x 32 mm (D x W x H)
Package dimensions: 25 x 75 x 35 mm (D x W x H)
Product weight: 130 g
Weight with packaging: 138 g
