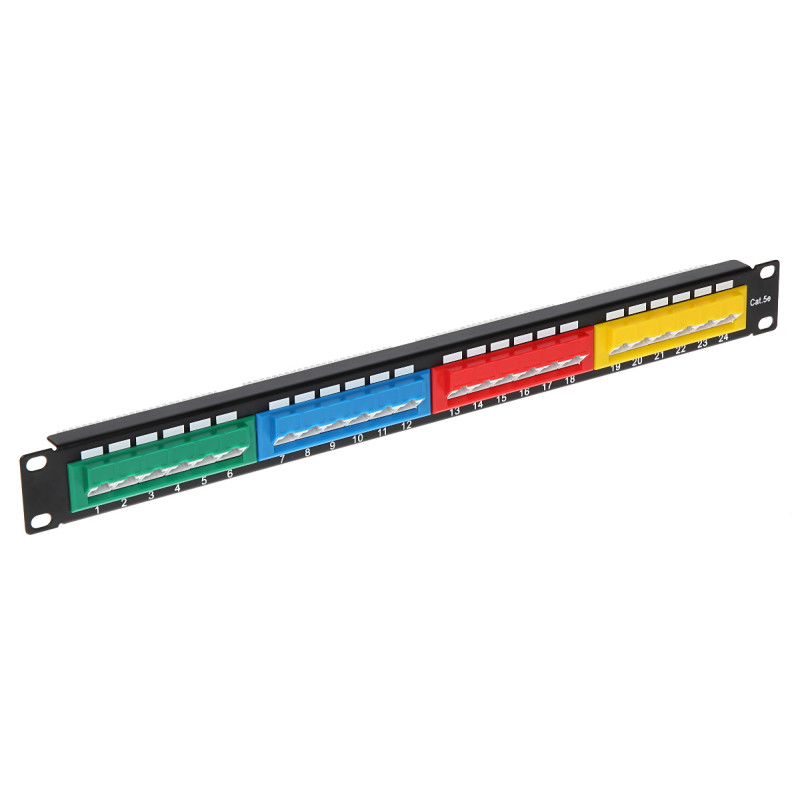

Patch Panel 24 Port RJ45 Cat. 5e UTP 19 Inch 1U Angled Black LAN Cable Organizer Delta PP-24/RJ-KAT
zł157.44
Tax included
The PP-24/RJ-KAT patch panel is a professional solution designed for the aesthetic and durable termination of structured cabling in telecommunications networks. The device is designed for mounting in standard 19-inch RACK cabinets, occupying only 1U of height, which allows for optimal space management in server rooms. A key innovation of this model is the 45-degree angle of the RJ-45 ports, which significantly facilitates the connection of patch cords and reduces the risk of cable damage due to excessive bending.
Product advantages:
- Ergonomic design: Angled ports facilitate cable organization in the cabinet.
- High transmission quality: Full compliance with Cat. 5e UTP.
- Robustness: Powder-coated metal housing ensures resistance to mechanical damage.
- Easy installation: Krone-type connectors and dedicated points for securing zip ties.
- Versatility: Ideal for IP monitoring systems, office networks, and home LAN installations.
The product ensures connection reliability and minimal signal attenuation, which is crucial for the stable operation of modern network systems. Thanks to its well-thought-out design, installers can quickly terminate cables using standard punch-down tools, and the integrated cable management system guarantees order inside the rack cabinet.
Patch Panel 24 Port RJ45 Cat. 5e UTP 19 Inch 1U Angled Black LAN Cable Organizer
Model: Delta PP-24/RJ-KAT
EAN: 6931240095829 SKU: 931095829
- 19-inch RACK mounting standard
- 1U mounting height
- 24 RJ-45 ports angled at 45 degrees
- Cat. 5e UTP compliance
- Twisted pair termination using Krone-type connectors
- Solid black metal housing
- Holes on the panel for cable management with zip ties
- 3-year manufacturer warranty
Description
The PP-24/RJ-KAT patch panel is a professional solution designed for the aesthetic and durable termination of structured cabling in telecommunications networks. The device is designed for mounting in standard 19-inch RACK cabinets, occupying only 1U of height, which allows for optimal space management in server rooms. A key innovation of this model is the 45-degree angle of the RJ-45 ports, which significantly facilitates the connection of patch cords and reduces the risk of cable damage due to excessive bending.
Product advantages:
- Ergonomic design: Angled ports facilitate cable organization in the cabinet.
- High transmission quality: Full compliance with Cat. 5e UTP.
- Robustness: Powder-coated metal housing ensures resistance to mechanical damage.
- Easy installation: Krone-type connectors and dedicated points for securing zip ties.
- Versatility: Ideal for IP monitoring systems, office networks, and home LAN installations.
The product ensures connection reliability and minimal signal attenuation, which is crucial for the stable operation of modern network systems. Thanks to its well-thought-out design, installers can quickly terminate cables using standard punch-down tools, and the integrated cable management system guarantees order inside the rack cabinet.
Specification
Mounting standard
19" RACK
Mounting height
1 U
Number of ports
24 pcs - RJ-45 sockets
Cabling category
5e (UTP)
Port angle
45° - facilitates patch cord management and reduces strain
Cable termination method
IDC / Krone type punch-down connectors (punch-down tool required)
Standards compliance
Full compliance with Cat. 5e requirements for Ethernet networks
Cable management
Integrated holes on the rear panel allowing for stable cable securing with zip ties
Material
Cold-rolled steel, powder-coated
Colour
Black (RAL 9005)
Operating temperature
-20 °C ... 60 °C
Ambient humidity
10 % ... 90 % (non-condensing)
Warranty
3 years (36 months)
Interface and Software
The device is a fully passive component, meaning it has no built-in operating system or processor. Its functionality is based on the physical cross-connecting of copper links. The user interface is limited to physical access to the RJ45 ports and the Krone-type IDC connectors on the rear of the device. The panel supports TIA/EIA 568A and 568B standards, allowing for seamless integration with any active network equipment, such as switches, routers, or servers, without the need for software configuration.
Contents
1x Patch panel PP-24/RJ-KAT
1x Set of RACK mounting screws (screws, cage nuts, washers)
1x Set of zip ties for cable organization
Dimensions, Weight
Product dimensions: 38 x 483 x 44 mm (D x W x H)
Package dimensions: 55 x 490 x 55 mm (D x W x H)
Product weight: 550 g
Weight with packaging: 630 g
