- New

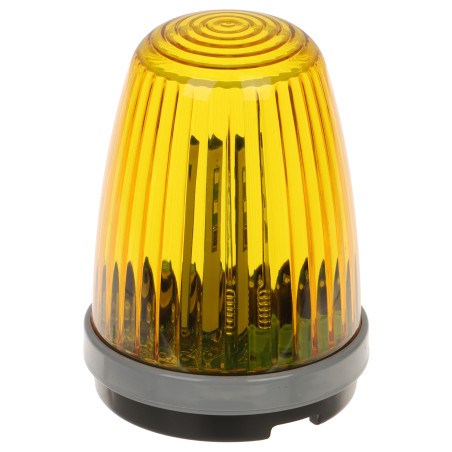

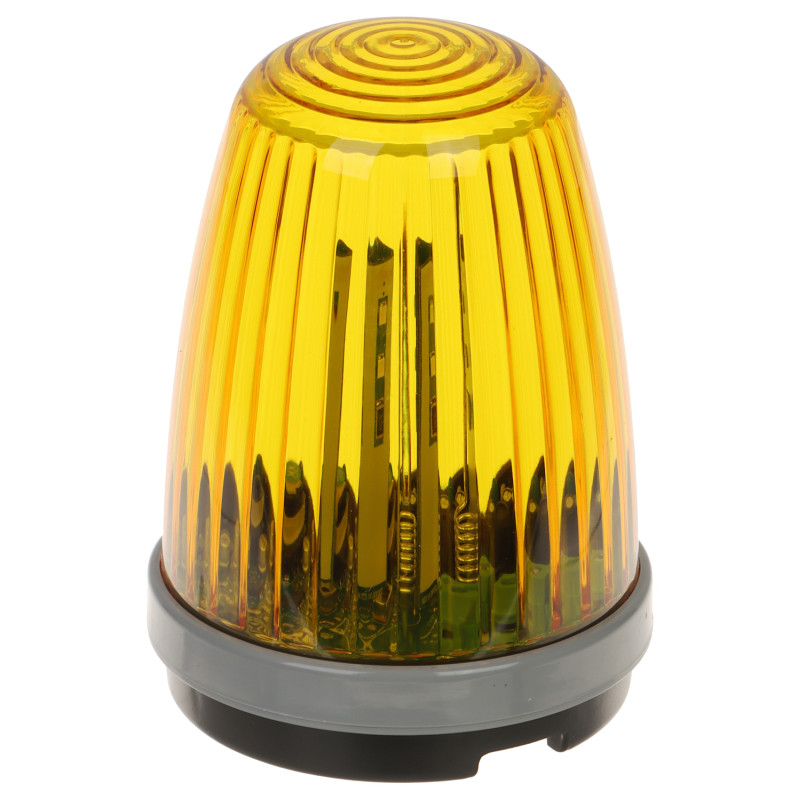

Orange LED Warning Light for Automatic Gates 230V AC IP54 Wall Mount Warning Beacon VIDOS LS02
zł166.05
Tax included
A warning light is a key component of any gate automation system, significantly increasing the safety level for users and bystanders. This model has been designed for reliability and durability in harsh outdoor conditions. The main task of the device is to visually warn about the movement of the gate leaf, which is particularly important in areas with high traffic or limited visibility.
Product advantages:
- High brightness thanks to the use of modern LED diodes, which are energy-efficient and have a long service life.
- Durable housing made of high-quality polycarbonate (PC), characterized by high resistance to mechanical damage and UV radiation.
- Mounting versatility: the lamp can be installed both vertically and horizontally, and the included wall bracket allows for easy installation on a post or facade.
- Selectable operating mode: using a jumper, the user can decide whether the lamp should operate in flashing mode (1 Hz frequency) or emit a steady light.
- Weather resistance: IP54 ingress protection rating guarantees protection against dust and water splashes, allowing for trouble-free operation in rain or snow.
- Wide operating temperature range from -20°C to 60°C makes the device suitable for the climate all year round.
- The aesthetic orange lens ensures excellent visibility of the warning signal even in full sun.
Investing in a professional warning light is not only a technical requirement for many drives, but above all, it is about taking care of property and health safety. Thanks to the use of LED technology, the lamp consumes a minimal amount of energy without overloading the gate controller.
Orange LED Warning Light for Automatic Gates 230V AC IP54 Wall Mount Warning Beacon
Model: VIDOS LS02
EAN: 6931240092040 SKU: 931092044
- Modern high-brightness LED light source
- Selectable operating mode: flashing or steady light
- Universal vertical or horizontal mounting
- Dedicated wall mounting bracket included
- Polycarbonate housing resistant to high temperatures and impacts
- High IP54 ingress protection rating for outdoor use
- Wide operating temperature range from -20°C to 60°C
- Aesthetic orange lens ensuring excellent visibility
Description
A warning light is a key component of any gate automation system, significantly increasing the safety level for users and bystanders. This model has been designed for reliability and durability in harsh outdoor conditions. The main task of the device is to visually warn about the movement of the gate leaf, which is particularly important in areas with high traffic or limited visibility.
Product advantages:
- High brightness thanks to the use of modern LED diodes, which are energy-efficient and have a long service life.
- Durable housing made of high-quality polycarbonate (PC), characterized by high resistance to mechanical damage and UV radiation.
- Mounting versatility: the lamp can be installed both vertically and horizontally, and the included wall bracket allows for easy installation on a post or facade.
- Selectable operating mode: using a jumper, the user can decide whether the lamp should operate in flashing mode (1 Hz frequency) or emit a steady light.
- Weather resistance: IP54 ingress protection rating guarantees protection against dust and water splashes, allowing for trouble-free operation in rain or snow.
- Wide operating temperature range from -20°C to 60°C makes the device suitable for the climate all year round.
- The aesthetic orange lens ensures excellent visibility of the warning signal even in full sun.
Investing in a professional warning light is not only a technical requirement for many drives, but above all, it is about taking care of property and health safety. Thanks to the use of LED technology, the lamp consumes a minimal amount of energy without overloading the gate controller.
Specification
Light source
The use of modern light-emitting diodes (LEDs) ensures not only high brightness and excellent visibility even in difficult weather conditions, but also minimal power consumption and exceptional longevity compared to traditional filament bulbs.
Color scheme
Orange (Amber) lens made of high light-transmittance material, which guarantees that the warning signal is visible from a long distance.
Lighting modes
The device offers two operating modes selected by the installer using a jumper located on the printed circuit board: flashing mode or continuous light mode.
Operating frequency
In flashing mode, the lamp generates flashes at a frequency of 1 Hz (one flash per second), which is the standard in gate automation warning systems.
Power parameters
The lamp is adapted to operate at 230 V AC, which allows for direct connection to most gate control units without additional power supplies.
Material
The lens and base are made of high-quality polycarbonate (PC), which is characterized by high resistance to UV radiation and mechanical damage.
Mechanical resistance
The solid polycarbonate construction ensures thermal stability, preventing deformation and cracking under the influence of frost or strong sunlight.
Ingress protection class
The IP54 protection rating means full protection against water splashes from any direction and protection against dust ingress, which allows for safe outdoor installation.
Temperature range
The device is adapted to operate in extreme climatic conditions, in a wide temperature range from -20 °C to +60 °C.
Mounting options
The lamp design allows for mounting in any orientation - vertical or horizontal, depending on the specifics of the installation site.
Mounting accessories
The set includes an additional angle bracket, which allows for aesthetic side mounting on a wall or fence post.
Electrical connections
Internal screw wire terminals facilitate quick, secure, and durable electrical installation inside the housing.
External dimensions
The compact housing with a diameter of 90 mm and a height of 125 mm ensures a discreet appearance while maintaining maximum functionality.
Device weight
The low weight of only 0.17 kg (170 grams) means that the lamp does not burden the structural elements on which it is mounted.
Warranty and certification
The product is covered by a 3-year manufacturer's warranty (36 months), which confirms its high quality of workmanship and reliability.
Contents
1x LS02 warning light
1x Wall mounting bracket
1x Set of mounting plugs and screws
1x User manual in Polish
Dimensions, Weight
Product dimensions: 90 x 90 x 125 mm (D x W x H)
Packaging dimensions: 105 x 140 x 110 mm (D x W x H)
Product weight: 170 g
Weight with packaging: 253 g
Zum Download
931092044
8 Items
Specific References
- ean13
- 6931240092040
