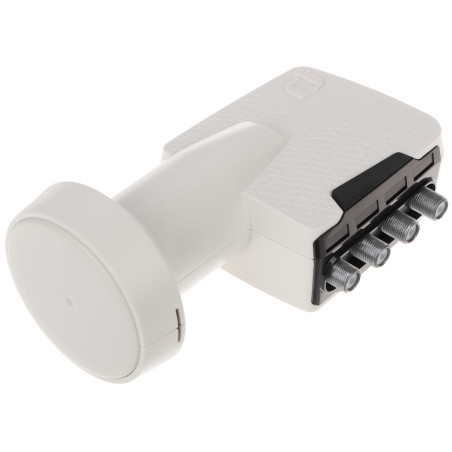

High Quality Quad LNB Satellite Converter 4 Outputs Full HD 4K for Satellite Dish

Model: INVERTO KONW/QUAD-INVERTO

EAN: 6931240054864 SKU: 931054860

• Four independent F-type outputs
• Low noise figure 0.3 dB
• Support for 4K UHD and Full HD resolution
• High gain 55 dB
• Weatherproof
• Standard 40 mm mount
• High polarization isolation

Description

The Inverto Quad satellite converter is a technologically advanced device designed for receiving signals from a single satellite and distributing them to up to four independent satellite receivers or two dual-tuner recorders (PVR). It is an ideal solution for home television installations where access to the signal is required in several rooms simultaneously without loss of image and sound quality.

Main advantages of the product:

- Ability to connect four tuners without the need for additional splitters or multiswitches.

- Very low noise figure of 0.3 dB, which guarantees stable reception even in difficult weather conditions.

- Full compatibility with 4K Ultra HD, Full HD, and 3D transmission standards.

- High signal gain (55 dB) ensuring excellent image quality.

- Solid housing resistant to changing weather conditions, including rain, snow, and UV radiation.

- Standard 40 mm mount diameter, fitting most satellite dishes available on the market.

- Simple Plug & Play installation, requiring no specialized technical knowledge.

Thanks to the use of modern components, the converter is characterized by low power consumption and high isolation between polarizations, which eliminates interference between channels. It is a product of the renowned Inverto brand, known for producing top-class satellite equipment, which translates into longevity and reliability of operation for many years. By choosing this model, you are investing in signal stability and the highest comfort of watching your favorite TV programs in the highest available resolution.

Specification

Converter type

Quad (LNB) - support for 4 independent tuners

Input frequency

Low band: 10.7 GHz ... 11.7 GHz, High band: 11.7 GHz ... 12.75 GHz

Output frequency

Low band: 950 - 1950 MHz, High band: 1100 - 2150 MHz

Oscillator frequency (L.O.)

9.75 GHz / 10.6 GHz

Noise figure

0.3 dB (typical)

Gain

55 dB

Number of outputs

4 pcs. F-type connector

Output impedance

75 Ω

H/V polarization switching

13 V / 18 V DC

Band switching

22 kHz

Suggested dish size

80 cm - 90 cm

Mount diameter

40 mm

Manufacturer warranty

2 years (24 months)

Operating temperature

-30 °C ... 60 °C (estimated)

Control logic and software

The device uses advanced signal switching logic controlled by DC voltage and a 22kHz frequency signal transmitted directly from the satellite tuner. The internal integrated circuit precisely interprets DiSEqC commands and voltage changes, which allows for instantaneous polarization and band switching without delays visible to the user. The signal management system ensures high isolation between outputs, which prevents interference between tuners connected to the same converter. The oscillator stabilization circuit guarantees a constant operating frequency even during extreme fluctuations in external temperature, which is crucial for the stability of HD and 4K digital channel reception. Additionally, implemented LTE/4G filters minimize the impact of interference from terrestrial mobile network transmitters, which significantly improves signal quality in densely built-up urban areas.

Contents

1x Quad Inverto Converter

1x Integrated F-connector cover

Dimensions, Weight

Product dimensions: 68 x 144 x 90 mm (D x W x H)

Package dimensions: 75 x 155 x 90 mm (D x W x H)

Product weight: 210 g

Weight with packaging: 270 g
