- New

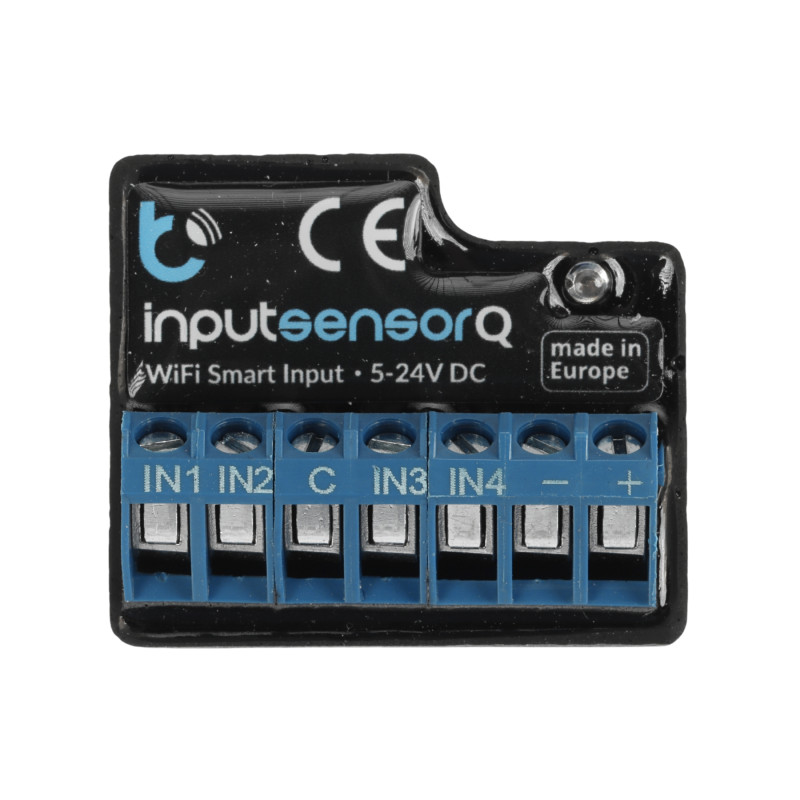

WiFi 4-Channel Input Status Sensor Push Notification Module Event History NO NC BleBox INPUTSENSORQ
zł183.02
Tax included
BleBox INPUTSENSORQ is an advanced, miniature WiFi input module that serves as a key component of a modern smart home system. The device is equipped with four independent potential-free inputs, allowing for the integration of a wide range of traditional wired sensors into a wireless ecosystem. Thanks to this solution, signals from smoke, carbon monoxide, gas, or window and door reed sensors can be instantly transmitted to the cloud and displayed on the user's mobile devices.
The main advantage of the module is its versatility and ease of installation. The device supports NO (normally open) and NC (normally closed) standards, making it compatible with almost every sensor available on the market. A wide power supply range from 5V to 24V DC allows for the use of existing power infrastructure from alarm or intercom systems. The compact dimensions of the housing, made of durable ABS plastic, allow for discreet mounting in electrical boxes or directly next to monitored devices using the included adhesive tape.
The user receives access to extensive analytical functions, including a full event history presented in the form of clear charts. This data can be exported to CSV or XLSX format files at any time for further analysis. The push notification system ensures that no significant change in input status is missed, which significantly increases the safety level of household members. Additionally, μWiFi technology ensures a stable connection and the ability to directly control other BleBox brand modules without the need for a central unit. This is an ideal solution for those looking for a reliable way to modernize their home and introduce it to the Internet of Things (IoT) era.
WiFi 4-Channel Input Status Sensor Push Notification Module Event History NO NC
Model: BleBox INPUTSENSORQ
EAN: 6931240025666 SKU: 931025666
- 4 independent potential-free inputs
- WiFi 2.4GHz wireless communication
- Compatibility with NO and NC type sensors
- Push notifications to mobile devices
- Event history with charts in the application
- Data export capability to CSV and XLSX files
- Wide power supply range 5-24V DC
- μWiFi technology enabling control of other BleBox modules
- Encrypted WPA2-PSK data transmission
- Compact ABS plastic housing
Description
BleBox INPUTSENSORQ is an advanced, miniature WiFi input module that serves as a key component of a modern smart home system. The device is equipped with four independent potential-free inputs, allowing for the integration of a wide range of traditional wired sensors into a wireless ecosystem. Thanks to this solution, signals from smoke, carbon monoxide, gas, or window and door reed sensors can be instantly transmitted to the cloud and displayed on the user's mobile devices.
The main advantage of the module is its versatility and ease of installation. The device supports NO (normally open) and NC (normally closed) standards, making it compatible with almost every sensor available on the market. A wide power supply range from 5V to 24V DC allows for the use of existing power infrastructure from alarm or intercom systems. The compact dimensions of the housing, made of durable ABS plastic, allow for discreet mounting in electrical boxes or directly next to monitored devices using the included adhesive tape.
The user receives access to extensive analytical functions, including a full event history presented in the form of clear charts. This data can be exported to CSV or XLSX format files at any time for further analysis. The push notification system ensures that no significant change in input status is missed, which significantly increases the safety level of household members. Additionally, μWiFi technology ensures a stable connection and the ability to directly control other BleBox brand modules without the need for a central unit. This is an ideal solution for those looking for a reliable way to modernize their home and introduce it to the Internet of Things (IoT) era.
Specification
Compatibility
BleBox
Detection
Status of sensors, reed switches, NO/NC devices
Alarm signaling
Signal to wBox mobile application - 75 dB
Number of inputs
4 potential-free inputs
Number of outputs
None (0)
Connector type
Screw terminals (terminal block)
Frequency range
2.4 GHz Wi-Fi - IEEE 802.11g
Mobile phone access
Free wBox application for Android and iOS systems (Apple App Store / Google Play)
Software and Application
The wBox application is an advanced tool for smart home management that allows full control over the INPUTSENSORQ module. The software allows for monitoring the status of four independent inputs in real-time, offering the user a clear overview of the current situation. A key functionality is the ability to view event history on interactive charts, which allows for the analysis of trends and anomalies in the operation of connected sensors. The application supports creating logical links between devices, which allows for automatic triggering of actions in other BleBox modules upon an input status change. The push notification system is fully configurable, allowing for the assignment of different priorities to individual inputs. Additionally, the software offers a function to export historical data to CSV and XLSX files, which facilitates archiving and reporting. Security is ensured by WPA2-PSK (AEAD) transmission encryption.
Power supply
5 V ... 24 V DC - screw terminals
Power consumption
Maximum 1 W
Selected features
Charts and measurement history, Data export in *.csv / *.xlsx format, Phone notification (Push), Support for μWiFi technology, Remote access from anywhere in the world, Control of other BleBox devices, Two-way communication, Transmission encryption
Housing
Made of high-quality plastic (ABS)
Color
Black
Operating temperature
From -20 °C to 50 °C
Mounting
Adhesive tape (included)
Warranty
2 years
Contents
1x INPUTSENSORQ module
1x Mounting tape
Dimensions, Weight
Product dimensions: 18 x 39 x 33 mm (D x W x H)
Packaging dimensions: 32 x 50 x 45 mm (D x W x H)
Product weight: 24 g
Weight with packaging: 26 g
