- New

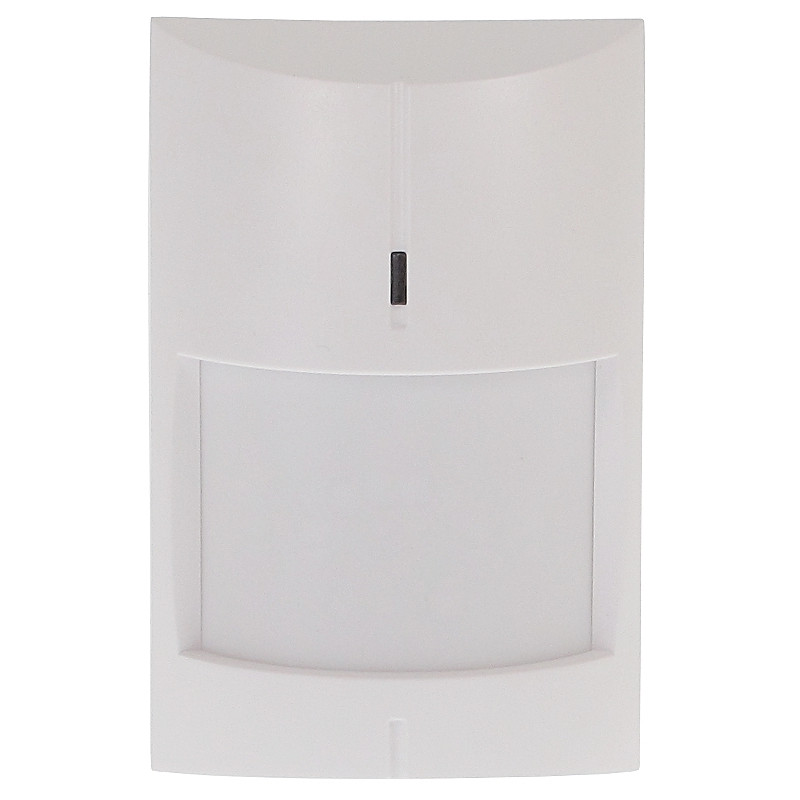

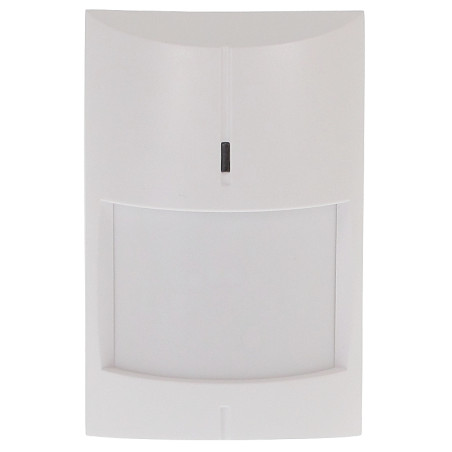

Digital passive infrared PIR indoor motion detector 18m range alarm memory wired alarm system SATEL GRAPHITE
zł150.52
Tax included
SATEL GRAPHITE is a professional digital motion detector using passive infrared (PIR) technology, designed for the highest level of indoor security. The device features an advanced dual pyroelectric sensor which, combined with a modern digital detection algorithm, ensures exceptional precision in intruder detection. As a result, the detector is highly resistant to false alarms, which is crucial in stable security systems.
One of the most important advantages of the GRAPHITE model is the alarm memory function. It allows for quick identification of the device that triggered an alarm, which is invaluable in systems consisting of multiple detectors connected to a single line. The detector offers a wide detection range of up to 18 x 18 meters, allowing for effective protection of even very large office, commercial, or residential spaces using a single mounting point.
The device is equipped with a digital temperature compensation mechanism. This function automatically adjusts the detector's sensitivity to ambient temperature changes, ensuring consistent performance even when the room temperature approaches human body temperature. Installers will appreciate the ease of configuration thanks to smooth sensitivity adjustment via a potentiometer and the ability to remotely control the LED indicator signaling a violation.
The security of the detector itself is ensured by a built-in tamper switch that reacts to any attempt to open the enclosure. The product is characterized by a very low power consumption of 14mA, making it an energy-efficient component of an alarm system. The aesthetic, white housing with compact dimensions ensures that the detector blends discreetly into any interior decor, providing peace of mind and protection at the highest level.
Digital passive infrared PIR indoor motion detector 18m range alarm memory wired alarm system
Model: SATEL GRAPHITE
EAN: 6931240018026 SKU: 931018028
- Next-generation digital signal processing
- High-sensitivity dual element pyroelectric sensor
- Wide detection range 18m x 18m
- Built-in alarm memory function for easy diagnostics
- Digital ambient temperature compensation
- Smooth sensitivity adjustment via potentiometer
- Remote LED indicator on/off control
- Tamper protection against enclosure opening
- Low power consumption and wide operating temperature range
- Product from Polish manufacturer SATEL
Description
SATEL GRAPHITE is a professional digital motion detector using passive infrared (PIR) technology, designed for the highest level of indoor security. The device features an advanced dual pyroelectric sensor which, combined with a modern digital detection algorithm, ensures exceptional precision in intruder detection. As a result, the detector is highly resistant to false alarms, which is crucial in stable security systems.
One of the most important advantages of the GRAPHITE model is the alarm memory function. It allows for quick identification of the device that triggered an alarm, which is invaluable in systems consisting of multiple detectors connected to a single line. The detector offers a wide detection range of up to 18 x 18 meters, allowing for effective protection of even very large office, commercial, or residential spaces using a single mounting point.
The device is equipped with a digital temperature compensation mechanism. This function automatically adjusts the detector's sensitivity to ambient temperature changes, ensuring consistent performance even when the room temperature approaches human body temperature. Installers will appreciate the ease of configuration thanks to smooth sensitivity adjustment via a potentiometer and the ability to remotely control the LED indicator signaling a violation.
The security of the detector itself is ensured by a built-in tamper switch that reacts to any attempt to open the enclosure. The product is characterized by a very low power consumption of 14mA, making it an energy-efficient component of an alarm system. The aesthetic, white housing with compact dimensions ensures that the detector blends discreetly into any interior decor, providing peace of mind and protection at the highest level.
Specification
Application
Indoor - detector designed for operation in enclosed spaces, offices, homes, and industrial facilities.
Pyroelectric sensor
Dual - the use of two detection elements allows for better signal analysis and interference elimination.
Sensor type
Passive infrared (PIR) - reacts to changes in infrared radiation emitted by objects with a temperature different from the surroundings.
Detection range
18 x 18 meters - the coverage area is over 300 square meters at a standard mounting height.
Sensitivity adjustment
Potentiometer - allows for precise adjustment of the detector's trigger threshold to the specifics of the protected room.
Pet immunity
None - the detector is not intended for rooms where pets are left unsupervised.
Violation signaling time
2 seconds - the time the alarm output remains in an active state after motion is detected.
Maximum output load
40 mA / 16 V DC - parameters of the NC (Normally Closed) relay output.
Digital temperature compensation
Yes - an advanced algorithm correcting the device's sensitivity depending on the ambient temperature, which prevents so-called 'dead zones' on hot days.
Power supply
12 V DC (tolerance +/- 15%) / power consumption is a maximum of 14 mA, which allows for connecting multiple detectors to a single power supply.
Selected features
Alarm memory - a function for memorizing the alarm state, signaled by a flashing LED after an event occurs.
Detectable motion speed
0.3 ... 3 m/s - wide range of motion sensitivity, from slow creeping to fast running.
Operating temperature
From -30 °C to 55 °C - the device is adapted for operation in difficult thermal conditions, e.g., in unheated warehouses.
Warranty
2 years (24 months) provided by the manufacturer's authorized service.
Contents
1x SATEL GRAPHITE PIR detector
1x User manual in Polish
1x Set of mounting screws
Dimensions, Weight
Product dimensions: 48 x 62 x 96 mm (D x W x H)
Packaging dimensions: 55 x 135 x 65 mm (D x W x H)
Product weight: 70 g
Weight with packaging: 125 g
