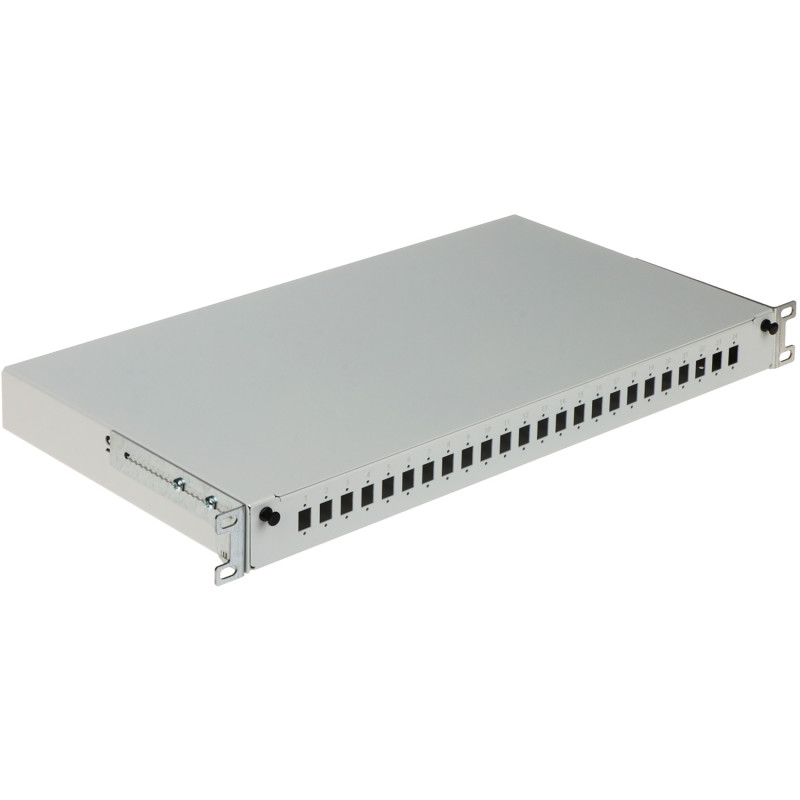

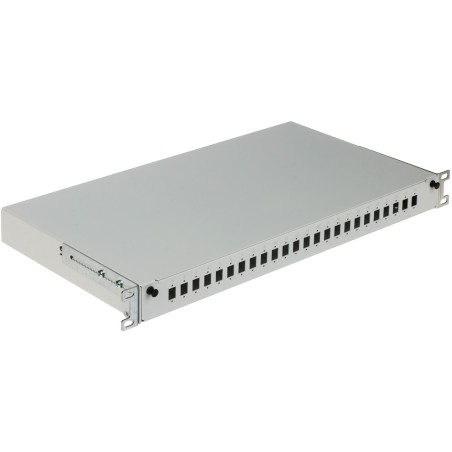

19 inch 1U 24 port SC Simplex LC Duplex fiber optic patch panel sliding drawer cable organizer grey STALFLEX FSP-19-1U-24S-SC-G
zł164.83
Tax included
The STALFLEX FSP-19-1U-24S-SC-G fiber optic patch panel is a professional solution designed for managing fiber optics in standard 19-inch Rack cabinets. The device features a 1U height, allowing for optimal space utilization inside a server or telecommunications cabinet. The main advantage of this model is the sliding drawer, which significantly facilitates access to the interior of the patch panel without the need to remove the entire device from the mounting rails. This makes installation work, fiber splicing, and subsequent maintenance much faster and more convenient for the installer.
The construction is made of high-quality steel, which provides rigidity and mechanical protection for delicate fiber optic splices. The front panel has 24 holes adapted for mounting SC Simplex or LC Duplex adapters, providing a total capacity of up to 48 fibers when using LC connectors. The patch panel is powder-coated in light grey (RAL 7035), making it aesthetically compatible with most standard Rack cabinets. At the rear of the housing, there are four cable glands that allow for flexible routing of trunk cables from various directions, while ensuring the appropriate fiber bend radius.
Product advantages:
- High-quality steel construction ensuring longevity.
- Sliding drawer on rails for easy servicing.
- Versatility: support for SC Simplex and LC Duplex standards.
- Complete mounting kit allowing for immediate installation.
- Aesthetic finish resistant to scratches.
- Optimal cable organization thanks to dedicated glands.
- 1U standard saving space in the cabinet.
- Splice safety thanks to a solid housing.
- Ease of managing a large number of connections (up to 24/48 ports).
- Polish production ensuring high repeatability and quality standards.
19 inch 1U 24 port SC Simplex LC Duplex fiber optic patch panel sliding drawer cable organizer grey
Model: STALFLEX FSP-19-1U-24S-SC-G
EAN: 6931240045350 SKU: 931045353
- Housing type: 1U Rack 19"
- Sliding drawer for easy access to splices
- 24 SC simplex ports / 24 LC duplex ports
- 4 cable glands at the rear
- Solid powder-coated steel construction
- Grey color RAL 7035
- Adapter hole dimensions: 9.5 x 13 mm
- Polish product
Description
The STALFLEX FSP-19-1U-24S-SC-G fiber optic patch panel is a professional solution designed for managing fiber optics in standard 19-inch Rack cabinets. The device features a 1U height, allowing for optimal space utilization inside a server or telecommunications cabinet. The main advantage of this model is the sliding drawer, which significantly facilitates access to the interior of the patch panel without the need to remove the entire device from the mounting rails. This makes installation work, fiber splicing, and subsequent maintenance much faster and more convenient for the installer.
The construction is made of high-quality steel, which provides rigidity and mechanical protection for delicate fiber optic splices. The front panel has 24 holes adapted for mounting SC Simplex or LC Duplex adapters, providing a total capacity of up to 48 fibers when using LC connectors. The patch panel is powder-coated in light grey (RAL 7035), making it aesthetically compatible with most standard Rack cabinets. At the rear of the housing, there are four cable glands that allow for flexible routing of trunk cables from various directions, while ensuring the appropriate fiber bend radius.
Product advantages:
- High-quality steel construction ensuring longevity.
- Sliding drawer on rails for easy servicing.
- Versatility: support for SC Simplex and LC Duplex standards.
- Complete mounting kit allowing for immediate installation.
- Aesthetic finish resistant to scratches.
- Optimal cable organization thanks to dedicated glands.
- 1U standard saving space in the cabinet.
- Splice safety thanks to a solid housing.
- Ease of managing a large number of connections (up to 24/48 ports).
- Polish production ensuring high repeatability and quality standards.
Specification
Mounting standard
19 inch Rack - universal mounting system used in telecommunications and IT
Working height
1U (44.45 mm) - standard height occupied in a server cabinet
Number of ports
24 mounting holes for fiber optic adapters
Connector compatibility
SC Simplex, LC Duplex, E2000 Simplex - holes with dimensions 9.5 x 13 mm
Housing type
Drawer type (sliding) on rails - provides full access to splice trays without disassembly
Material
Cold-rolled steel with high mechanical strength
Finish
Powder coating, matte structure, resistant to corrosion and mechanical damage
Color scheme
Light grey RAL 7035 - industrial standard for network equipment
Cable management
4 inlet holes at the rear of the housing allowing for the introduction of cables of various diameters
Front panel
Integrated, with port numbering facilitating connection identification and patching
Housing depth
260 mm - allows for free arrangement of fiber slack and splice cassettes inside
Product weight
2.33 kg - solid construction preventing deformation under the weight of cables
Application
Construction of distribution points in optical networks, server rooms, and data centers
Technical advantages
Possibility to mount up to 2 splice cassettes, mounting screws included, cable glands included
Software and Interface
Passive device. The fiber management system is based on the physical organization of the space inside the drawer. The absence of active elements eliminates the need for power supply and software configuration. The design supports optimal bend radii for G.652 and G.657 fibers, which minimizes insertion and reflection loss throughout the transmission path. The user manages the network by physically patching patchcords on the front panel, which ensures reliability and prevents system failures.
Contents
1x FSP-19-1U-24S-SC-G fiber optic patch panel
1x Set of M6 Rack mounting screws with cage nuts
4x PG cable gland for secure cable entry
1x Set of cable ties for fiber organization
Dimensions, Weight
Product dimensions: 260 x 484 x 45 mm (D x W x H)
Packaging dimensions: 360 x 520 x 60 mm (D x W x H)
Product weight: 2330 g
Weight with packaging: 2760 g
