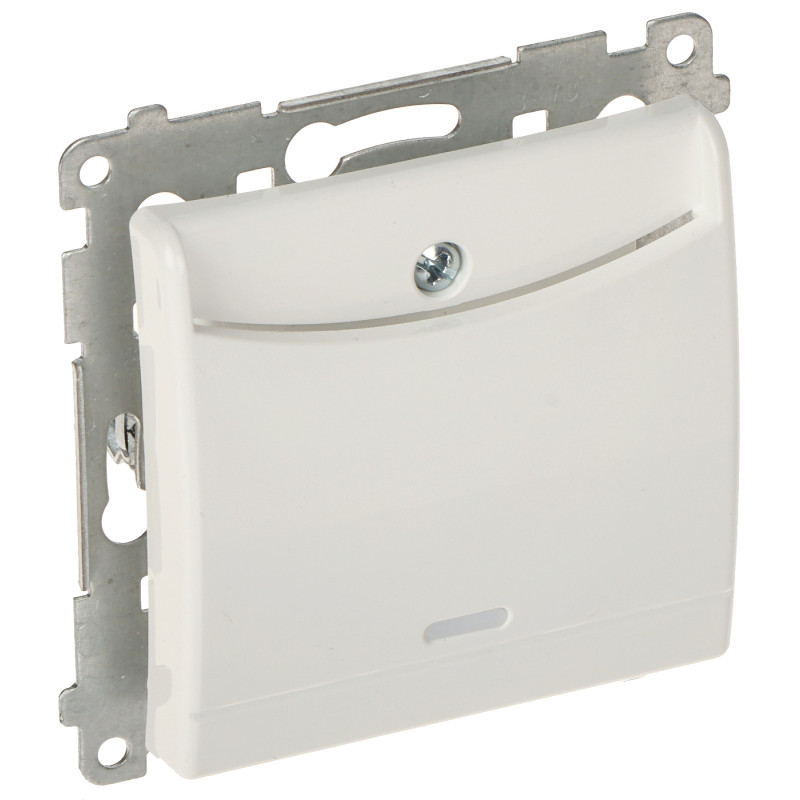

Single pole hotel switch with LED backlight 230V 10A white flush-mounted electrical equipment KONTAKT Simon DWH1.01/11-SIMON54
zł182.58
Tax included
The single pole hotel switch is an advanced electrical installation component that is an essential piece of equipment for modern hotel rooms, guesthouses, and rental apartments. The product comes from the esteemed Simon 54 Premium line, which combines technical reliability with elegant design. The main task of this device is intelligent electrical energy management in the room – power is activated only after inserting a dedicated hotel card, which allows for significant savings in facility operating costs by eliminating unnecessary power consumption during guests' absence.
Product advantages:
- Energy efficiency: Automatic disconnection of electrical circuits after removing the hotel card prevents leaving lighting or air conditioning on.
- High aesthetics: Classic white color (RAL 9003) with a glossy finish fits perfectly into various interior arrangements, from minimalist to luxurious.
- Comfort of use: Integrated blue LED backlight serves as an orientation function, allowing guests to easily find the reader in total darkness.
- Durability and safety: Made of halogen-free polycarbonate (PC) guarantees resistance to mechanical damage, scratches, and UV radiation, which prevents material yellowing.
- Universal mounting: The design allows for flush installation using standard claws or screws, which ensures stability in the electrical box.
- Full compatibility: The device is dedicated to work with Simon 54 Premium series frames, which allows for the creation of aesthetic multiple sets with sockets and other switches.
The switch supports a rated current of up to 10A for resistive loads, making it sufficient to control most standard lighting circuits in guest rooms. Thanks to solid cable terminals, the electrical connection is secure and durable, which minimizes the risk of failure and the need for frequent maintenance. By choosing KONTAKT Simon brand equipment, you are choosing a product from a Polish manufacturer with an established market position, which is a guarantee of the highest quality and compliance with European safety standards.
Single pole hotel switch with LED backlight 230V 10A white flush-mounted electrical equipment
Model: KONTAKT Simon DWH1.01/11-SIMON54
EAN: 6931240093764 SKU: 931093761
- Single pole hotel switch (bistable)
- Dedicated to Simon 54 Premium series frames
- Built-in blue LED backlight
- Rated current 10A (resistive) / 2A (inductive)
- Made of high-quality halogen-free PC plastic
- Flush mounting with claws or screws
- Ingress protection class IP20
- White color (RAL 9003)
Description
The single pole hotel switch is an advanced electrical installation component that is an essential piece of equipment for modern hotel rooms, guesthouses, and rental apartments. The product comes from the esteemed Simon 54 Premium line, which combines technical reliability with elegant design. The main task of this device is intelligent electrical energy management in the room – power is activated only after inserting a dedicated hotel card, which allows for significant savings in facility operating costs by eliminating unnecessary power consumption during guests' absence.
Product advantages:
- Energy efficiency: Automatic disconnection of electrical circuits after removing the hotel card prevents leaving lighting or air conditioning on.
- High aesthetics: Classic white color (RAL 9003) with a glossy finish fits perfectly into various interior arrangements, from minimalist to luxurious.
- Comfort of use: Integrated blue LED backlight serves as an orientation function, allowing guests to easily find the reader in total darkness.
- Durability and safety: Made of halogen-free polycarbonate (PC) guarantees resistance to mechanical damage, scratches, and UV radiation, which prevents material yellowing.
- Universal mounting: The design allows for flush installation using standard claws or screws, which ensures stability in the electrical box.
- Full compatibility: The device is dedicated to work with Simon 54 Premium series frames, which allows for the creation of aesthetic multiple sets with sockets and other switches.
The switch supports a rated current of up to 10A for resistive loads, making it sufficient to control most standard lighting circuits in guest rooms. Thanks to solid cable terminals, the electrical connection is secure and durable, which minimizes the risk of failure and the need for frequent maintenance. By choosing KONTAKT Simon brand equipment, you are choosing a product from a Polish manufacturer with an established market position, which is a guarantee of the highest quality and compliance with European safety standards.
Specification
Device type
Single pole hotel switch (bistable)
Rated voltage
230 V AC (alternating current)
Rated current
10 A (resistive load), 2 A (inductive load)
Connector type
Plug, screw cable terminal
Application
Flush-mounted installations, Simon 54 product series, dedicated to Premium frames
Backlight
Blue LED diode (orientation function)
Mounting
Mounting in a box using claws or screws
Ingress protection class
IP20 (protection against solid objects > 12.5 mm)
Housing
Halogen-free plastic, Polycarbonate (PC)
Color
White (RAL 9003), glossy surface
Mounting depth
26 mm
External dimensions
75 x 75 x 41 mm
Manufacturer / Brand
KONTAKT Simon
Warranty
2 years (24 months)
Logic and interface
The device uses a mechanical-electronic hotel card presence detection system. The control logic is based on closing the main circuit at the moment the card is fully inserted into the slot, which is immediately signaled by a change in the LED backlight state. The physical interface has been designed to ensure smooth cooperation with standard proximity and magnetic cards with dimensions compliant with the ISO standard. The system does not require external programming, which ensures high reliability and resistance to electromagnetic interference. The slot mechanism has a contact self-cleaning system with every card use, which extends the device's service life under intensive hotel operating conditions.
Contents
1x Hotel switch DWH1.01/11-SIMON54
1x Operating and installation manual
Dimensions, Weight
Product dimensions: 41 x 75 x 75 mm (Depth x Width x Height)
Packaging dimensions: 60 x 148 x 95 mm (Depth x Width x Height)
Product weight: 48 g
Weight with packaging: 72 g
