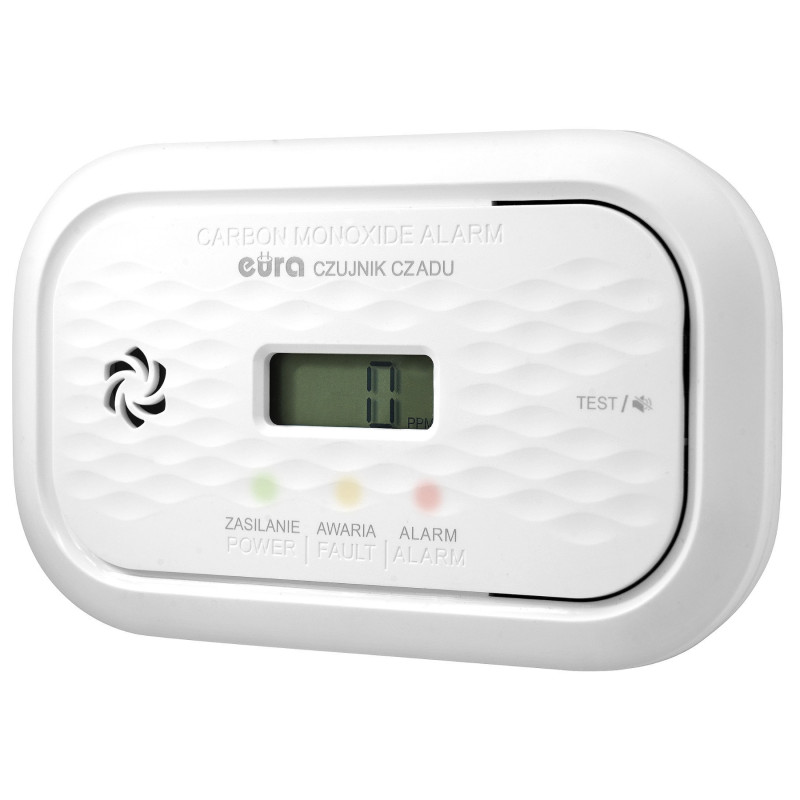

Carbon monoxide detector with LCD display battery powered CNBOP certified electrochemical sensor 10 years of protection EL HOME
zł158.39
Tax included
The EL HOME CD-18A2V2300/B carbon monoxide detector is an advanced safety device designed to continuously monitor the presence of carbon monoxide (CO) in the air. Carbon monoxide, commonly known as CO, is an odorless, colorless, and highly toxic gas, making it extremely dangerous to the health and life of household members. Thanks to the use of a high-quality electrochemical sensor with an impressive lifespan of up to 10 years, the device guarantees long-term and stable protection.
The main advantage of this model is the built-in LCD display, which informs about the current CO concentration in the room in real time, allowing for a quick assessment of the situation even before the full alarm is activated. In case of detecting a dangerous gas level, the sensor triggers a loud 85 dB audible alarm and optical signaling in the form of a flashing LED. The device holds the CNBOP-PiB certificate, which confirms its compliance with rigorous safety standards and guarantees the highest quality of workmanship.
Battery power (2x AA) makes the sensor completely independent of the electrical grid, which is crucial in emergency situations or during power outages. Compact dimensions and an aesthetic housing allow for discreet installation in any room prone to CO emissions, such as kitchens, bathrooms with gas heaters, or rooms with a fireplace. Additional features, such as a test button, low battery signaling, and sensor failure notification, significantly increase comfort and confidence in use. By choosing the EL HOME CD-18A2V2300/B, you are investing in the peace of mind and safety of your family for many years.
Carbon monoxide detector with LCD display battery powered CNBOP certified electrochemical sensor 10 years of protection
Model: EL HOME CD-18A2V2300/B
EAN: 6931240064672 SKU: 931064670
- High-quality electrochemical sensor with a 10-year lifespan
- Clear LCD display showing CO concentration in real time
- Loud audible alarm (85 dB) and LED optical signaling
- CNBOP-PiB certificate confirming the highest safety standards
- Battery powered (2x AA) ensuring operation during power outages
- Compliance with the rigorous PN-EN 50291-1:2018-06 standard
- Self-diagnostic function informing about failure or low battery status
- Test/Mute button for regular device performance checks
Description
The EL HOME CD-18A2V2300/B carbon monoxide detector is an advanced safety device designed to continuously monitor the presence of carbon monoxide (CO) in the air. Carbon monoxide, commonly known as CO, is an odorless, colorless, and highly toxic gas, making it extremely dangerous to the health and life of household members. Thanks to the use of a high-quality electrochemical sensor with an impressive lifespan of up to 10 years, the device guarantees long-term and stable protection.
The main advantage of this model is the built-in LCD display, which informs about the current CO concentration in the room in real time, allowing for a quick assessment of the situation even before the full alarm is activated. In case of detecting a dangerous gas level, the sensor triggers a loud 85 dB audible alarm and optical signaling in the form of a flashing LED. The device holds the CNBOP-PiB certificate, which confirms its compliance with rigorous safety standards and guarantees the highest quality of workmanship.
Battery power (2x AA) makes the sensor completely independent of the electrical grid, which is crucial in emergency situations or during power outages. Compact dimensions and an aesthetic housing allow for discreet installation in any room prone to CO emissions, such as kitchens, bathrooms with gas heaters, or rooms with a fireplace. Additional features, such as a test button, low battery signaling, and sensor failure notification, significantly increase comfort and confidence in use. By choosing the EL HOME CD-18A2V2300/B, you are investing in the peace of mind and safety of your family for many years.
Specification
Detection
Carbon monoxide (CO) - an odorless and colorless gas, extremely dangerous to humans.
Sensor type
Electrochemical with high sensitivity and measurement stability.
Sensor lifespan
10 years from the moment of device activation (powering).
Alarm signaling
Acoustic (buzzer at 85 dB / 3 m) and optical (flashing red LED).
Display
LCD panel presenting CO concentration in the range of 30 - 999 ppm and system messages.
Alarm thresholds
Compliant with the standard: 50 ppm (60-90 min), 100 ppm (10-40 min), 300 ppm (< 3 min). Signaling above 30 ppm.
Power supply
3V DC - 2 alkaline 1.5V AA (LR6) batteries included in the set.
Power consumption
Standby mode: < 20 µA; Alarm mode: < 50 mA.
Operating conditions
Temperature: 0 °C ... 40 °C; Humidity: 10 % ... 90 % RH (non-condensing).
Compliance with standards
PN-EN 50291-1:2018-06+AC:2021-03 - European standard for domestic CO detectors.
Certification
CNBOP-PiB certificate (Scientific and Research Centre for Fire Protection).
Additional functions
Test mode, low battery alarm, sensor failure signaling (End-of-life).
Ingress protection class
IP20 - protection against access to hazardous parts with a finger.
Software and interface
The device has a built-in microprocessor controlling an advanced gas detection algorithm. The user interface is based on a clear LCD display that presents not only the gas level but also messages about the device status (e.g., 'Err' for error, 'Lb' for low battery). The system automatically calibrates the sensor and performs periodic performance tests of electronic circuits, which eliminates the need for manual intervention beyond periodic checking with the Test button. The software optimizes energy consumption, allowing for long operation on a single set of batteries.
Contents
1x CD-18A2V2300/B sensor
2x AA battery
1x Set of mounting plugs
1x User manual in Polish
Dimensions, Weight
Product dimensions: 34 x 120 x 73 mm (D x W x H)
Packaging dimensions: 50 x 200 x 180 mm (D x W x H)
Product weight: 105 g
Weight with packaging: 216 g
