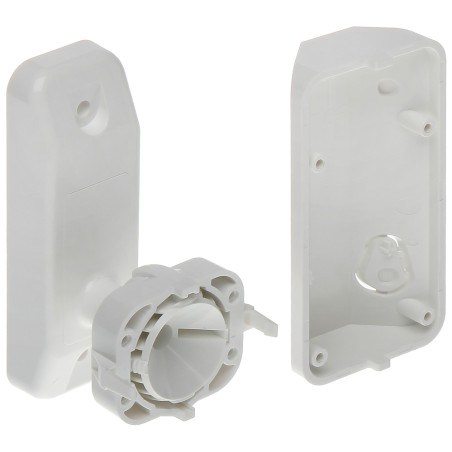

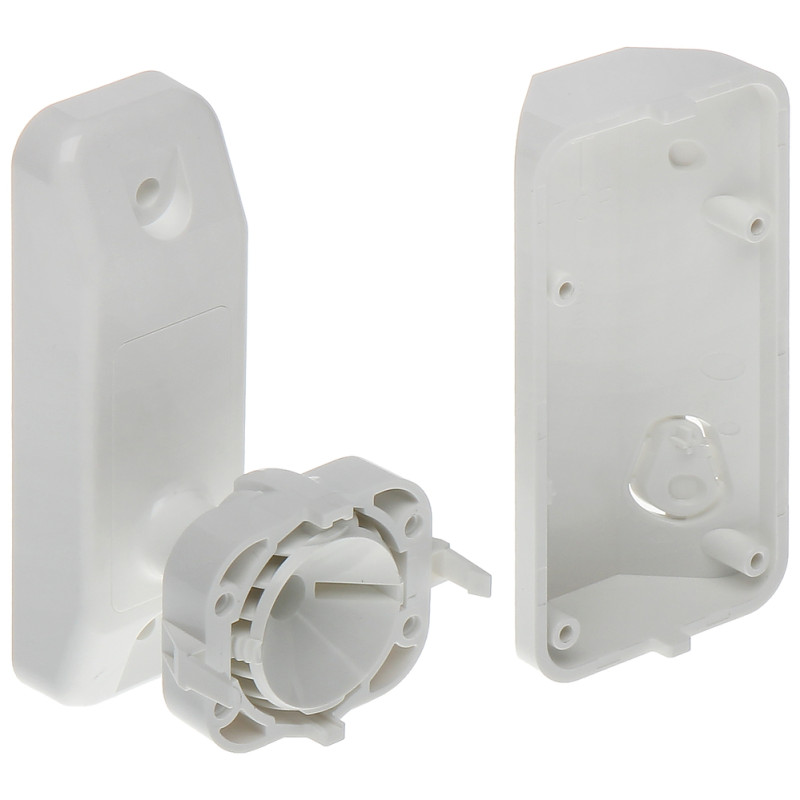

Adjustable ball and angle mount for OPAL OPAL-PLUS AOD-210 outdoor motion detectors white mounting kit SATEL BRACKET-C
zł141.04
Tax included
The BRACKET-C mount is a professional mounting kit dedicated to motion detectors from the OPAL, OPAL Plus and AOD-210 series. It is an ideal solution for alarm system installers looking for reliable and flexible ways to mount detection devices in difficult outdoor conditions. The kit consists of two types of mounts: angle and ball, which allows for optimal adjustment of the detector's viewing angle to the protected area. Thanks to the use of high-quality materials, the mounts are characterized by high resistance to variable weather conditions and mechanical damage.
The main advantage of the ball mount is the possibility of smooth adjustment in two planes: tilt up to 60 degrees and rotation up to 90 degrees. This allows for extremely precise aiming of the detector beam, which is crucial for avoiding false alarms and ensuring maximum detection efficiency. In turn, the angle mount allows the detector to be mounted at a fixed angle of 45 degrees relative to the mounting surface, which works perfectly in building corners or on poles.
System security is a priority, which is why both mounts are equipped with advanced tamper protection. A special contact reacts to any attempt to detach the mount from the surface, which immediately generates an alarm signal in the control panel. Installation is quick and intuitive, and the accessories included in the kit allow for installation on flat walls, rectangular poles and internal corners. By choosing original Satel brand accessories, you are guaranteed full compatibility and longevity of the entire security system. The product was entirely designed and manufactured in Poland, which guarantees the highest standards of workmanship and attention to technical details.
Adjustable ball and angle mount for OPAL OPAL-PLUS AOD-210 outdoor motion detectors white mounting kit
Model: SATEL BRACKET-C
EAN: 6931240079935 SKU: 931079935
- Complete set of two mounts: ball and angle
- Full compatibility with OPAL, OPAL Plus and AOD-210 detectors
- Built-in tamper protection (contact for detachment from the surface)
- Wide range of tilt (60°) and swivel (90°) adjustment
- Suitable for wall, pole and corner mounting
- High resistance to weather conditions and UV radiation
- Product from Polish manufacturer SATEL
- Easy and quick installation thanks to included accessories
Description
The BRACKET-C mount is a professional mounting kit dedicated to motion detectors from the OPAL, OPAL Plus and AOD-210 series. It is an ideal solution for alarm system installers looking for reliable and flexible ways to mount detection devices in difficult outdoor conditions. The kit consists of two types of mounts: angle and ball, which allows for optimal adjustment of the detector's viewing angle to the protected area. Thanks to the use of high-quality materials, the mounts are characterized by high resistance to variable weather conditions and mechanical damage.
The main advantage of the ball mount is the possibility of smooth adjustment in two planes: tilt up to 60 degrees and rotation up to 90 degrees. This allows for extremely precise aiming of the detector beam, which is crucial for avoiding false alarms and ensuring maximum detection efficiency. In turn, the angle mount allows the detector to be mounted at a fixed angle of 45 degrees relative to the mounting surface, which works perfectly in building corners or on poles.
System security is a priority, which is why both mounts are equipped with advanced tamper protection. A special contact reacts to any attempt to detach the mount from the surface, which immediately generates an alarm signal in the control panel. Installation is quick and intuitive, and the accessories included in the kit allow for installation on flat walls, rectangular poles and internal corners. By choosing original Satel brand accessories, you are guaranteed full compatibility and longevity of the entire security system. The product was entirely designed and manufactured in Poland, which guarantees the highest standards of workmanship and attention to technical details.
Specification
Purpose
The BRACKET-C mount kit has been designed specifically for use with the OPAL and OPAL Plus series outdoor dual detectors and the AOD-210 wireless detectors.
Kit contents
The package contains a complete mounting kit including a ball mount, an angle mount, and the necessary installation elements and tamper contacts.
Angle mount - Adjustment
Provides a fixed rotation angle adjustment of 45 degrees, which facilitates installation in specific locations requiring lateral orientation of the detector.
Angle mount - Mounting
Adapted for installation on flat surfaces, such as building walls, rectangular fence posts, and in internal corners of two walls.
Angle mount - Tamper
Equipped with a dedicated tamper detection mechanism that activates upon an attempt to forcibly detach the device from the surface.
Angle mount - Weight
The lightweight construction, weighing only 36 grams, does not burden the mounting structure while maintaining full stability of the device.
Ball mount - Tilt adjustment
Offers a wide range of vertical adjustment up to 60 degrees, allowing the detector to be mounted at various heights while maintaining an optimal field of view.
Ball mount - Rotation adjustment
Allows horizontal rotation of the detector in a range of up to 90 degrees (45 degrees in each direction), providing full freedom in monitoring the area.
Ball mount - Mounting
Dedicated for mounting on flat vertical surfaces, ensuring an aesthetic appearance and solid support for the detection device.
Ball mount - Tamper
Features a built-in tamper contact protecting against unauthorized removal, fully integrated with the alarm system.
Ball mount - Weight
A more robust construction weighing 64 grams, ensuring stability even during strong wind gusts and difficult weather conditions.
Compatibility
Full compatibility with SATEL devices: OPAL, OPAL-PLUS, AOD-210. Can be used in wired and wireless ABAX / ABAX2 systems.
Operating conditions
Product adapted for operation in a wide temperature range, resistant to UV radiation and moisture, which is essential in professional outdoor installations.
Warranty
The manufacturer provides a 2-year warranty period, which confirms the high quality of workmanship and reliability of all mechanical components of the kit.
Contents
1x Ball mount
1x Angle mount
1x Set of mounting screws
1x Installation manual
Dimensions, Weight
Product dimensions: 60 x 50 x 80 mm (D x W x H)
Packaging dimensions: 40 x 170 x 135 mm (D x W x H)
Product weight: 100 g
Weight with packaging: 158 g
