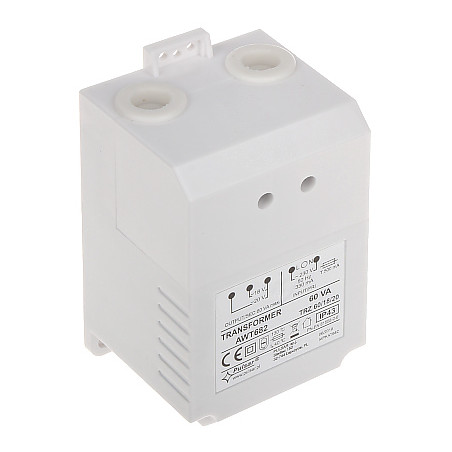

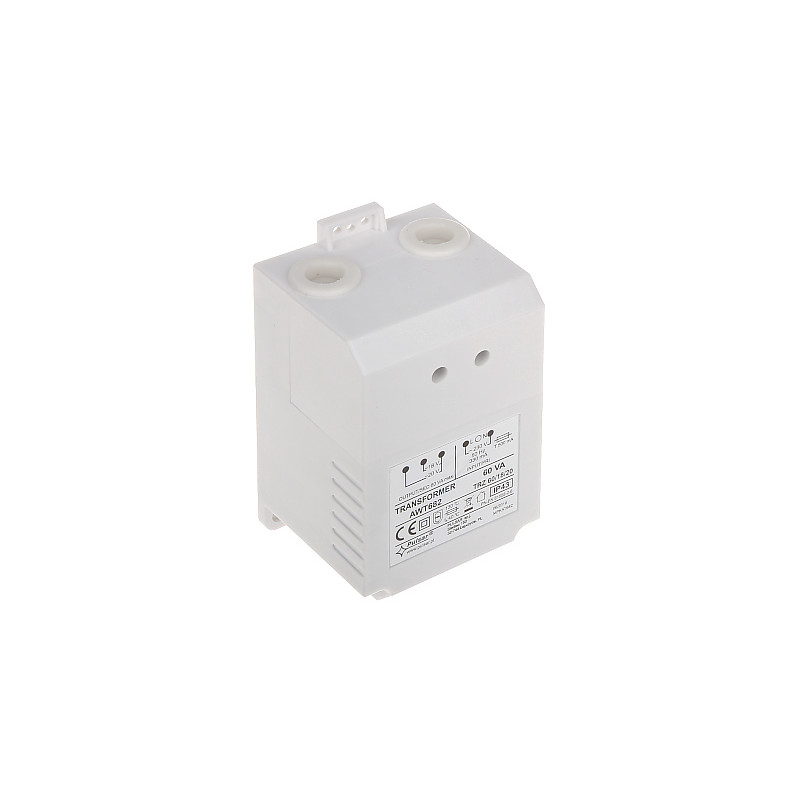

18V 20V 60VA AC Transformer Power Supply IP43 for Alarm and Automation Systems PULSAR AWT-682
zł167.97
Tax included
The Pulsar AWT-682 transformer power supply is a professional solution dedicated to powering systems that require a stable AC voltage. This device is widely used in modern security systems, including intrusion and hold-up alarm systems (SSWiN), access control systems, and general industrial and home automation. The design, based on a robust transformer, guarantees not only longevity but also high resistance to surges and interference occurring in the power grid.
The main advantage of the AWT-682 model is the ability to select the output voltage between 18V AC and 20V AC, which allows for precise adjustment of power parameters to the requirements of a specific end device, such as Satel Integra alarm control panels or communication modules. The IP43-rated housing provides protection against the ingress of solid objects larger than 1mm and against water spray, allowing for installation in areas with increased humidity.
When designing the installation, it should be remembered that for continuous operation (24 hours a day), it is recommended that the current consumption does not exceed 80% of the maximum value. This is crucial for maintaining optimal operating temperature and avoiding component overheating. The Pulsar AWT-682 power supply is a guarantee of stability and safety for your alarm system. Thanks to its compact dimensions, installation is quick and trouble-free, and solid screw terminals ensure a durable wire connection. The device meets rigorous safety standards, as confirmed by the CE declaration of conformity.
18V 20V 60VA AC Transformer Power Supply IP43 for Alarm and Automation Systems
Model: PULSAR AWT-682
EAN: 6931240059876 SKU: 931059876
- 60VA transformer power supply
- Two voltage outputs: 18V AC and 20V AC
- High current efficiency up to 3.3A
- IP43 protection class against moisture
- Dedicated to alarm and automation systems
- Robust plastic housing
- Built-in thermal protection
- Full galvanic isolation of circuits
Description
The Pulsar AWT-682 transformer power supply is a professional solution dedicated to powering systems that require a stable AC voltage. This device is widely used in modern security systems, including intrusion and hold-up alarm systems (SSWiN), access control systems, and general industrial and home automation. The design, based on a robust transformer, guarantees not only longevity but also high resistance to surges and interference occurring in the power grid.
The main advantage of the AWT-682 model is the ability to select the output voltage between 18V AC and 20V AC, which allows for precise adjustment of power parameters to the requirements of a specific end device, such as Satel Integra alarm control panels or communication modules. The IP43-rated housing provides protection against the ingress of solid objects larger than 1mm and against water spray, allowing for installation in areas with increased humidity.
When designing the installation, it should be remembered that for continuous operation (24 hours a day), it is recommended that the current consumption does not exceed 80% of the maximum value. This is crucial for maintaining optimal operating temperature and avoiding component overheating. The Pulsar AWT-682 power supply is a guarantee of stability and safety for your alarm system. Thanks to its compact dimensions, installation is quick and trouble-free, and solid screw terminals ensure a durable wire connection. The device meets rigorous safety standards, as confirmed by the CE declaration of conformity.
Specification
Power supply type
Transformer-based - based on a classic copper winding ensuring full galvanic isolation between the 230V mains and the low-voltage circuit
Supply voltage
230 V AC - standard mains voltage used in Poland and Europe, permissible fluctuations in accordance with energy standards
Frequency range
50 Hz - rated frequency for European power grids
Output voltage
18 V AC or 20 V AC - two taps on the secondary winding allowing for the selection of the appropriate voltage depending on the connection to the terminals
Current efficiency at 18V
3.3 A - maximum output current available at 18V AC, allowing for powering extensive systems
Current efficiency at 20V
3.0 A - maximum output current available at 20V AC, ideal for devices with higher voltage requirements
Power supply capacity
60 VA - total apparent power of the device, determining the ability to power resistive and inductive loads
Environmental class
II - device intended for indoor use in conditions of moderate temperature and humidity
Protection class
IP43 - protection against foreign objects with a diameter >1mm and protection against water spray at an angle of up to 60 degrees from the vertical
Application
Alarm systems (SSWiN), building automation, access control systems, low-voltage LED AC lighting installations
Number of outputs
2 pieces - independent voltage taps allowing for flexible wiring configuration
Protections
Built-in transformer thermal protection protecting against the effects of overload or short circuit
Operating conditions
Required to ensure free air circulation around the housing to dissipate heat generated during operation; continuous current should not exceed 80% of the maximum current
Warranty
2 years (24 months) provided by the manufacturer's authorized service
Contents
1x Pulsar AWT-682 transformer power supply
1x Set of mounting screws
1x User manual in Polish
Dimensions, Weight
Product dimensions: 65 x 124 x 75 mm (D x W x H)
Package dimensions: 75 x 140 x 80 mm (D x W x H)
Product weight: 1290 g
Weight with packaging: 1344 g
