- New

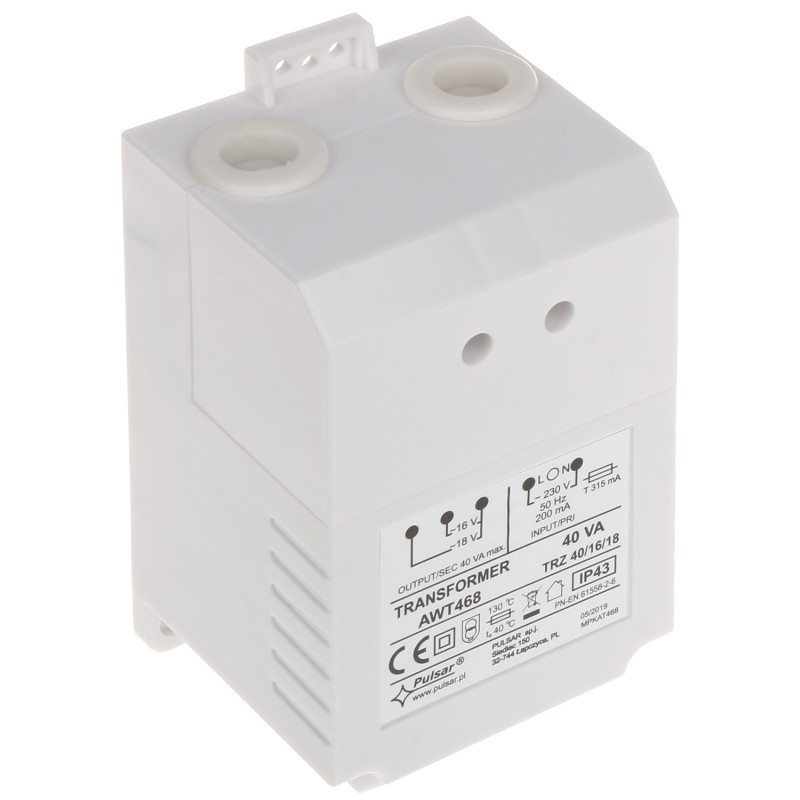

AC 16V 18V 40VA Transformer Power Supply for Alarm Systems and Automation IP43 PULSAR AWT-468
zł148.49
Tax included
The Pulsar AWT-468 transformer power supply is a professional power device designed for systems requiring stable alternating current (AC) voltage. It is an ideal solution for alarm installations (SSWiN), access control systems, and general building automation. Thanks to its robust design based on a classic transformer, the device is characterized by exceptional reliability and high resistance to interference in the power grid, which is crucial for the safety of protection systems.
One of the main advantages of the AWT-468 model is the versatility of output configuration. The user has two voltage taps at their disposal: 16V AC and 18V AC. This allows for precise adjustment of power parameters to the requirements of a specific alarm control panel or controller. The rated power of the device is 40VA, which ensures stable operation even with extensive sets of sensors and expansion modules. The housing, made of high-quality materials, provides an IP43 protection rating, which protects components against dust and water spray, allowing for installation in various indoor conditions.
When planning the installation, it is important to remember a key operational rule: for continuous operation (24 hours a day), the current consumption by receivers should not exceed 80% of the power supply's maximum current. This guarantees optimal thermal conditions and significantly extends the life of the device. The power supply also requires free air circulation at the installation site to avoid overheating the transformer under heavy load. The product is fully compliant with European safety standards, as confirmed by the attached CE declaration. By choosing a Pulsar power supply, you are opting for the proven quality of a Polish manufacturer that has enjoyed the trust of installers for years.
AC 16V 18V 40VA Transformer Power Supply for Alarm Systems and Automation IP43
Model: PULSAR AWT-468
EAN: 6931240054291 SKU: 931054291
- Universal 16V or 18V AC output voltage
- High rated power 40VA
- Robust transformer design
- IP43 enclosure protection rating
- Designed for continuous operation in alarm systems
- Compliance with CE safety standards
- Easy installation and cable connection
- High resistance to mains interference
Description
The Pulsar AWT-468 transformer power supply is a professional power device designed for systems requiring stable alternating current (AC) voltage. It is an ideal solution for alarm installations (SSWiN), access control systems, and general building automation. Thanks to its robust design based on a classic transformer, the device is characterized by exceptional reliability and high resistance to interference in the power grid, which is crucial for the safety of protection systems.
One of the main advantages of the AWT-468 model is the versatility of output configuration. The user has two voltage taps at their disposal: 16V AC and 18V AC. This allows for precise adjustment of power parameters to the requirements of a specific alarm control panel or controller. The rated power of the device is 40VA, which ensures stable operation even with extensive sets of sensors and expansion modules. The housing, made of high-quality materials, provides an IP43 protection rating, which protects components against dust and water spray, allowing for installation in various indoor conditions.
When planning the installation, it is important to remember a key operational rule: for continuous operation (24 hours a day), the current consumption by receivers should not exceed 80% of the power supply's maximum current. This guarantees optimal thermal conditions and significantly extends the life of the device. The power supply also requires free air circulation at the installation site to avoid overheating the transformer under heavy load. The product is fully compliant with European safety standards, as confirmed by the attached CE declaration. By choosing a Pulsar power supply, you are opting for the proven quality of a Polish manufacturer that has enjoyed the trust of installers for years.
Specification
Power supply type
Transformer-based - based on a copper winding providing galvanic isolation and high resistance to surges.
Supply voltage
230 V AC - standard mains voltage used in domestic and industrial installations.
Frequency range
50 Hz - rated frequency of alternating current.
Output voltage (taps)
16 V AC or 18 V AC - selectable voltage depending on the connection to the appropriate transformer terminals.
Power supply current efficiency
2.2 A at 16 V AC; 2.0 A at 18 V AC. Maximum output current for connected receivers.
Power supply power
40 VA - apparent power defining the ability to power inductive and resistive devices.
Ingress protection class
IP43 - protection against solid objects larger than 1mm and protection against water spraying at any angle up to 60 degrees from the vertical.
Environmental class
II - device intended for indoor use under standard humidity conditions.
Purpose and application
Powering alarm systems (SSWiN), Satel, DSC, Jablotron alarm control panels, home automation systems, and low-voltage AC LED lighting installations.
Number of outputs
2 pieces (screw terminals under the housing cover).
Protections
Built-in thermal protection of the transformer to prevent damage due to overheating.
Continuous operation conditions
Recommended load not exceeding 80% of rated current for 24/7 operation to maintain optimal temperature.
Housing construction
High mechanical strength plastic, grey color, surface mounting.
Manufacturer warranty
2 years (24 months) from the date of purchase.
Contents
1x AWT-468 transformer power supply
1x Set of mounting screws
1x User manual in Polish
Dimensions, Weight
Product dimensions: 65 x 124 x 75 mm (D x W x H)
Packaging dimensions: 75 x 140 x 80 mm (D x W x H)
Product weight: 1290 g
Weight with packaging: 1344 g
