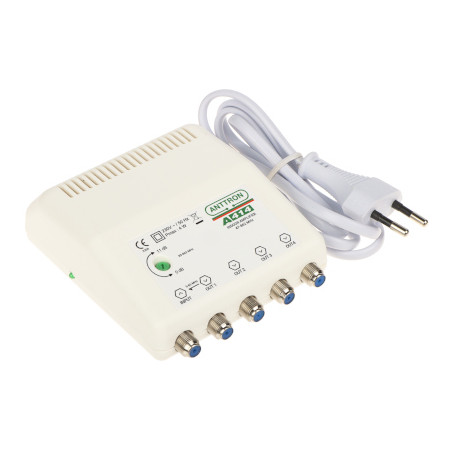

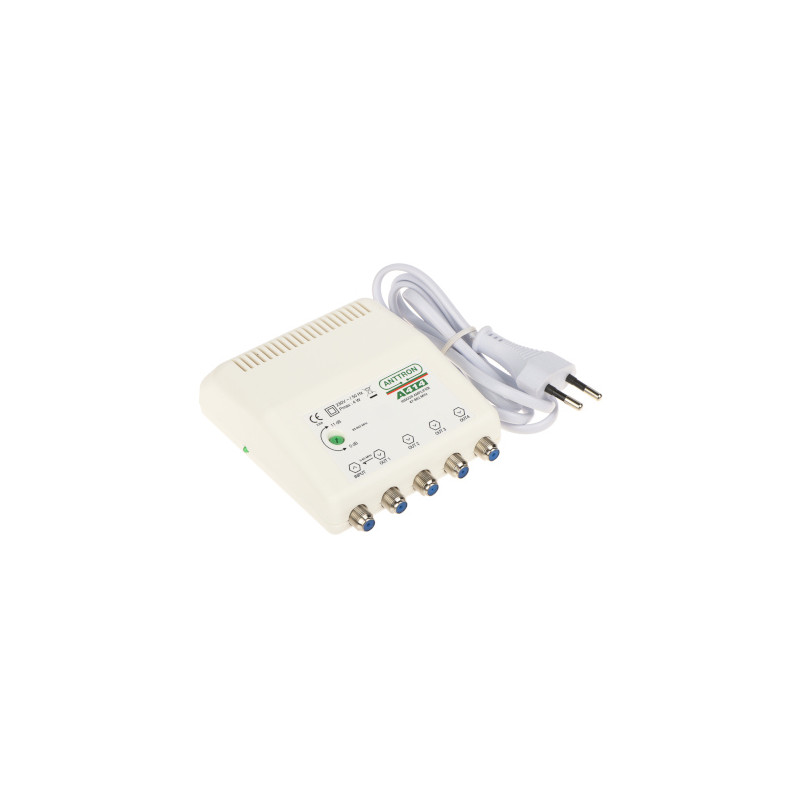

Cable TV subscriber amplifier 1 input 4 outputs return path gain control ANTTRON ANTTRON-A414
zł181.58
Tax included
The ANTTRON-A414 amplifier is a professional subscriber device designed for use in modern television installations, both in single-family homes and cable networks. Its key feature is support for a return path in the 5-65 MHz range, which is essential in systems offering two-way data transmission, such as cable Internet. The device has one input and four outputs, allowing for efficient signal distribution to four receivers without compromising reception quality. Thanks to 12 dB gain and smooth adjustment capabilities, the installer can precisely adapt signal parameters to cable lengths and TV tuner sensitivity.
Product advantages:
- Return path support (5-65 MHz) ideal for cable modems.
- Four signal outputs allowing for the construction of an extensive home TV network.
- Smooth gain control (0-12 dB) for signal level optimization.
- Built-in 230V power supply with LED indicator.
- Robust construction and F-type connectors ensuring connection durability.
- Low power consumption (4W), resulting in low operating costs.
- Compact dimensions facilitating installation in cabinets and recesses.
The ANTTRON-A414 amplifier ensures stable reception of DVB-T2 digital programs and analog signals, eliminating issues with pixelation or image loss caused by low signal levels. It is a reliable solution for any user who values high-quality television reception.
Cable TV subscriber amplifier 1 input 4 outputs return path gain control
Model: ANTTRON ANTTRON-A414
EAN: 6931240036730 SKU: 931036737
- 1 input / 4 outputs
- Return path 5-65 MHz
- Gain 12 dB
- Gain control 0-12 dB
- F-type connectors
- Built-in 230V power supply
- LED operation indicator
Description
The ANTTRON-A414 amplifier is a professional subscriber device designed for use in modern television installations, both in single-family homes and cable networks. Its key feature is support for a return path in the 5-65 MHz range, which is essential in systems offering two-way data transmission, such as cable Internet. The device has one input and four outputs, allowing for efficient signal distribution to four receivers without compromising reception quality. Thanks to 12 dB gain and smooth adjustment capabilities, the installer can precisely adapt signal parameters to cable lengths and TV tuner sensitivity.
Product advantages:
- Return path support (5-65 MHz) ideal for cable modems.
- Four signal outputs allowing for the construction of an extensive home TV network.
- Smooth gain control (0-12 dB) for signal level optimization.
- Built-in 230V power supply with LED indicator.
- Robust construction and F-type connectors ensuring connection durability.
- Low power consumption (4W), resulting in low operating costs.
- Compact dimensions facilitating installation in cabinets and recesses.
The ANTTRON-A414 amplifier ensures stable reception of DVB-T2 digital programs and analog signals, eliminating issues with pixelation or image loss caused by low signal levels. It is a reliable solution for any user who values high-quality television reception.
Specification
Frequency range (Forward)
85 MHz ... 862 MHz - covers the full VHF and UHF band used in terrestrial and cable television
Frequency range (Return)
5 MHz ... 65 MHz - enables support for the return path necessary for the proper operation of cable modems and interactive services
Number of inputs
1x F-type socket - standard signal input from an antenna or cable network
Number of outputs
4x F-type socket - allows connection to four independent television receivers or tuners
Input / output impedance
75 Ω - standard impedance for television systems ensuring signal reflection minimization
Connector type
F - professional threaded connectors ensuring a durable and secure mechanical and electrical connection
Gain
12 dB - fixed input signal gain level ensuring compensation for splitter and cable losses
Gain control
0 dB ... 12 dB - built-in potentiometer allows for smooth gain reduction in case of an excessively strong input signal
Noise figure
4.5 dB - low noise figure guarantees high image quality even with a weaker signal
Maximum output level (IMA3 60dB)
105 dBµV - high resistance to overload with multiple digital channels
Return loss
> 10 dB - parameter defining the quality of the device's impedance matching to the transmission line
Return path attenuation
2 dB - low return path attenuation ensures stable communication with the operator
Isolation between outputs
> 20 dB - high isolation prevents mutual interference between connected televisions
Power supply
230 V AC - direct power supply from the power grid without the need for external power adapters
Power consumption
4 W - energy-efficient design allowing for continuous device operation at minimal costs
Dimensions and weight
115 x 95 x 35 mm, 280 g - compact housing facilitating installation in telecommunications boxes or behind a TV
Contents
1x ANTTRON-A414 amplifier
1x User manual
Dimensions, Weight
Product dimensions: 35 x 115 x 95 mm (D x W x H)
Packaging dimensions: 60 x 125 x 110 mm (D x W x H)
Product weight: 280 g
Weight with packaging: 310 g
