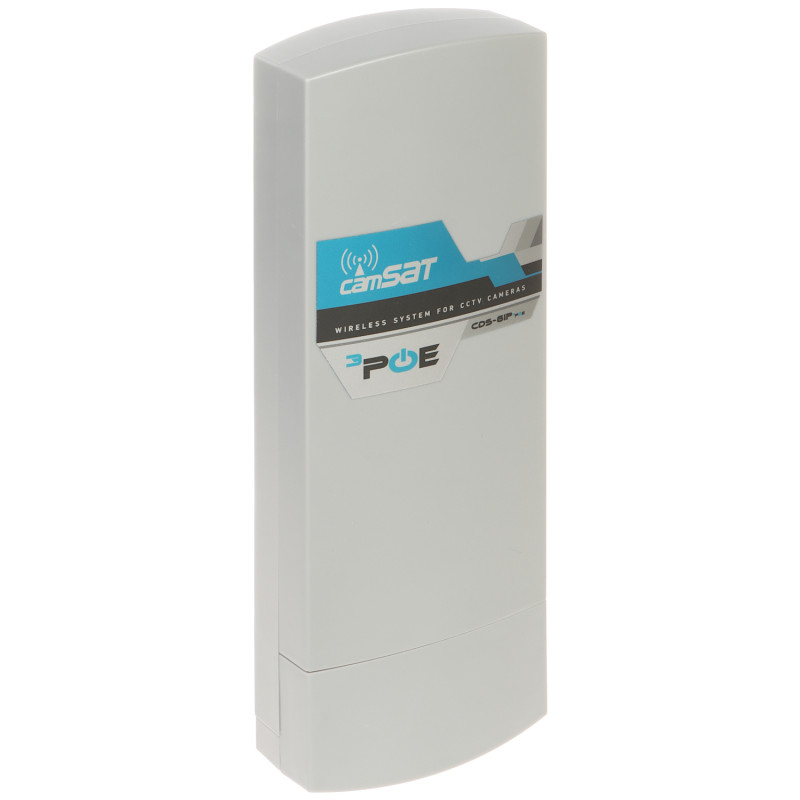

5.8 GHz Access Point CDS-6IP-3POE CAMSAT CDS-6IP-3POE
zł1,215.24
Tax included
The wireless CDS-6IP-3POE module is an advanced solution dedicated to video transmission for megapixel Full HD and 4K IP cameras and recorders. The device functions as both a transmitter and a receiver in a single module (transceiver), which significantly simplifies the installation and configuration of the monitoring system. Thanks to the use of 64/128/152-bit identification code encryption, the system guarantees a high level of security, effectively protecting the transmission against unauthorized viewing by third parties.
The device is equipped with an integrated dual 5GHz MIMO antenna with a gain of 2 x 13 dBi, which allows for precise tuning and high-quality signal acquisition even at varying distances. The built-in PoE switch allows for powering up to 3 external devices in accordance with the IEEE 802.3 af/at or Passive PoE 48V standard, which eliminates the need for additional power supplies at the cameras. The CDS-6IP-3POE module itself can be powered via Passive PoE or a switch compliant with the IEEE 802.3 at standard. The advantage of the device is its operation in the 5.8 GHz band, which ensures transmission free from interference generated by standard 2.4 GHz Wi-Fi networks, Bluetooth, or radio telephony. A robust housing with an IP55 ingress protection rating allows for installation in difficult outdoor conditions, ensuring reliability in a wide temperature range from -20°C to 70°C.
5.8 GHz Access Point CDS-6IP-3POE
Model: CAMSAT CDS-6IP-3POE
EAN: 6931240070109 SKU: 931070107
- Video transmission for Full HD / 4K IP cameras
- Transceiver device (transmitter/receiver in one)
- Built-in PoE switch for 3 devices (802.3af/at)
- Integrated 5GHz 2x13 dBi MIMO antenna
- 64/128/152-bit encryption
- Operation in the interference-free 5.8 GHz band
- Transmission range up to 2 km
- IP55 ingress protection rating
Description
The wireless CDS-6IP-3POE module is an advanced solution dedicated to video transmission for megapixel Full HD and 4K IP cameras and recorders. The device functions as both a transmitter and a receiver in a single module (transceiver), which significantly simplifies the installation and configuration of the monitoring system. Thanks to the use of 64/128/152-bit identification code encryption, the system guarantees a high level of security, effectively protecting the transmission against unauthorized viewing by third parties.
The device is equipped with an integrated dual 5GHz MIMO antenna with a gain of 2 x 13 dBi, which allows for precise tuning and high-quality signal acquisition even at varying distances. The built-in PoE switch allows for powering up to 3 external devices in accordance with the IEEE 802.3 af/at or Passive PoE 48V standard, which eliminates the need for additional power supplies at the cameras. The CDS-6IP-3POE module itself can be powered via Passive PoE or a switch compliant with the IEEE 802.3 at standard. The advantage of the device is its operation in the 5.8 GHz band, which ensures transmission free from interference generated by standard 2.4 GHz Wi-Fi networks, Bluetooth, or radio telephony. A robust housing with an IP55 ingress protection rating allows for installation in difficult outdoor conditions, ensuring reliability in a wide temperature range from -20°C to 70°C.
Specification
Frequency range
5150 MHz ... 5350 MHz, 5470 MHz ... 5725 MHz
Number of channels
max. 16
Resolution
max. 16 Mpx
Security
64/128/152-bit WEP, WPA, WPA-PSK/WPA2-PSK code
Transmitter power
≤ 500 mW (27 dBm)
Wireless transmission range
max. 2 km
Antenna type
Integrated, 2 pcs. 14 dBi MIMO - Interpolary H/V
Modulation type
OFDM (Orthogonal Frequency Division Multiplexing) – multi-carrier modulation providing resistance to interference and multipath phenomena.
Transmission speed
max. 60 Mbps
Operating modes
Video Bridge (dedicated for IP cameras), Master (Access Point), Slave (AP Client)
Power supply
Passive PoE 48V DC, PoE 802.3at, 48V DC, 12-24V DC / 1A
Selected features
Point-to-Point/Point-to-Multipoint operation, support for up to 8 transmitters by one receiver, MIMO technology, bidirectional communication, IP PTZ control, radio power regulation, LED signal level indicator.
Ingress protection rating
IP55
Operating temperature
-20 °C ... 70 °C
Contents
1x Access point CDS-6IP-3POE
1x Power adapter
Dimensions, Weight
Product dimensions: 52 x 249 x 88 mm (D x W x H)
Package dimensions: 70 x 340 x 98 mm (D x W x H)
Product weight: 370 g
Weight with packaging: 586 g
