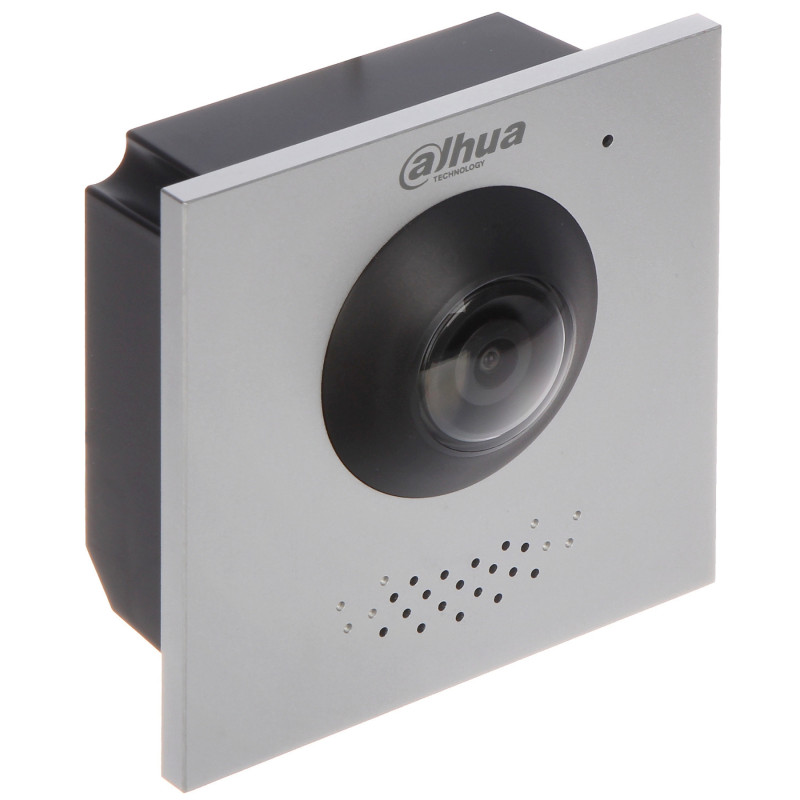

Hybrid IP 2-Wire Video Intercom Module 2Mpx WDR 120dB IR IK07 IP65 Silver Aluminum DAHUA VTO4202F-P-S3
zł1,557.45
Tax included
The VTO4202F-P-S3 hybrid video intercom module is an advanced solution from a renowned manufacturer, designed for maximum installation flexibility and reliability in access control systems. A key advantage of this device is its dual operating nature - the module can function in traditional IP installations based on twisted-pair cabling with PoE power, as well as in modern 2-Wire systems. This makes the device ideal for both newly constructed facilities and for upgrading existing intercom systems without the need to replace cabling. At the heart of the device is a high-class 2 Mpx CMOS sensor, which, combined with an extremely wide-angle lens of 169 degrees, provides a full view of the area in front of the entrance, eliminating blind spots. The housing, made of high-quality silver aluminum, features an IK07 mechanical resistance rating and IP65 ingress protection, ensuring longevity and resistance to harsh weather conditions and vandalism attempts. The device supports modern H.265 video compression, which allows for significant memory card space savings (support up to 256GB) and lower network bandwidth load while maintaining a crystal-clear image. An additional advantage is the integration with a mobile system via a dedicated application, which allows for answering calls and opening the gate from anywhere in the world. This is a professional solution combining functionality, security, and ease of use. Product advantages: hybrid operation (IP/2-Wire), ultra-wide viewing angle, high IK07 mechanical resistance, memory card support, and advanced image enhancement features like WDR and 3D-DNR.
Hybrid IP 2-Wire Video Intercom Module 2Mpx WDR 120dB IR IK07 IP65 Silver Aluminum
Model: DAHUA VTO4202F-P-S3
EAN: 6931240080504 SKU: 931080500
- Hybrid operation: IP (RJ45) or 2-Wire system
- 2 Mpx (Full HD) resolution for clear images
- Ultra-wide lens viewing angle - up to 169 degrees
- High-durability and aesthetic aluminum housing
- PoE (802.3af/at) or dedicated 48V (2-Wire) power supply
- Built-in IR illuminator for operation in total darkness
- Two-way audio communication (microphone + speaker)
- IP65 ingress protection and IK07 mechanical resistance
- Micro SD card support up to 256GB for local recording
- Image enhancement features: WDR 120dB and 3D-DNR
Description
The VTO4202F-P-S3 hybrid video intercom module is an advanced solution from a renowned manufacturer, designed for maximum installation flexibility and reliability in access control systems. A key advantage of this device is its dual operating nature - the module can function in traditional IP installations based on twisted-pair cabling with PoE power, as well as in modern 2-Wire systems. This makes the device ideal for both newly constructed facilities and for upgrading existing intercom systems without the need to replace cabling. At the heart of the device is a high-class 2 Mpx CMOS sensor, which, combined with an extremely wide-angle lens of 169 degrees, provides a full view of the area in front of the entrance, eliminating blind spots. The housing, made of high-quality silver aluminum, features an IK07 mechanical resistance rating and IP65 ingress protection, ensuring longevity and resistance to harsh weather conditions and vandalism attempts. The device supports modern H.265 video compression, which allows for significant memory card space savings (support up to 256GB) and lower network bandwidth load while maintaining a crystal-clear image. An additional advantage is the integration with a mobile system via a dedicated application, which allows for answering calls and opening the gate from anywhere in the world. This is a professional solution combining functionality, security, and ease of use. Product advantages: hybrid operation (IP/2-Wire), ultra-wide viewing angle, high IK07 mechanical resistance, memory card support, and advanced image enhancement features like WDR and 3D-DNR.
Specification
Standard and Compatibility
The device operates in IP and 2-Wire standards (hybrid). Full compatibility with DAHUA brand systems.
Image Sensor
1/2.9" CMOS with 2 Mpx resolution (1920 x 1080).
Optics and Viewing Angle
1.9 mm focal length lens provides a 169° horizontal viewing angle.
Video Compression
Advanced H.265 and H.264 encoding for bandwidth optimization.
Night Illumination
Built-in infrared (IR) illuminator enabling night visibility. No white LED illuminator.
Access and Software
Access via port 37777 or P2P cloud. DMSS (Digital Mobile Surveillance System) software for Android and iOS enables remote live viewing, playback of recordings, receiving push notifications about video intercom calls, and remote control of the electric strike. The application offers an intuitive interface, gesture support, and high connection stability via the manufacturer's servers, which eliminates the need for a static IP address.
Audio Features
Built-in microphone and speakers. Support for two-way communication, noise and echo reduction.
Image Features
WDR - 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), automatic ICR filter (day/night mode).
Communication Interfaces
RJ-45 10/100 Mbps port, RS-485 port, 2-Wire IP interface.
Inputs and Outputs
Alarm output, 12V DC / 600mA power output, exit button support, door status detection, lock control.
Local Storage
Micro SD card slot with support for media up to 256GB.
Power Parameters
PoE (802.3af/at) or 2-Wire IP interface 48V DC / 1A. Power consumption ≤ 5 W.
Construction and Color
Housing made of silver-colored aluminum. Mounting in VTM12x series housings.
Environmental Conditions
IP65 ingress protection rating (additional sealing required), IK07 mechanical resistance rating. Operating temperature: -30 °C ... 60 °C.
Contents
1x VTO4202F-P-S3 video intercom module
1x Mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 49 x 100 x 100 mm (D x W x H)
Package dimensions: 75 x 190 x 165 mm (D x W x H)
Product weight: 300 g
Weight with packaging: 480 g
