- New

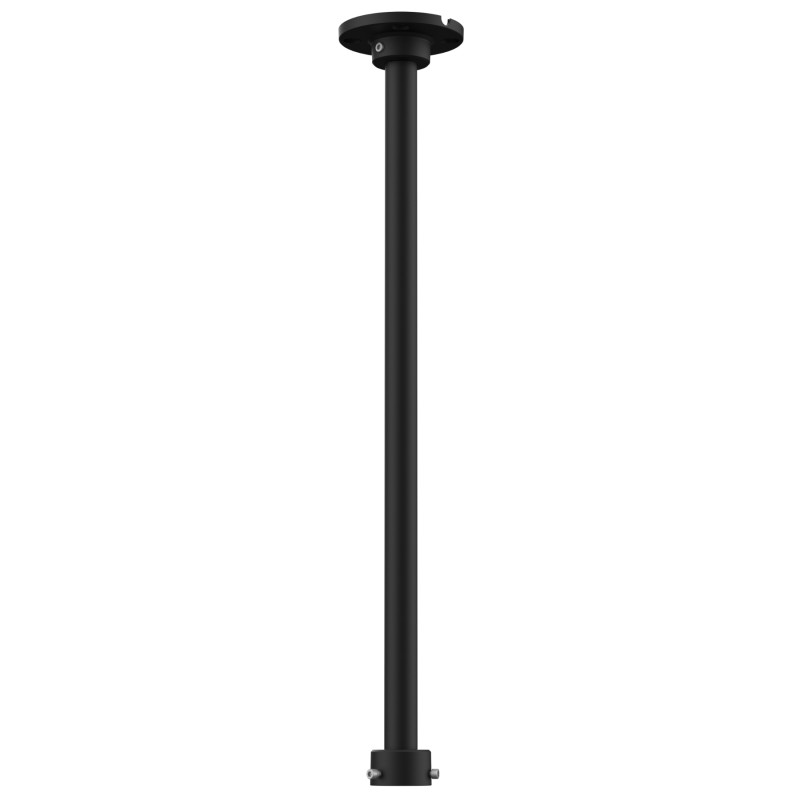

Dahua CCTV surveillance camera ceiling mount adapter black boom 76cm DAHUA PFB220C-B
zł319.80
Tax included
The Dahua PFB220C-B ceiling mount is a professional mounting solution designed for industrial television systems requiring stable camera mounting at significant heights. This elegant, black boom with a length of 767 mm is an ideal choice for installation in large-area facilities such as warehouses, shopping centres, hotel lobbies, or modern office buildings. Thanks to its design, it allows the camera to be lowered below the ceiling line or installation obstacles, which ensures an optimal field of view and effective monitoring of the facility.
The main advantage of the product is its construction from high-quality aluminium alloy. This material is characterised by an excellent strength-to-weight ratio, which makes the mount weigh only 920 grams while maintaining full rigidity and stability. Aluminium also guarantees high corrosion resistance, which, combined with black powder coating, ensures an aesthetic appearance and durability for many years of operation. The robustness of the product is confirmed by a 3-year manufacturer warranty.
A key structural element is the integrated cable pass-through. It allows for safe and complete concealment of cables inside the mount tube, which drastically improves the aesthetics of the installation. The lack of visible cabling is not only a visual matter but also additional protection against acts of vandalism, accidental disconnection, or adverse effects of external factors. A wide mounting base with a diameter of 129 mm guarantees secure seating on concrete and suspended ceilings, ensuring the safety of the mounted equipment.
Dahua CCTV surveillance camera ceiling mount adapter black boom 76cm
Model: DAHUA PFB220C-B
EAN: 6931240058114 SKU: 931058115
- Dedicated ceiling mount for Dahua cameras
- Made of lightweight and durable aluminium alloy
- Aesthetic black finish matching modern interiors
- Integrated cable pass-through protecting wires
- Fixed distance from mounting surface of 767 mm
- High load capacity ensuring stability for heavier cameras
- Resistance to corrosion and mechanical damage
- Easy installation thanks to a wide base with a diameter of 129 mm
- Long 3-year manufacturer warranty
Description
The Dahua PFB220C-B ceiling mount is a professional mounting solution designed for industrial television systems requiring stable camera mounting at significant heights. This elegant, black boom with a length of 767 mm is an ideal choice for installation in large-area facilities such as warehouses, shopping centres, hotel lobbies, or modern office buildings. Thanks to its design, it allows the camera to be lowered below the ceiling line or installation obstacles, which ensures an optimal field of view and effective monitoring of the facility.
The main advantage of the product is its construction from high-quality aluminium alloy. This material is characterised by an excellent strength-to-weight ratio, which makes the mount weigh only 920 grams while maintaining full rigidity and stability. Aluminium also guarantees high corrosion resistance, which, combined with black powder coating, ensures an aesthetic appearance and durability for many years of operation. The robustness of the product is confirmed by a 3-year manufacturer warranty.
A key structural element is the integrated cable pass-through. It allows for safe and complete concealment of cables inside the mount tube, which drastically improves the aesthetics of the installation. The lack of visible cabling is not only a visual matter but also additional protection against acts of vandalism, accidental disconnection, or adverse effects of external factors. A wide mounting base with a diameter of 129 mm guarantees secure seating on concrete and suspended ceilings, ensuring the safety of the mounted equipment.
Specification
Mount diameter
Ø 47 mm - optimal tube diameter ensuring rigidity at a length of over 76 cm.
Suitable for cameras
Dedicated to DAHUA systems; compatible with many models when using PFA series adapters.
Material
Aluminium (high-strength alloy) - provides resistance to rusting and low construction weight.
Colour and coating
Black (RAL 9005) - powder coating resistant to chipping and scratching.
Distance from mounting surface
767 mm - fixed arm length allowing for effective monitoring from high ceilings.
Product weight
0.92 kg (920 g) - lightweight construction facilitating installation by one person.
Overall dimensions
Ø 129 x 767 mm (base diameter x boom length).
Cable pass-through
Yes - internal cable channel allowing for aesthetic and safe routing of power and signal.
Mounting base diameter
Ø 129 mm - ensures even weight distribution on the ceiling surface.
Maximum load capacity
Up to 7 kg (estimated value for standard Dahua PFB systems).
Operating temperature
-40 °C ... +60 °C - ability to work in difficult thermal conditions.
Mounting type
Ceiling, hanging - designed for vertical mounting.
Manufacturer / Brand
DAHUA - global leader in providing security system solutions.
Warranty
3 years (36 months) - full manufacturer service and warranty support.
Application
Universal - warehouses, offices, shops, underground garages, and other facilities with high ceilings.
Contents
1x Dahua PFB220C-B ceiling mount
1x Set of mounting screws and wall plugs
1x Allen key
Dimensions, Weight
Product dimensions: 767 x 129 x 129 mm (D x W x H)
Packaging dimensions: 820 x 185 x 175 mm (D x W x H)
Product weight: 920 g
Weight with packaging: 1330 g
