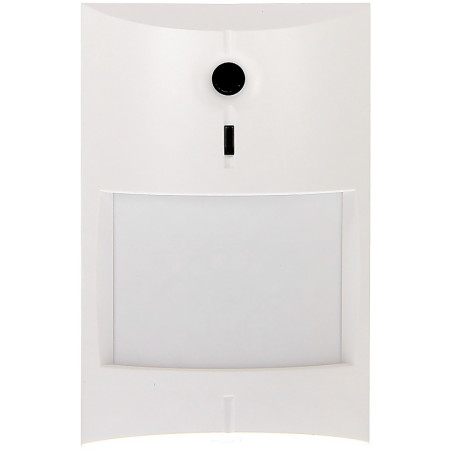

PIR and glass break detector dual indoor digital motion detector microphone high sensitivity SATEL NAVY
zł189.35
Tax included
The NAVY detector is a professional alarm device that enables effective motion detection in a protected area while simultaneously monitoring for glass break sounds. By integrating two independent detection methods into one enclosure, the product provides an economical and efficient solution for security systems in homes, offices, and commercial facilities.
The heart of the device in the infrared path is a high-class dual pyroelement, which, combined with a digital signal analysis algorithm, ensures reliable operation and minimizes false alarms. The motion detection range is 12 x 13 meters, allowing for effective coverage of most standard rooms. An additional advantage is the digital temperature compensation function, which automatically adjusts the detector's operating parameters to ambient conditions, guaranteeing constant sensitivity even at high temperatures close to human body heat.
The glass break sensor uses an advanced microphone and frequency analysis in two bands. This allows for precise differentiation between the sound of breaking glass (ordinary, tempered, or laminated) and other everyday noises. The glass break detection range is up to 6 meters. The device has been designed for easy installation and configuration, offering independent sensitivity adjustment for both detection paths using built-in potentiometers.
Modern design and compact dimensions make the NAVY detector discreetly blend into the decor of any interior. The device has a built-in alarm memory, which facilitates system diagnostics after a violation occurs. High-quality workmanship and Polish production guarantee long-term and trouble-free operation within professional intrusion and robbery signaling systems.
PIR and glass break detector dual indoor digital motion detector microphone high sensitivity
Model: SATEL NAVY
EAN: 6931240011263 SKU: 931011264
- Dual detection technology: passive infrared (PIR) and acoustic glass break sensor
- High-quality dual pyroelement ensuring precise motion detection
- Digital temperature compensation for stable operation in changing conditions
- Advanced acoustic signal analysis in two frequency bands (low and high)
- Independent smooth sensitivity adjustment for PIR and Glass Break (GB) paths
- Built-in alarm memory indicated by an LED
- Integrated tamper contact reacting to enclosure opening
- Support for various types of glass: ordinary, tempered, laminated
- Wide operating range: 12m for PIR and 6m for glass break sensor
- Product from a renowned Polish manufacturer of alarm systems SATEL
Description
The NAVY detector is a professional alarm device that enables effective motion detection in a protected area while simultaneously monitoring for glass break sounds. By integrating two independent detection methods into one enclosure, the product provides an economical and efficient solution for security systems in homes, offices, and commercial facilities.
The heart of the device in the infrared path is a high-class dual pyroelement, which, combined with a digital signal analysis algorithm, ensures reliable operation and minimizes false alarms. The motion detection range is 12 x 13 meters, allowing for effective coverage of most standard rooms. An additional advantage is the digital temperature compensation function, which automatically adjusts the detector's operating parameters to ambient conditions, guaranteeing constant sensitivity even at high temperatures close to human body heat.
The glass break sensor uses an advanced microphone and frequency analysis in two bands. This allows for precise differentiation between the sound of breaking glass (ordinary, tempered, or laminated) and other everyday noises. The glass break detection range is up to 6 meters. The device has been designed for easy installation and configuration, offering independent sensitivity adjustment for both detection paths using built-in potentiometers.
Modern design and compact dimensions make the NAVY detector discreetly blend into the decor of any interior. The device has a built-in alarm memory, which facilitates system diagnostics after a violation occurs. High-quality workmanship and Polish production guarantee long-term and trouble-free operation within professional intrusion and robbery signaling systems.
Specification
Device type
Wired dual PIR + Glass Break detector
Application
Indoor, intrusion and robbery signaling systems
Infrared sensor
Dual Element
PIR detection range
12 x 13 meters, viewing angle approx. 90°
Glass break detection range
Up to 6 meters (ordinary, tempered, laminated glass)
Signal processing
Fully digital with advanced interference filtering algorithms
Sensitivity adjustment
Smooth via two independent potentiometers (separately for PIR and microphone paths)
Temperature compensation
Digital ambient temperature compensation ensuring constant effectiveness
Electrical parameters
Power supply: 12 V DC, standby current consumption: 7.5 mA
Alarm outputs
NC relay, maximum load 40 mA / 16 V DC
Signaling and functions
LED indicating violation, alarm memory function
Detectable motion speed
Range from 0.3 m/s to 3 m/s
Tamper protection
Tamper contact reacting to opening the device enclosure
Operating conditions
Temperature: -10 °C ... 55 °C, environmental class II according to EN 50131
Construction and mounting
High-quality ABS plastic enclosure, recommended mounting height: 2.4 m
Alarm memory
Alarm memory function allowing event verification in a multi-detector system
Warranty
24 months (2 years)
Contents
1x NAVY detector
1x Set of mounting screws and plugs
1x User manual in Polish
Dimensions, Weight
Product dimensions: 48 x 62 x 96 mm (D x W x H)
Packaging dimensions: 50 x 65 x 135 mm (D x W x H)
Product weight: 70 g
Weight with packaging: 130 g
