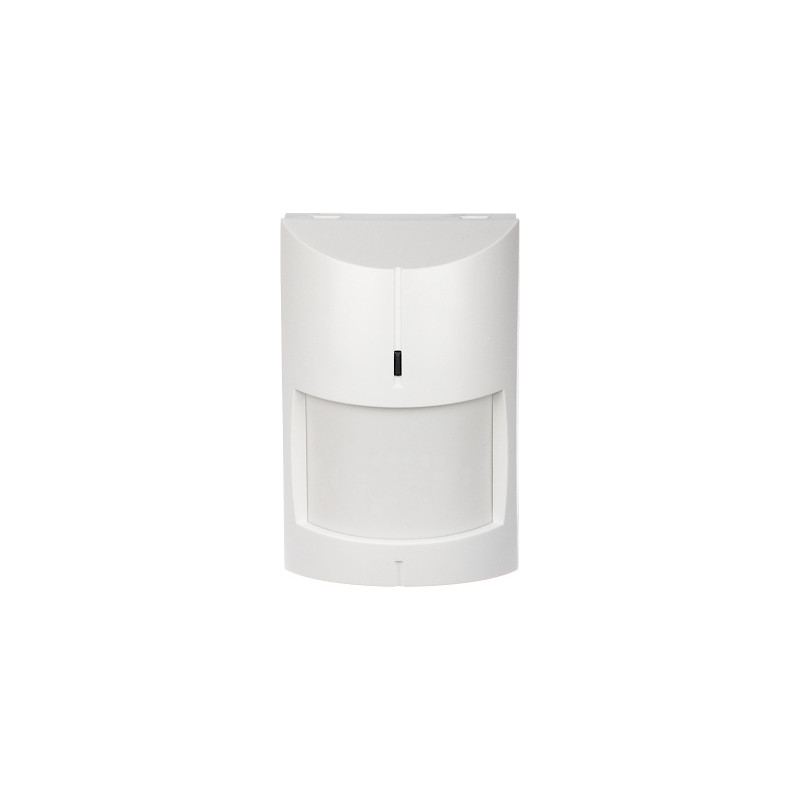

Wireless PIR motion detector pet immune up to 15kg Micra system 433MHz 200m range SATEL MPD-300
zł186.50
Tax included
The SATEL MPD-300 is a technologically advanced wireless passive infrared (PIR) motion detector designed to work with alarm systems based on the MICRA module. The device is an ideal solution for securing facilities where the installation of traditional wiring is difficult, unsightly, or technically impossible. This detector is distinguished by a unique pet immunity function for small domestic animals weighing up to 15 kilograms, which allows for full protection of apartments and houses where pets are present, without generating false alarms.
The heart of the device is a modern digital detection algorithm, which, combined with a temperature compensation mechanism, guarantees stable operation in changing environmental conditions. The detector automatically adjusts its parameters to the room temperature, ensuring consistent intruder detection sensitivity regardless of the season. Thanks to high-class optics and interchangeable Fresnel lenses, the device offers a wide 90-degree viewing angle and a detection range of up to 16 meters, allowing for effective monitoring of even large living rooms or workshop halls.
Data transmission security is based on the 433 MHz frequency band, and the radio communication range in an open area is up to 200 meters. The device is extremely energy-efficient – an advanced power management system allows it to be powered by a single CR123A lithium battery for about 3 years. An additional advantage is full tamper protection, which reacts to opening the housing and attempts to tear the detector off the wall, making it extremely resistant to third-party interference. The MPD-300 is a Polish product that combines reliability, modern design, and ease of installation, making it one of the best choices in its class.
Wireless PIR motion detector pet immune up to 15kg Micra system 433MHz 200m range
Model: SATEL MPD-300
EAN: 6931240075302 SKU: 931075302
- Full compatibility with MICRA and CA-4/MICRA alarm modules (v2.02+)
- Pet immunity for domestic animals weighing up to 15 kg
- Digital detection algorithm with advanced temperature compensation
- Wide radio communication range up to 200 meters in open area
- Very long battery life on a single lithium battery - up to 3 years of operation
- Adjustable sensor sensitivity for optimal adaptation to conditions
- Interchangeable Fresnel lenses allowing modification of detection characteristics
- LED indicator for violations in test mode for easy configuration
- Dual tamper protection against enclosure opening and detachment from the surface
- Robust housing with compact dimensions and aesthetic design
Description
The SATEL MPD-300 is a technologically advanced wireless passive infrared (PIR) motion detector designed to work with alarm systems based on the MICRA module. The device is an ideal solution for securing facilities where the installation of traditional wiring is difficult, unsightly, or technically impossible. This detector is distinguished by a unique pet immunity function for small domestic animals weighing up to 15 kilograms, which allows for full protection of apartments and houses where pets are present, without generating false alarms.
The heart of the device is a modern digital detection algorithm, which, combined with a temperature compensation mechanism, guarantees stable operation in changing environmental conditions. The detector automatically adjusts its parameters to the room temperature, ensuring consistent intruder detection sensitivity regardless of the season. Thanks to high-class optics and interchangeable Fresnel lenses, the device offers a wide 90-degree viewing angle and a detection range of up to 16 meters, allowing for effective monitoring of even large living rooms or workshop halls.
Data transmission security is based on the 433 MHz frequency band, and the radio communication range in an open area is up to 200 meters. The device is extremely energy-efficient – an advanced power management system allows it to be powered by a single CR123A lithium battery for about 3 years. An additional advantage is full tamper protection, which reacts to opening the housing and attempts to tear the detector off the wall, making it extremely resistant to third-party interference. The MPD-300 is a Polish product that combines reliability, modern design, and ease of installation, making it one of the best choices in its class.
Specification
Device type
Wireless PIR (Passive Infra-Red) motion detector
System compatibility
Satel MICRA, CA-4/MICRA (software version 2.02 or newer required)
Operating frequency
433.05 MHz ... 434.79 MHz
Radio transmission range
Up to 200 m in open area (depending on obstacles and signal attenuation)
Detection angle and range
90° / 16 m; optics with interchangeable Fresnel lenses
Pet immunity
Yes, up to 15 kg (eliminates false alarms caused by small animals)
Power supply and battery
CR123A 3 V lithium battery (included)
Battery life
Approximately 3 years thanks to advanced energy saving
Processing algorithm
Digital motion detection algorithm with ambient temperature compensation
Tamper protection
Tamper contact reacting to opening the housing and detachment from the surface
Diagnostic signaling
LED indicator for violation only in test mode
Environmental conditions
Operating temperature: -10°C ... 55°C; Environmental class according to EN50130-5: II
Mounting parameters
Recommended mounting height: 2.4 m; wall or corner mounting
Control software
The Satel MICRA system offers advanced configuration capabilities via GPRS-SOFT software. This program allows the installer to fully parameterize the alarm module and its assigned detectors. It enables precise adjustment of the MPD-300 detection sensitivity and monitoring of the radio signal strength. For the end user, the MICRA CONTROL mobile application (Android/iOS) is available, which allows for remote system management, arming and disarming the alarm, and controlling outputs via SMS commands in a clear graphical interface.
Construction and dimensions
Dimensions: 63 x 96 x 49 mm; Weight: 90 g; Housing made of high-quality ABS plastic
Contents
1x MPD-300 PIR detector
1x CR123A lithium battery
1x Set of mounting plugs
1x User manual
Dimensions, Weight
Product dimensions: 49 x 63 x 96 mm (Depth x Width x Height)
Package dimensions: 55 x 145 x 70 mm (Depth x Width x Height)
Product weight: 90 g
Weight with packaging: 150 g
