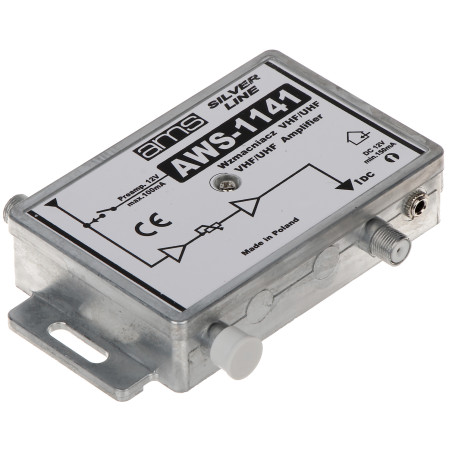

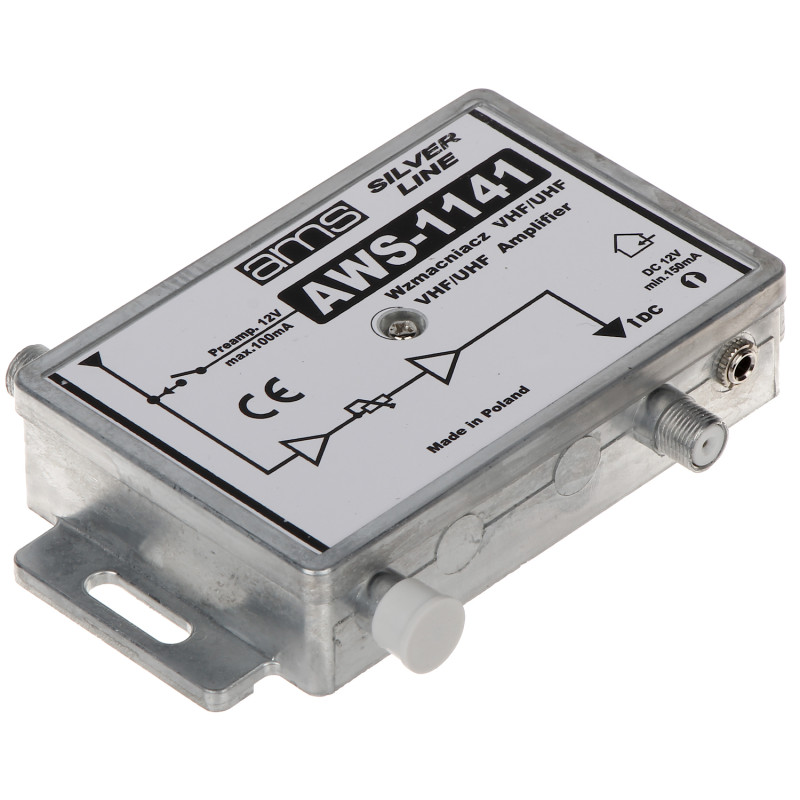

DVB-T2 terrestrial TV antenna subscriber amplifier adjustable 1 input 1 output AMS AWS-1141
zł184.64
Tax included
The antenna amplifier is a professional solution designed for the effective distribution of television signals in home and complex antenna installations. The main advantage of the device is the integrated gain control, which allows for precise adjustment of the signal level to the specific requirements of a given installation, eliminating reception problems in areas with poor signal coverage.The product is characterized by high operational stability and a low noise figure, which is crucial for maintaining a crystal-clear image in digital standards such as DVB-T2. The solid metal housing provides excellent shielding against external interference, which further improves transmission quality. The amplifier is extremely flexible in terms of installation – it can be powered directly from the included power adapter or via the output using a voltage separator, which facilitates installation in places without direct access to a 230V socket.The device is a proud representative of Polish technical thought, which guarantees high quality of workmanship and full compliance with local broadcasting standards. The use of popular F-type connectors makes the connection process quick and secure. It is ideal for single-family homes, apartments, and offices where there is a need to amplify the signal before splitting it to more than one TV receiver. By choosing this model, you are investing in the stability and reliability of terrestrial television reception for many years.
DVB-T2 terrestrial TV antenna subscriber amplifier adjustable 1 input 1 output
Model: AMS AWS-1141
EAN: 6931240088012 SKU: 931088012
- Wide operating frequency range covering FM and terrestrial TV bands
- Smooth signal gain adjustment up to 10 dB
- High maximum output level of up to 106 dBµV
- Ability to power preamplifiers mounted in antennas
- Solid housing providing excellent electromagnetic shielding
- Two power options: local or remote via coaxial cable
- F-type connectors ensuring secure contact and ease of installation
- Polish product with high durability and reliability
Description
The antenna amplifier is a professional solution designed for the effective distribution of television signals in home and complex antenna installations. The main advantage of the device is the integrated gain control, which allows for precise adjustment of the signal level to the specific requirements of a given installation, eliminating reception problems in areas with poor signal coverage.
The product is characterized by high operational stability and a low noise figure, which is crucial for maintaining a crystal-clear image in digital standards such as DVB-T2. The solid metal housing provides excellent shielding against external interference, which further improves transmission quality. The amplifier is extremely flexible in terms of installation – it can be powered directly from the included power adapter or via the output using a voltage separator, which facilitates installation in places without direct access to a 230V socket.The device is a proud representative of Polish technical thought, which guarantees high quality of workmanship and full compliance with local broadcasting standards. The use of popular F-type connectors makes the connection process quick and secure. It is ideal for single-family homes, apartments, and offices where there is a need to amplify the signal before splitting it to more than one TV receiver. By choosing this model, you are investing in the stability and reliability of terrestrial television reception for many years.Specification
Frequency range
87 MHz ... 790 MHz - Supports the full VHF and UHF band, including FM radio and DVB-T/DVB-T2 terrestrial television.
Number of inputs/outputs
1 signal input / 1 signal output - Designed to amplify the main antenna path before splitters.
Impedance
75 Ω - Standard characteristic impedance for television and radio systems, minimizing signal reflections.
Connector type
F-type sockets - Ensure the lowest contact losses and are resistant to accidental disconnection.
Gain
19 dB / 22 dB (± 1.5 dB) - High gain allowing for compensation of losses on long cable runs.
Gain adjustment
0 dB ... 10 dB (+/- 1dB) - Allows for precise setting of the level so as not to overdrive the TV tuner.
Noise figure
3 dB - Very low internal noise level, which is crucial for the correct decoding of digital signals.
Maximum output level
106 dBµV - Enables powering of extensive home networks with multiple receivers.
Intermodulation IMA3 60dB
100 dBµV - High resistance to third-order intermodulation distortion.
Intermodulation IMA2 60dB
87 dBµV - Parameter defining signal purity with multiple broadcast channels.
Return loss
10 dB - Indicates good quality of components and operational stability across the entire band.
Preamplifier power supply
Yes - The device allows for sending supply voltage to the amplifier in the antenna box.
Operating temperature
-25 °C ... 55 °C - Wide temperature range allowing for installation in places such as unheated attics.
Power supply parameters
12 V DC / 150 mA - Low power consumption ensures energy savings and less device heating.
Warranty
2 years - Standard manufacturer warranty confirming high product quality.
Contents
1x Antenna amplifier
1x 12V power adapter1x User manualDimensions, Weight
Product dimensions: 45 x 125 x 95 mm (D x W x H)
Packaging dimensions: 115 x 140 x 75 mm (D x W x H)
Product weight: 320 g
Weight with packaging: 412 g
