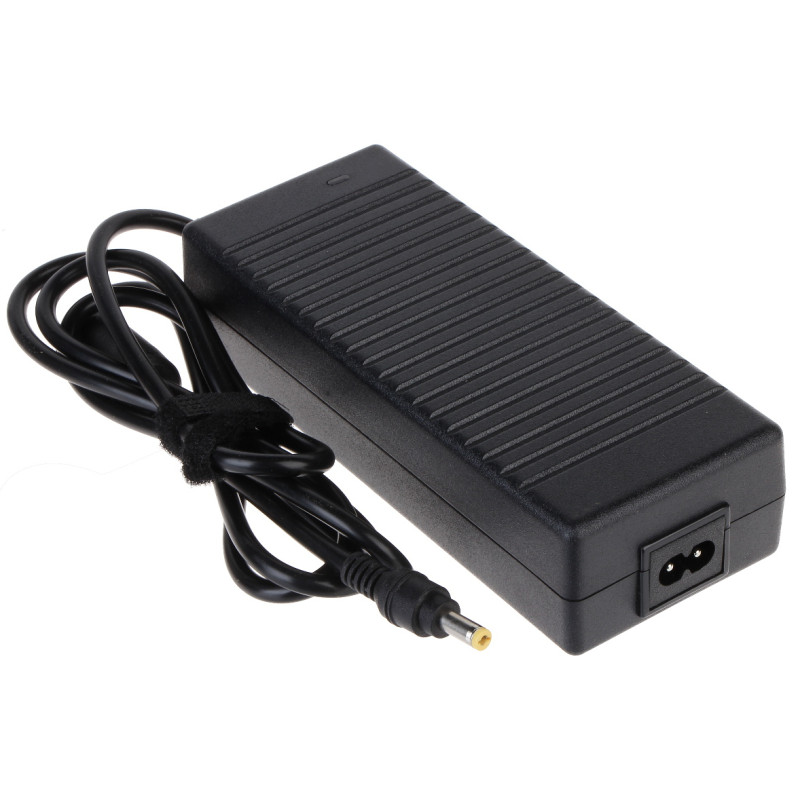

12V 10A 120W desktop switching power supply 2.1/5.5mm plug stabilized for LED CCTV cameras MW LIGHTING 12V/10A/5.5-TAY
zł187.85
Tax included
The 12V/10A/5.5-TAY switching power supply is a high-quality desktop device designed for stable and reliable power supply for CCTV monitoring systems, LED lighting, and other electronic devices requiring a constant 12V DC voltage. With an output current of 10A and a total power of 120W, this power supply provides a powerful and efficient energy source for extensive professional and home installations.
The main advantage of the device is its modern switching operating characteristic, which ensures high energy efficiency and excellent output voltage stability even during sudden load changes. The solid desktop housing allows for convenient and aesthetic placement of the power supply in an office, rack cabinet, or on a shelf. The output is terminated with the most popular market standard – a straight plug with dimensions of 2.1/5.5 mm, which guarantees full compatibility with most industrial cameras, recorders, and LED strips.
Safety and installation durability are priorities in the design of this model. A very important operational note is that if the power supply is intended for continuous operation (24 hours a day), the rated current should not exceed 80% of the maximum current, which in this case means a safe load of 8A. This prevents overheating and significantly extends the service life of internal components. It is also necessary to ensure free airflow around the housing to provide optimal cooling.
The device supports a wide range of input voltage (230V AC) and frequency (47-63Hz), making it resistant to fluctuations in power grid parameters. The product is covered by a two-year warranty, which is a confirmation of its reliability. Please note that a CEE-716/IEC-C7 power cord (the so-called figure-eight) must be purchased separately, as it is not included in the base set.
12V 10A 120W desktop switching power supply 2.1/5.5mm plug stabilized for LED CCTV cameras
Model: MW LIGHTING 12V/10A/5.5-TAY
EAN: 6931240051320 SKU: 931051325
- High current efficiency up to 10A
- Stabilized 12V DC output voltage
- High-efficiency switching design
- Standard 2.1/5.5 mm power plug
- Convenient desktop housing
- Wide AC input voltage range
- Ideal for CCTV systems and LED lighting
Description
The 12V/10A/5.5-TAY switching power supply is a high-quality desktop device designed for stable and reliable power supply for CCTV monitoring systems, LED lighting, and other electronic devices requiring a constant 12V DC voltage. With an output current of 10A and a total power of 120W, this power supply provides a powerful and efficient energy source for extensive professional and home installations.
The main advantage of the device is its modern switching operating characteristic, which ensures high energy efficiency and excellent output voltage stability even during sudden load changes. The solid desktop housing allows for convenient and aesthetic placement of the power supply in an office, rack cabinet, or on a shelf. The output is terminated with the most popular market standard – a straight plug with dimensions of 2.1/5.5 mm, which guarantees full compatibility with most industrial cameras, recorders, and LED strips.
Safety and installation durability are priorities in the design of this model. A very important operational note is that if the power supply is intended for continuous operation (24 hours a day), the rated current should not exceed 80% of the maximum current, which in this case means a safe load of 8A. This prevents overheating and significantly extends the service life of internal components. It is also necessary to ensure free airflow around the housing to provide optimal cooling.
The device supports a wide range of input voltage (230V AC) and frequency (47-63Hz), making it resistant to fluctuations in power grid parameters. The product is covered by a two-year warranty, which is a confirmation of its reliability. Please note that a CEE-716/IEC-C7 power cord (the so-called figure-eight) must be purchased separately, as it is not included in the base set.
Specification
Power supply type
Switching - modern technology ensuring stable operating parameters
Model identifier
12V/10A/5.5-TAY
Input voltage
230 V AC (Alternating current)
AC input frequency
47 Hz ... 63 Hz
Output voltage
12.0 V DC (Direct current)
Output current
10.0 A (Maximum)
Output power
120.0 W
Output voltage regulation
No (Stabilized DC voltage)
Number of outputs
1 pc.
Power connector type
12 V - Straight plug 2.1/5.5 mm
Plug polarity
Positive inside / Negative outside
Housing type
Desktop (freestanding)
Cooling
Passive (free airflow required)
Continuous operation conditions
Recommended load up to 80% of maximum current (8A) for 24h operation
Warranty
2 years (24 months)
Contents
1x 12V/10A/5.5-TAY power supply
Note: CEE-716/IEC-C7 power cord not included in the set.
Dimensions, Weight
Product dimensions: 170 x 70 x 40 mm (D x W x H)
Package dimensions: 210 x 105 x 70 mm (D x W x H)
Product weight: 490 g
Weight with packaging: 554 g
