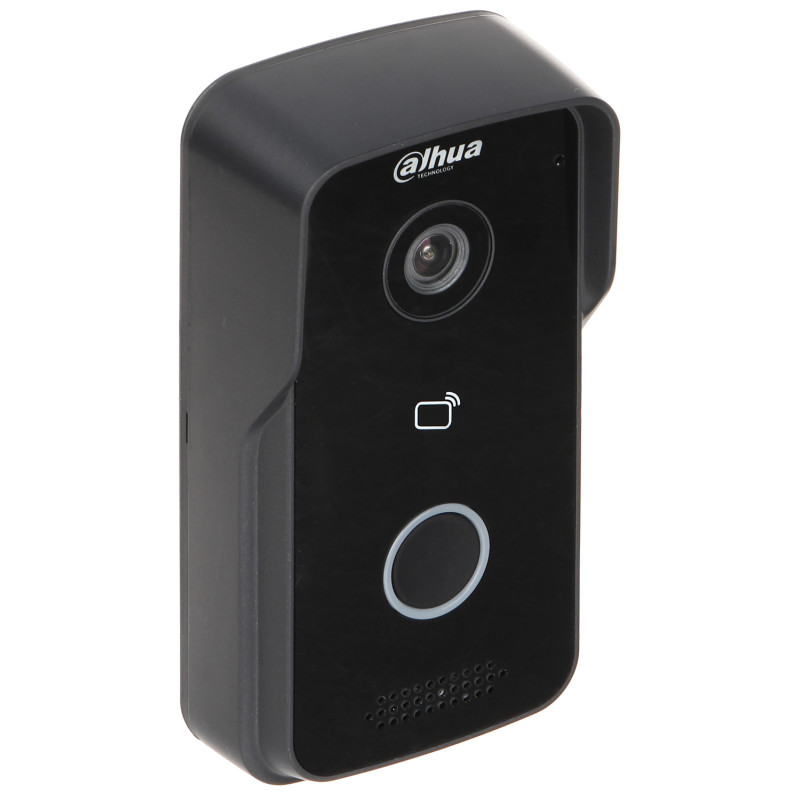

IP Video Intercom Outdoor Station RFID Card Reader PoE IR P2P Mobile App Two-Way Audio Full HD CMOS

Model: DAHUA VTO2111D-P-S3

EAN: 6931240086957 SKU: 931086958

• High resolution Full HD 2 Mpx (1920x1080) image for detailed visitor presentation
• Integrated 13.56 MHz S50 RFID proximity card reader with memory for up to 10,000 cards
• Support for modern H.265 video compression, saving network bandwidth and disk space
• Ability to work without a VTH monitor - full support via the free DMSS mobile application
• Built-in speaker and microphone with Full Duplex two-way communication support
• PoE (802.3af) or traditional 12V DC power supply for easy and flexible installation
• IP65 weather resistance and IK04 mechanical durability
• Wide 107-degree (h) lens viewing angle, eliminating blind spots

Description

The modern IP video intercom outdoor station is an advanced solution providing the highest level of access control for your property. The device has been designed for operation in demanding outdoor conditions, confirmed by its high IP65 ingress protection rating and a wide operating temperature range from -30°C to 60°C. Thanks to the use of a high-quality 2 Mpx CMOS sensor, the panel generates a crystal-clear Full HD image, allowing for flawless visitor identification at any time of day or night. The built-in IR infrared illuminator guarantees excellent visibility even in total darkness, ensuring the safety of residents around the clock.

A key advantage of this model is the integrated RFID proximity reader operating in the 13.56 MHz S50 standard. It allows for convenient opening of the gate or door using cards and key fobs, and the extensive memory allows for assigning up to 10,000 users. The device offers full installation freedom thanks to support for PoE (Power over Ethernet) power, which enables data and power transmission using a single twisted-pair cable. An exceptional feature is the ability to work autonomously – the panel can connect directly to a mobile application on a smartphone without the need to install an internal monitor, making it an extremely economical and modern solution. The solid construction in a graphite color blends perfectly with various facades, ensuring durability and aesthetics for years to come.

Specification

Standard and Compatibility

System: TCP/IP; Full compatibility with the DAHUA ecosystem and ONVIF standard, which enables cooperation with NVR recorders and CCTV monitoring systems.

Sensor and Lens

Sensor: 1/2.8 " 2 Mpx CMOS; Viewing angle: 107 ° (h); Focal length: fixed; High sensor sensitivity ensuring a clear image in various lighting conditions.

Resolution and Compression

Main stream: 1280 x 720, 800 x 480, 720 x 576; Sub stream: 1920 x 1080 (1080p), 800 x 480, 720 x 576, 352 x 288, 320 x 240; Compression standards: H.265 / H.264.

Night Illumination

Built-in IR infrared illuminator; Automatic day/night switching (ICR); Ensures visibility of callers' faces even in zero external lighting.

Audio Module

Built-in high-sensitivity microphone; Built-in high-power speakers; Communication: two-way, Full Duplex; Advanced noise and echo reduction algorithms.

Access Control and RFID

Built-in RFID proximity reader: Mifare 13.56 MHz (S50); User memory: 10,000 cards; Ability to remotely manage card permissions via application or WEB Interface.

Hardware Interfaces

1x Ethernet RJ-45 port (10/100 Mbps); 1x Output relay for electric strike control; 1x Reed switch input (door status); 1x Exit button input.

Mobile and Remote Access

Cloud access (P2P) without the need for a static IP address; Port: 37777; Support for DMSS application on Android and iOS systems; Built-in Web Server for configuration via browser.

DMSS Software

The DMSS (Digital Mobile Surveillance System) software is a comprehensive mobile application created by Dahua Technology. It allows users to remotely monitor in real-time, play back recordings, and interact with the video intercom system from anywhere. The application supports Push notifications, thanks to which you will immediately know about a call from the outdoor station. DMSS allows for audio-video conversations, taking screenshots, and, most importantly, remotely opening the gate or wicket. The interface is intuitive and user-friendly, and configuration via QR code scanning (P2P) takes a few seconds.

Selected Image Functions

D-WDR: Digital wide dynamic range of lighting (improving visibility in high-contrast scenes); 3D-DNR: Digital noise reduction in the image (cleaner image at night); Motion detection: Automatic notifications upon motion detection; Tamper detection: Alarm upon attempt to tear off the housing.

Construction and Color

Housing material: Durable plastic; Color: Graphite; Mounting type: Surface-mounted; Aesthetic, slim design facilitating installation on narrow fence posts.

Protection Classes

Protection rating: IP65 (additional silicone sealing required at the contact point with the mounting surface); Mechanical resistance: IK04; Adapted for year-round outdoor operation.

Power Supply and Energy

Power supply 1: PoE (802.3af); Power supply 2: 12 V DC / 1000 mA; Power consumption: ≤ 1 W (standby), ≤ 5 W (maximum during operation).

Environmental Parameters

Operating temperature: -30 °C ... 60 °C; Permissible humidity: 10% ... 95% (non-condensing); Supported languages: Polish, English, Bulgarian, Czech, Finnish, Slovenian, Slovak, Hungarian.

Contents

1x VTO2111D-P-S3 video intercom outdoor station

1x Set of mounting accessories (screws, wall plugs)

1x Quick installation and operation manual

Dimensions, Weight

Product dimensions: 35 x 71 x 135 mm (D x W x H)

Package dimensions: 75 x 100 x 165 mm (D x W x H)

Product weight: 160 g

Weight with packaging: 334 g
