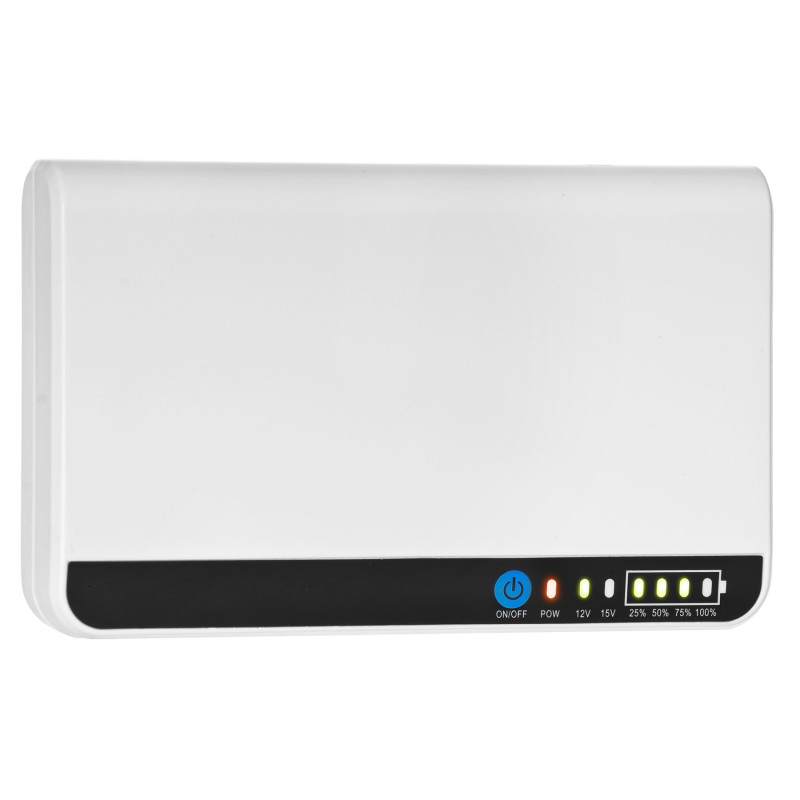

UPS DC 18W 12V 15V emergency power supply for router switch CCTV camera Li-Ion buffer power supply EAST UPS18-DC
zł202.72
Tax included
The UPS18-DC power supply is a modern and extremely compact line-interactive device designed to provide uninterrupted power for key network infrastructure components and low-power security systems. The 18W device is an ideal solution for maintaining the operation of WiFi routers, modems, switches, access points, and CCTV surveillance cameras in the event of sudden power outages.
The greatest advantage of the power supply is its versatility – the user can choose the output voltage between standard 12V and 15V DC using a simple switch, which allows for matching parameters to a wide range of electronic devices. The interior of the device houses an efficient set of three lithium-ion (Li-Ion) batteries with parameters of 3.7V / 2.2Ah each, which allows the device to operate for approximately 70 minutes at full load.
The compact desktop housing ensures the UPS does not take up valuable space and can be aesthetically placed next to the powered equipment. The power supply is equipped with a series of intelligent protections, including short-circuit and under-voltage protection, which guarantees the safety of both the power supply itself and the connected receivers. An intuitive LED signaling system allows for real-time monitoring of the device status, informing about the selected operating voltage, charging process, and the level of energy available in the batteries (25%, 50%, 75%, 100%). An additional automatic restart function after mains power restoration eliminates the need for manual system startup, which is crucial for remote monitoring installations.
UPS DC 18W 12V 15V emergency power supply for router switch CCTV camera Li-Ion buffer power supply
Model: EAST UPS18-DC
EAN: 6931240080955 SKU: 931080957
- 18W output power ensuring stable backup for network devices
- Selectable output voltage of 12V or 15V DC via a single switch
- Integrated high energy density Li-Ion battery (3 cells 3.7V / 2.2Ah)
- Long backup time of up to 70 minutes at full load (100%)
- Fast charging time for internal cells to 90% in just 1 hour
- Multi-point LED signaling indicating operating status and battery charge
- Advanced safety systems: short-circuit and under-voltage protection
- Auto-Restart function restoring power after mains voltage returns
- Compact and lightweight Desktop design ideal for discreet installation
- 2.1/5.5 mm standard output connector compatible with most routers
Description
The UPS18-DC power supply is a modern and extremely compact line-interactive device designed to provide uninterrupted power for key network infrastructure components and low-power security systems. The 18W device is an ideal solution for maintaining the operation of WiFi routers, modems, switches, access points, and CCTV surveillance cameras in the event of sudden power outages.
The greatest advantage of the power supply is its versatility – the user can choose the output voltage between standard 12V and 15V DC using a simple switch, which allows for matching parameters to a wide range of electronic devices. The interior of the device houses an efficient set of three lithium-ion (Li-Ion) batteries with parameters of 3.7V / 2.2Ah each, which allows the device to operate for approximately 70 minutes at full load.
The compact desktop housing ensures the UPS does not take up valuable space and can be aesthetically placed next to the powered equipment. The power supply is equipped with a series of intelligent protections, including short-circuit and under-voltage protection, which guarantees the safety of both the power supply itself and the connected receivers. An intuitive LED signaling system allows for real-time monitoring of the device status, informing about the selected operating voltage, charging process, and the level of energy available in the batteries (25%, 50%, 75%, 100%). An additional automatic restart function after mains power restoration eliminates the need for manual system startup, which is crucial for remote monitoring installations.
Specification
Active power
18 W - Parameter defining the power supply's ability to deliver the appropriate amount of real power to the connected device.
Input voltage
12 V DC (Direct Current) - DC voltage required to power and charge the device.
Output voltage
12 V / 15 V DC (switchable) - Allows matching the voltage to the requirements of a specific receiver (e.g., router or camera).
Charging time
Approximately 1 hour - Time required to charge internal battery cells to 90% capacity.
Estimated runtime
70 minutes at 100% load - Ensures long-term backup operation of devices in case of main power failure.
Internal battery
Set of 3 lithium-ion (Li-Ion) cells with parameters of 3.7 V / 2.2 Ah each, connected in a configuration ensuring optimal performance.
Number and type of outputs
1 x 2.1/5.5 mm socket - Standard barrel connector used in most consumer electronics devices.
Maximum output load
1.5 A at 12 V DC setting; 1.2 A at 15 V DC setting - Maximum current that an external device can draw.
Operating status signaling
Extensive LED panel: POW power indicator, selected voltage indicator (12V/15V), and 4-stage battery level indicator (25%, 50%, 75%, 100%).
Safety systems
Short Circuit Protection - cuts off output in case of failure; Under-voltage protection - protects the battery from deep discharge.
Special features
Automatic restart after mains power restoration (Auto-Restart), output overload status signaling, active battery charging signaling.
Purpose and application
Emergency power for: Wireless routers, Access Points, Network switches, CCTV industrial television cameras, alarm systems.
Housing type
Desktop - Housing designed to be placed on a flat surface, characterized by an aesthetic appearance and small dimensions.
Operating conditions
Ambient temperature: from 0 °C to 40 °C; Relative humidity: from 20% to 90% (non-condensing).
Brand and Manufacturer
EAST - Manufacturer specializing in emergency power systems and industrial electronics. Warranty: 2 years.
Contents
1x UPS18-DC power supply
1x User manual
Dimensions, Weight
Product dimensions: 88 x 141 x 27 mm (D x W x H)
Package dimensions: 100 x 145 x 30 mm (D x W x H)
Product weight: 275 g
Weight with packaging: 318 g
