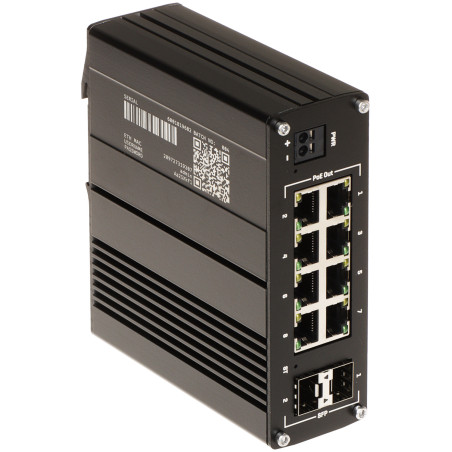

Industrial Managed PoE+ 8-Port Gigabit 2x SFP Industrial RMS L2 L3 Network Switch DIN Rail IP30 Teltonika TSW202
zł714.26
Tax included
The Teltonika TSW202 is a professional, industrial managed switch that redefines reliability standards in network communication. Equipped with 8 Gigabit Ethernet ports with full PoE+ (802.3at/af) support and 2 SFP slots for high-speed fiber optic connections, it serves as an ideal foundation for modern IP monitoring systems and industrial automation. The device is designed to operate in extreme environmental conditions, confirmed by a wide operating temperature range from -40°C to +75°C. The IP30-rated aluminum housing ensures not only durability but also effective heat dissipation.
One of the key advantages of the TSW202 is its versatility in management. Thanks to the proprietary Linux-based WitchOS, the user gains access to advanced Layer 2 (L2) and basic Layer 3 (L3) features. The switch supports protocols such as VLAN, QoS, IGMP Snooping, and security mechanisms based on the 802.1x standard. Full compatibility with the Teltonika Remote Management System (RMS) enables remote monitoring, configuration, and fleet updates from anywhere in the world, which drastically reduces service and maintenance costs. Support for EtherNet/IP and PROFINET industrial protocols allows for seamless integration into production systems.
The device features power flexibility thanks to a 2-pin industrial connector supporting voltages from 7V to 57V DC. Intelligent PoE power management allows for precise control and limiting of power consumption on each of the 8 ports individually, which is crucial when powering PTZ cameras or external access points. A robust design with DIN rail mounting capability and integrated grounding makes the TSW202 a product ready for immediate deployment in control cabinets and monitoring centers.
Industrial Managed PoE+ 8-Port Gigabit 2x SFP Industrial RMS L2 L3 Network Switch DIN Rail IP30
Model: Teltonika TSW202
EAN: 6931240037034 SKU: 931037034
- 8 Gigabit Ethernet RJ45 ports with PoE+ support (802.3af/at)
- 2 SFP slots (1 Gbps) for high-speed fiber optic connections and long-distance transmission
- L2 management with L3 features (static routing) via Web interface
- Full integration with the Teltonika RMS system for remote cloud management
- WitchOS software based on Linux ensuring stability and security
- Support for industrial protocols: EtherNet/IP, PROFINET, SNMP V2/V3
- Advanced network features: QoS, VLAN (802.1Q), STP/RSTP, LLDP, DHCP Client/Server
- Rugged IP30 aluminum housing resistant to shocks and harsh conditions
- Extremely wide operating temperature range: from -40°C to +75°C
- Easy mounting on a standard DIN rail
- Wide power supply range 7-57V DC with a 2-pin industrial connector
- Intelligent PoE control with PoE Port Restart and power consumption monitoring
- Security: 802.1x authentication and Radius
- Fanless design - silent operation and no mechanical parts prone to wear
Description
The Teltonika TSW202 is a professional, industrial managed switch that redefines reliability standards in network communication. Equipped with 8 Gigabit Ethernet ports with full PoE+ (802.3at/af) support and 2 SFP slots for high-speed fiber optic connections, it serves as an ideal foundation for modern IP monitoring systems and industrial automation. The device is designed to operate in extreme environmental conditions, confirmed by a wide operating temperature range from -40°C to +75°C. The IP30-rated aluminum housing ensures not only durability but also effective heat dissipation.
One of the key advantages of the TSW202 is its versatility in management. Thanks to the proprietary Linux-based WitchOS, the user gains access to advanced Layer 2 (L2) and basic Layer 3 (L3) features. The switch supports protocols such as VLAN, QoS, IGMP Snooping, and security mechanisms based on the 802.1x standard. Full compatibility with the Teltonika Remote Management System (RMS) enables remote monitoring, configuration, and fleet updates from anywhere in the world, which drastically reduces service and maintenance costs. Support for EtherNet/IP and PROFINET industrial protocols allows for seamless integration into production systems.
The device features power flexibility thanks to a 2-pin industrial connector supporting voltages from 7V to 57V DC. Intelligent PoE power management allows for precise control and limiting of power consumption on each of the 8 ports individually, which is crucial when powering PTZ cameras or external access points. A robust design with DIN rail mounting capability and integrated grounding makes the TSW202 a product ready for immediate deployment in control cabinets and monitoring centers.
Specification
Standards and protocols
IEEE 802.3af (PoE), IEEE 802.3at (PoE+), Ethernet, EtherNet/IP, PROFINET, SNMP V2/V3, LLDP, IPv6
LAN ports
8 x RJ45 10/100/1000 Mbps (PoE+), 2 x SFP (Uplink 1000 Mbps)
Management
Web interface (WWW GUI), Teltonika RMS (Remote Management System), WitchOS (Linux based)
PoE power supply
Maximum output power: 30 W / port (Ports 1-8). Maximum total power (PoE budget): up to 240 W
Layer 2 (L2) features
VLAN (IEEE 802.1Q), Port Isolation, Loop Protection, Spanning Tree (STP/RSTP), Port Mirroring, Cable diagnostics
Layer 3 (L3) features
Static routing for IPv4 and IPv6 protocols
Security
IEEE 802.1x authentication (Port-based access control), Radius, Storm Control
Traffic optimization
QoS (802.1p/DSCP), Traffic prioritization (SP, WFQ, WRR), Auto MDI/MDI-X detection
Performance
MAC address table: 8k entries, Gigabit throughput on all Ethernet ports
Power supply
Voltage range: 7 ... 57 V DC (2-pin industrial connector), internal power consumption: ≤ 8 W, grounding
Software
WitchOS software is an advanced operating system for Teltonika switches, based on a stable Linux kernel. It provides an intuitive and clear graphical interface accessible via a web browser, which facilitates the configuration of network parameters. WitchOS offers a wide range of traffic management features, including VLAN (802.1Q) support for network isolation, QoS mechanisms for data packet prioritization, and Spanning Tree (STP/RSTP) protocols. The system also enables advanced port and cabling diagnostics. An important aspect is the support for Teltonika RMS, which allows for remote software updates and secure remote access without a public IP address. The system supports EtherNet/IP and PROFINET industrial protocols, making it compatible with PLC automation systems.
Construction
Material: Aluminum, Ingress protection: IP30, Cooling: Passive, Shock resistance, Reset button
Operating conditions
Operating temperature: -40 °C ... 75 °C, Permissible air humidity (non-condensing)
Certificates
CE, UKCA, FCC, RoHS, WEEE
Contents
1x TSW202 Switch
1x Quick Start Guide (Power supply not included)
Dimensions, Weight
Product dimensions: 122 x 132 x 44 mm (D x W x H)
Package dimensions: 50 x 140 x 135 mm (D x W x H)
Product weight: 600 g
Weight with packaging: 644 g
