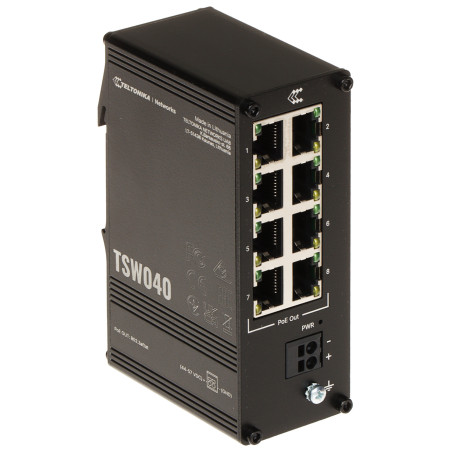

8-Port Industrial PoE Switch 10/100 Mbps IP30 Housing DIN Rail Ethernet Unmanaged Teltonika TSW040
zł304.08
Tax included
The professional TSW040 industrial switch is an advanced networking solution from the renowned manufacturer Teltonika, designed for operation in the most demanding environmental conditions. The device is equipped with 8 RJ45 ports supporting 802.3af and 802.3at PoE power standards, allowing for simultaneous data transmission and power delivery to end devices such as IP cameras, Wi-Fi access points, or industrial terminals using a single twisted-pair cable.
One of the key advantages of the TSW040 model is its robust aluminum housing with an IP30 protection rating, which provides excellent resistance to mechanical damage and dust. Compact dimensions and an integrated DIN rail mount make the switch ideal for installation in densely packed control cabinets and switchboards. The device is designed to operate flawlessly in an extreme temperature range from -40°C to +75°C, making it an indispensable infrastructure component in unheated production halls, warehouses, or outdoor monitoring systems.
TSW040 is an unmanaged switch, which guarantees full Plug and Play functionality – the device does not require complex software configuration, significantly reducing installation time and minimizing the risk of network errors. Support for Auto MDI/MDI-X detection allows for automatic transmission mode adjustment, while advanced surge protection (up to 71.2V), overvoltage protection (up to 60V), and reverse polarity protection (up to 80V) ensure stable and secure network operation. A wide input voltage range (7-57V DC) and a dedicated 2-pin industrial power connector provide flexibility and reliability under any power conditions.
8-Port Industrial PoE Switch 10/100 Mbps IP30 Housing DIN Rail Ethernet Unmanaged
Model: Teltonika TSW040
EAN: 6931240089316 SKU: 931089319
- 8 RJ45 LAN ports with full PoE power support (802.3af/at)
- 10/100 Mbps data transmission speed on each port
- Rugged housing made of high-quality aluminum
- Wide operating temperature range from -40°C to +75°C
- Easy mounting on a standard DIN rail
- Wide DC input voltage range from 7V to 57V
- IP30 ingress protection rating for industrial environments
- Built-in surge and overvoltage protection
- Reverse polarity protection for input voltage
- Auto MDI/MDI-X detection for all ports
- Resistance to industrial-grade shocks and vibrations
- LED indicators for Power and Link/Act status
- Plug and Play device – no configuration required
- Chassis grounding support
- Low power consumption (up to 2W without PoE load)
Description
The professional TSW040 industrial switch is an advanced networking solution from the renowned manufacturer Teltonika, designed for operation in the most demanding environmental conditions. The device is equipped with 8 RJ45 ports supporting 802.3af and 802.3at PoE power standards, allowing for simultaneous data transmission and power delivery to end devices such as IP cameras, Wi-Fi access points, or industrial terminals using a single twisted-pair cable.
One of the key advantages of the TSW040 model is its robust aluminum housing with an IP30 protection rating, which provides excellent resistance to mechanical damage and dust. Compact dimensions and an integrated DIN rail mount make the switch ideal for installation in densely packed control cabinets and switchboards. The device is designed to operate flawlessly in an extreme temperature range from -40°C to +75°C, making it an indispensable infrastructure component in unheated production halls, warehouses, or outdoor monitoring systems.
TSW040 is an unmanaged switch, which guarantees full Plug and Play functionality – the device does not require complex software configuration, significantly reducing installation time and minimizing the risk of network errors. Support for Auto MDI/MDI-X detection allows for automatic transmission mode adjustment, while advanced surge protection (up to 71.2V), overvoltage protection (up to 60V), and reverse polarity protection (up to 80V) ensure stable and secure network operation. A wide input voltage range (7-57V DC) and a dedicated 2-pin industrial power connector provide flexibility and reliability under any power conditions.
Specification
LAN Ports
8 x RJ45 (8 x PoE 802.3af/at)
Transmission Speed
10 / 100 Mbps - All 8 LAN & PoE ports
Management
None (Unmanaged switch)
Maximum Output Power
30 W per single PoE port (Ports 1 to 8)
PoE Power Budget
Maximum total output power is 240 W
MAC Address Table
2k - ensures efficient traffic routing in local networks
Design Features
Auto MDI/MDI-X detection, Rugged aluminum housing, Shock resistance, Grounding
Mounting
Dedicated DIN rail mount integrated with the housing
Protection Class
IP30 - protection against solid objects larger than 2.5mm
Electrical Protections
Surge (64.4V - 71.2V), Overvoltage (max. 60V), Reverse polarity (max. 80V)
Input Power
7 ... 57 V DC via 2-pin industrial socket or 44 ... 57 V DC via PoE IN
Power Consumption
Idle: ≤ 2 W, Maximum with full PoE load: ≤ 246 W
Environmental Parameters
Operating temperature: -40 °C ... 75 °C, Resistance to harsh industrial conditions
Certificates and Standards
CE, UKCA, FCC - compliance with international safety standards
Software and Interface
The device does not have a web interface or management software. It operates in Plug and Play mode, meaning that once power and network cables are connected, the switch automatically negotiates connection speed and allocates PoE power to connected receivers according to the 802.3af/at standard. The lack of configuration requirements ensures maximum reliability in systems where VLAN segmentation or advanced QoS is not required.
Contents
1x TSW040 Switch
1x Quick Start Guide (power supply not included)
Dimensions, Weight
Product dimensions: 75 x 113 x 41 mm (D x W x H)
Package dimensions: 50 x 130 x 85 mm (D x W x H)
Product weight: 250 g
Weight with packaging: 274 g
