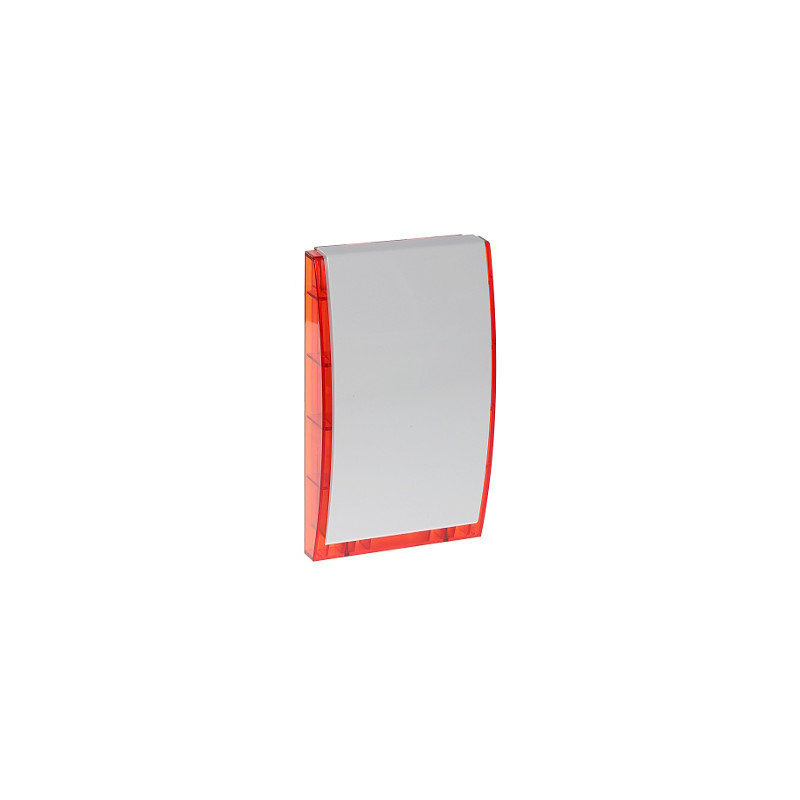

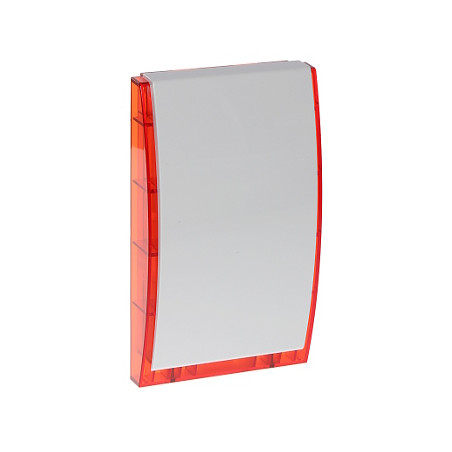

External Optical-Acoustic LED Piezo Siren with Battery and Tamper Protection SATEL SP-4002-R
zł271.74
Tax included
The SP-4002-R external siren is a professional optical-acoustic device designed by the renowned company Satel, dedicated to operation in advanced intrusion and robbery signaling systems. Its main task is to effectively deter potential intruders and notify the surroundings of an alarm situation using a very loud sound signal with an intensity of up to 120 dB and intense light flashes generated by modern LED diodes.
One of the key advantages of this model is the built-in 1.2Ah emergency battery, which guarantees uninterrupted operation of the siren even in the event of a complete cutoff of external power by a saboteur. The housing construction is made of high-impact polycarbonate, which ensures extreme resistance to mechanical damage, impacts, and harsh weather conditions, such as UV radiation or heavy rain. Thanks to this, the device maintains an aesthetic appearance and full functionality for many years of operation.
System security is enhanced by advanced tamper mechanisms that immediately trigger an alarm when an attempt is made to open the cover or tear the device from the mounting surface. The SP-4002-R is an ideal solution for single-family homes, commercial facilities, and industrial sites, combining reliability, modern technology, and the highest degree of protection.
External Optical-Acoustic LED Piezo Siren with Battery and Tamper Protection
Model: SATEL SP-4002-R
EAN: 6931240059623 SKU: 931059628
- Built-in 1.2Ah battery providing emergency power supply
- Very high sound intensity reaching up to 120 dB
- Optical signaling based on energy-efficient and bright LED diodes
- Durable housing made of high-impact, UV-resistant polycarbonate
- Dual tamper protection (opening and removal)
- Choice of alarm signal from several available sounds
- Internal metal cover protecting key electronic components
- Wide operating temperature range from -35°C to +55°C
- Powered by an external 12V DC power supply
- Polish product from the renowned SATEL brand
Description
The SP-4002-R external siren is a professional optical-acoustic device designed by the renowned company Satel, dedicated to operation in advanced intrusion and robbery signaling systems. Its main task is to effectively deter potential intruders and notify the surroundings of an alarm situation using a very loud sound signal with an intensity of up to 120 dB and intense light flashes generated by modern LED diodes.
One of the key advantages of this model is the built-in 1.2Ah emergency battery, which guarantees uninterrupted operation of the siren even in the event of a complete cutoff of external power by a saboteur. The housing construction is made of high-impact polycarbonate, which ensures extreme resistance to mechanical damage, impacts, and harsh weather conditions, such as UV radiation or heavy rain. Thanks to this, the device maintains an aesthetic appearance and full functionality for many years of operation.
System security is enhanced by advanced tamper mechanisms that immediately trigger an alarm when an attempt is made to open the cover or tear the device from the mounting surface. The SP-4002-R is an ideal solution for single-family homes, commercial facilities, and industrial sites, combining reliability, modern technology, and the highest degree of protection.
Specification
Device type
External optical-acoustic siren with wired control, designed for facade mounting in intrusion detection systems.
Acoustic signaling
Piezoelectric transducer generating a modulated high-frequency sound signal with an intensity of up to 120 dB, ensuring audibility over a long distance.
Optical signaling
A system of ultra-bright red LED diodes, characterized by low power consumption and a very long service life compared to traditional bulbs.
Emergency power supply
Built-in 12V lead-acid battery with a capacity of 1.2 Ah, maintaining full signaling efficiency after the loss of the main power source.
Tamper protection
Two-section tamper switch protecting against unauthorized removal of the housing (opening) and attempts to tear the device from the wall.
Housing construction
Made of PC Lexan polycarbonate with high mechanical resistance, additionally equipped with an internal galvanized metal cover protecting the PCB and battery.
Power parameters
Rated voltage 12V DC with a tolerance of +/- 15%. The device requires a stabilized external power supply from the alarm system.
Current consumption
Maximum current consumption during simultaneous optical and acoustic signaling and battery charging is 260 mA.
Operating environment
Device adapted for operation in environmental class III; the temperature range from -35 °C to +55 °C allows for installation in any climatic conditions.
Triggering method
The siren has control inputs triggered by applying or cutting off ground (GND) or voltage (+12V), configurable via jumpers.
Physical dimensions
Height: 254 mm, Width: 148 mm, Depth: 64 mm. Ergonomic shape facilitating rainwater drainage.
Weight
Total weight of the device with the installed battery is 1.2 kg.
Installation advantages
Convenient screw terminals for wire connection, large space inside the housing for cable routing, and a built-in spirit level to facilitate installation.
Warranty and Quality
Product covered by a 24-month manufacturer's warranty. Meets strict CE safety standards for alarm systems.
Contents
1x External siren SP-4002-R
1x Built-in 1.2Ah battery
1x Internal metal cover
1x Set of mounting screws
1x User manual
Dimensions, Weight
Product dimensions: 64 x 148 x 254 mm (D x W x H)
Packaging dimensions: 70 x 160 x 260 mm (D x W x H)
Product weight: 1200 g
Weight with packaging: 1250 g
