- New

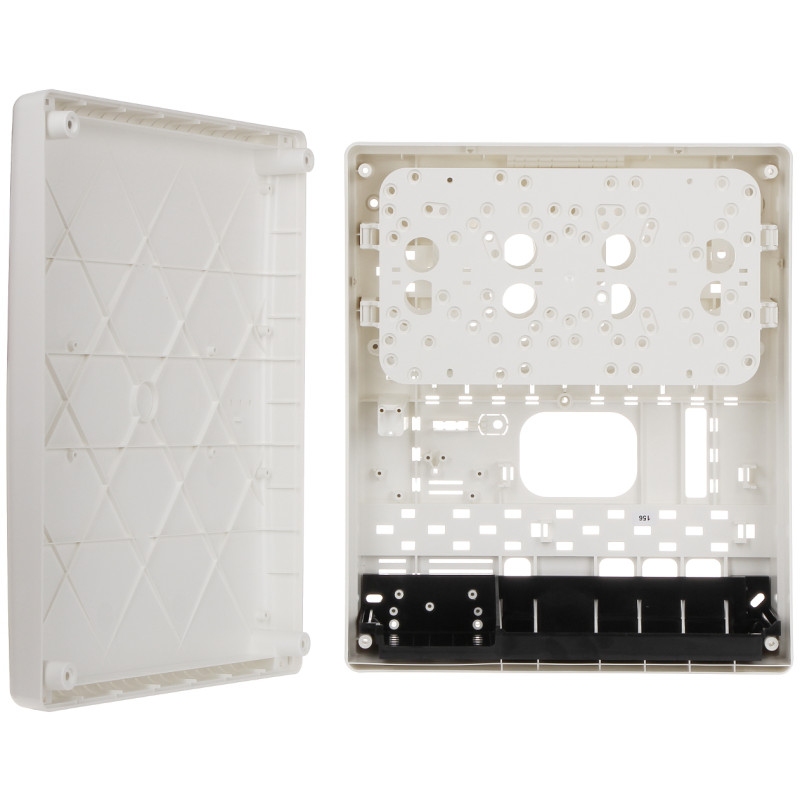

Professional surface-mounted enclosure for Grade 3 alarm systems with space for 18Ah battery white ABS solid SATEL OPU-3-P
zł227.23
Tax included
The professional OPU-3-P surface-mounted enclosure was designed by the renowned security systems manufacturer, SATEL. It is a key component of advanced intrusion and robbery signaling systems (SSWiN), providing not only an aesthetic finish to the installation but, above all, physical protection for the heart of the system – the alarm control panel. Made of high-quality white polystyrene, it is characterized by high mechanical strength and resistance to aging.
One of the most important advantages of this enclosure is its full compliance with the rigorous EN 50131 Grade 3 standard, which allows it to be used in high-risk burglary facilities such as banks, museums, or weapons depots. The enclosure design provides space for mounting an efficient battery with a capacity of up to 18Ah, which guarantees a long system backup time in the event of a mains power failure. Dedicated mounting points for 40VA or 60VA transformers have also been prepared inside, which facilitates cable organization.
Double tamper protection effectively informs the system of any interference attempt, both by opening the door and by attempting to tear the entire device off the wall. The modern, neutral design makes the enclosure blend perfectly with the decor of modern office and residential interiors, remaining a discreet element of the security system. Thanks to the well-thought-out design, the process of installing control panels and expansion modules is fast and intuitive, which significantly shortens the installer's working time. The product was manufactured in Poland, which guarantees the highest quality of workmanship and technical support from the manufacturer.
Professional surface-mounted enclosure for Grade 3 alarm systems with space for 18Ah battery white ABS solid
Model: SATEL OPU-3-P
EAN: 6931240025062 SKU: 931025069
- Compliance with EN 50131 Grade 3 requirements
- Double tamper protection: opening and detachment
- Space for 18Ah / 12V battery
- Possibility to mount 40VA or 60VA transformers
- Made of durable, white ABS plastic
- Aesthetic appearance and surface mounting
- Wide compatibility with INTEGRA control panels and GSM modules
- Product of the Polish manufacturer SATEL
Description
The professional OPU-3-P surface-mounted enclosure was designed by the renowned security systems manufacturer, SATEL. It is a key component of advanced intrusion and robbery signaling systems (SSWiN), providing not only an aesthetic finish to the installation but, above all, physical protection for the heart of the system – the alarm control panel. Made of high-quality white polystyrene, it is characterized by high mechanical strength and resistance to aging.
One of the most important advantages of this enclosure is its full compliance with the rigorous EN 50131 Grade 3 standard, which allows it to be used in high-risk burglary facilities such as banks, museums, or weapons depots. The enclosure design provides space for mounting an efficient battery with a capacity of up to 18Ah, which guarantees a long system backup time in the event of a mains power failure. Dedicated mounting points for 40VA or 60VA transformers have also been prepared inside, which facilitates cable organization.
Double tamper protection effectively informs the system of any interference attempt, both by opening the door and by attempting to tear the entire device off the wall. The modern, neutral design makes the enclosure blend perfectly with the decor of modern office and residential interiors, remaining a discreet element of the security system. Thanks to the well-thought-out design, the process of installing control panels and expansion modules is fast and intuitive, which significantly shortens the installer's working time. The product was manufactured in Poland, which guarantees the highest quality of workmanship and technical support from the manufacturer.
Specification
Device type
Enclosure for alarm control panels and expansion modules
Purpose
Indoor surface mounting (SSWiN alarm systems)
Compatibility
Compatibility with control panels: INTEGRA (24, 32, 64, 128), CA-6-P, CA-10-P, GSM modules, GPRS, input and output expanders, and ACCO controllers.
Security Grade
EN-50131 Grade 3 - intended for installations with medium and high risk of burglary.
Ingress protection class
IP20 - protection against contact with live parts and penetration of solid objects larger than 12.5mm.
Tamper protection
Double TAMPER contact reacting to the opening of the enclosure cover and the detachment of the entire module from the substrate (wall).
Battery space
Dedicated space for mounting a standard 12V gel battery with a capacity of up to 18Ah.
Transformer
Possibility of optional mounting of a 40VA or 60VA transformer (power supply and transformer not included).
Material
High-quality white polystyrene, resistant to mechanical damage and UV radiation.
Operating temperature
Suitable for operation in stable indoor conditions: -10 °C ... 40 °C.
Aesthetics and Design
Modern, rounded shape without sharp edges, matching elegant office and residential interiors.
Power supply included
None - passive enclosure requiring equipment with an appropriate power module depending on system needs.
Certification
Full compliance with European safety standards for alarm systems.
Country of origin
Poland - SATEL Sp. z o.o.
Contents
1x OPU-3-P enclosure
1x Set of mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 108 x 324 x 382 mm (D x W x H)
Packaging dimensions: 125 x 385 x 330 mm (D x W x H)
Product weight: 1850 g
Weight with packaging: 2212 g
