- New

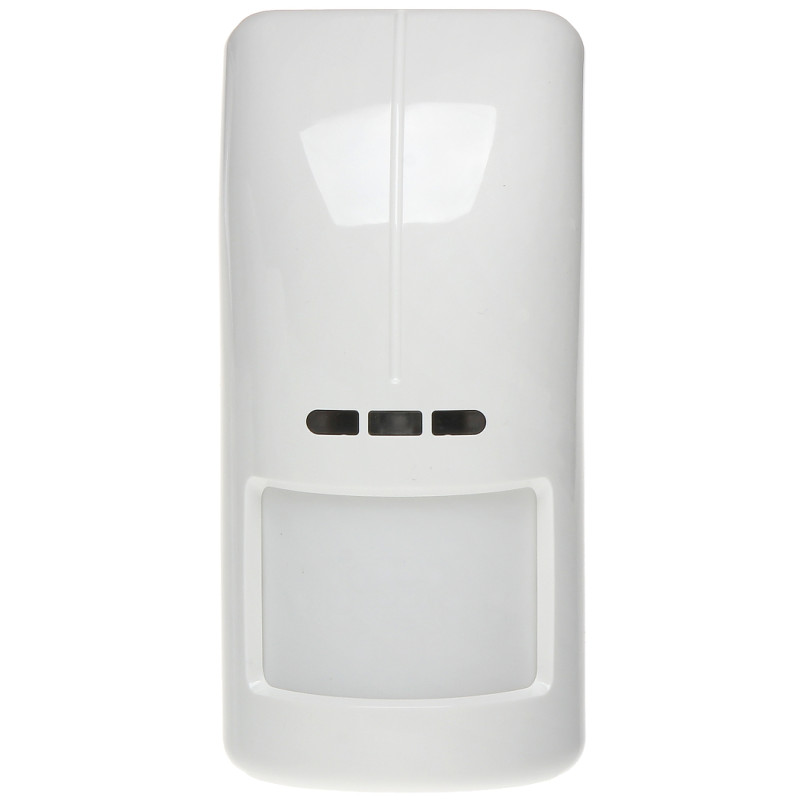

Digital dual outdoor PIR and MW detector 12x15m with anti-masking SATEL OPAL
zł485.74
Tax included
The OPAL digital dual detector is an advanced device designed for operation in harsh outdoor conditions. By combining infrared (PIR) and microwave (MW) detection technologies, the detector is characterized by exceptional resistance to false alarms caused by wind, rain, sunlight, or small animals. The device is equipped with a dual pyroelement and a digital detection algorithm with advanced temperature compensation, ensuring high repeatability of operating parameters and effectiveness regardless of changing environmental conditions.
A key advantage of the OPAL model is the built-in anti-masking function, which effectively detects attempts to cover the lens or sensor, increasing the security level of the system. The IP54-rated enclosure and well-thought-out design allow for outdoor installation without the need for additional covers, although optional mounting accessories are available. The detector offers a detection range of up to 12 x 15 meters with a 100-degree viewing angle. The user has the ability to adjust sensitivity in 16 steps using configuration buttons. Thanks to built-in LEDs, the operating status signaling is clear and easy to verify during installation. The device meets the rigorous EN50131-2-2 Grade 2 standards, confirming its high quality and reliability in professional alarm systems.
Digital dual outdoor PIR and MW detector 12x15m with anti-masking
Model: SATEL OPAL
EAN: 6931240019016 SKU: 931019016
- Dual PIR + MW detection
- Anti-masking function
- IP54 ingress protection rating
- Digital temperature compensation
- Pet immunity up to 20 kg
- 16-level sensitivity adjustment
- LED signaling (3 colors)
- Tamper protection (opening/detachment)
Description
The OPAL digital dual detector is an advanced device designed for operation in harsh outdoor conditions. By combining infrared (PIR) and microwave (MW) detection technologies, the detector is characterized by exceptional resistance to false alarms caused by wind, rain, sunlight, or small animals. The device is equipped with a dual pyroelement and a digital detection algorithm with advanced temperature compensation, ensuring high repeatability of operating parameters and effectiveness regardless of changing environmental conditions.
A key advantage of the OPAL model is the built-in anti-masking function, which effectively detects attempts to cover the lens or sensor, increasing the security level of the system. The IP54-rated enclosure and well-thought-out design allow for outdoor installation without the need for additional covers, although optional mounting accessories are available. The detector offers a detection range of up to 12 x 15 meters with a 100-degree viewing angle. The user has the ability to adjust sensitivity in 16 steps using configuration buttons. Thanks to built-in LEDs, the operating status signaling is clear and easy to verify during installation. The device meets the rigorous EN50131-2-2 Grade 2 standards, confirming its high quality and reliability in professional alarm systems.
Specification
Application
Outdoor
Pyroelement
Dual
Sensor type
Passive infrared (PIR) and microwave (MW)
Recommended mounting height
2.4 m
Range
max. 12 x 15 m
Detection angle
100 °
Sensitivity adjustment
16-level - Controlled via buttons
Alarm output
NC
LED signaling
4s Green - MW sensor, 2s Red - Alarm signaling, 4s Yellow - PIR sensor
Tamper output
NC
Microwave frequency band
24 GHz
Pet immunity
<= 20 kg
Anti-masking function
Yes
Violation signaling time
2 s
Power supply
12 V DC / 20 mA
Contents
1x OPAL dual detector
1x User manual
Dimensions, Weight
Product dimensions: 58 x 65 x 138 mm (D x W x H)
Packaging dimensions: 65 x 70 x 155 mm (D x W x H)
Product weight: 176 g
Weight with packaging: 220 g
