- New

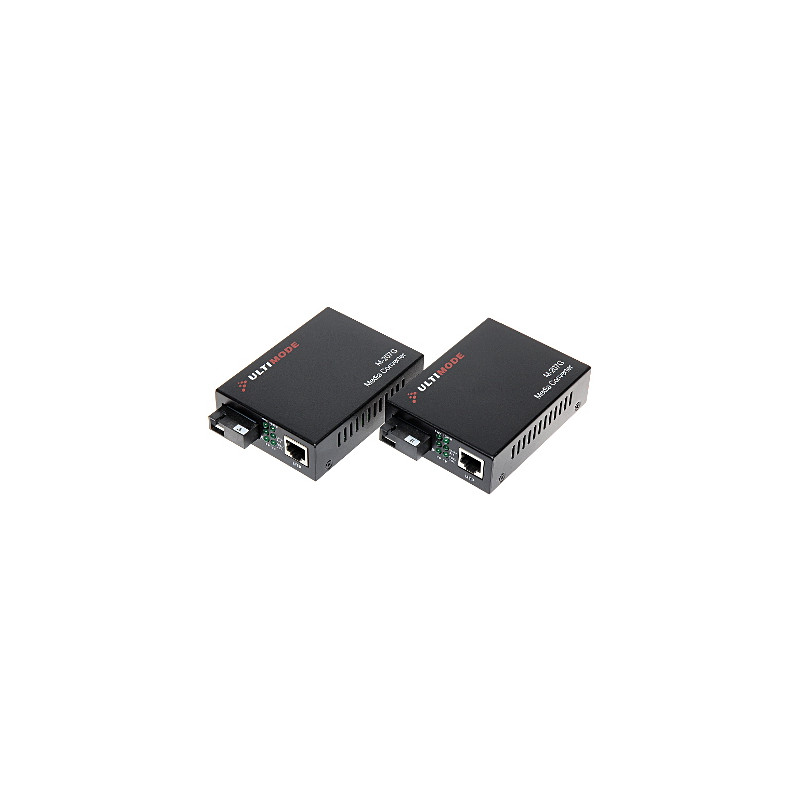

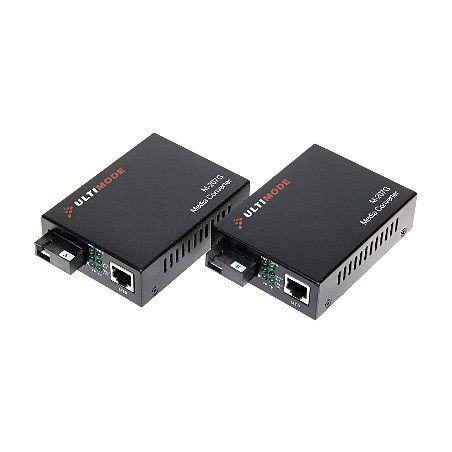

Gigabit Ethernet fiber optic media converter TX+RX set WDM 20km range SC connector single-mode ULTIMODE M-207G
zł374.36
Tax included
The professional M-207G media converter set is a complete solution for converting data streams from traditional copper STP/UTP twisted-pair cables to modern single-mode fiber optic cables. The set consists of a transmitter (TX) and a receiver (RX), allowing for the immediate establishment of a fiber optic link up to 20 kilometers long.
The main advantage of the device is the use of WDM (Wavelength Division Multiplexing) technology, which enables bidirectional signal transmission using only a single fiber optic strand. This allows for significant savings in cabling costs and simplifies the installation process. The device operates in the II and III transmission windows (1310/1550 nm), ensuring stable and fast data transmission at gigabit speeds (10/100/1000 Mbps).
The set is equipped with durable SC connectors, which guarantee a secure and stable optical connection. Thanks to the MDI/MDI-X auto-detection function, the converter automatically recognizes the type of connected network cable, eliminating the need for crossover cables. The device is characterized by high reliability and simple Plug & Play operation – no initial configuration is required. LED indicators on the front panel allow for real-time monitoring of power status, fiber optic connection, and LAN port activity. It is an ideal solution for connecting distant buildings, IP CCTV monitoring, and expanding campus networks where a high level of resistance to electromagnetic interference is required.
Gigabit Ethernet fiber optic media converter TX+RX set WDM 20km range SC connector single-mode
Model: ULTIMODE M-207G
EAN: 6931240089811 SKU: 931089814
- Complete transmitter and receiver (TX/RX) set using WDM technology
- Transmission over a single single-mode fiber optic strand
- High-speed Gigabit Ethernet 10/100/1000 Mbps transmission
- Signal transmission range up to 20 km
- SC optical connectors for high durability
- Automatic MDI/MDI-X mode detection on the LAN port
- LED indicators for easy diagnostics
- 5V DC power adapters included in the set
Description
The professional M-207G media converter set is a complete solution for converting data streams from traditional copper STP/UTP twisted-pair cables to modern single-mode fiber optic cables. The set consists of a transmitter (TX) and a receiver (RX), allowing for the immediate establishment of a fiber optic link up to 20 kilometers long.
The main advantage of the device is the use of WDM (Wavelength Division Multiplexing) technology, which enables bidirectional signal transmission using only a single fiber optic strand. This allows for significant savings in cabling costs and simplifies the installation process. The device operates in the II and III transmission windows (1310/1550 nm), ensuring stable and fast data transmission at gigabit speeds (10/100/1000 Mbps).
The set is equipped with durable SC connectors, which guarantee a secure and stable optical connection. Thanks to the MDI/MDI-X auto-detection function, the converter automatically recognizes the type of connected network cable, eliminating the need for crossover cables. The device is characterized by high reliability and simple Plug & Play operation – no initial configuration is required. LED indicators on the front panel allow for real-time monitoring of power status, fiber optic connection, and LAN port activity. It is an ideal solution for connecting distant buildings, IP CCTV monitoring, and expanding campus networks where a high level of resistance to electromagnetic interference is required.
Specification
Device type
Gigabit Ethernet fiber optic media converter (TX + RX set)
Transmission technology
WDM (Wavelength Division Multiplexing) - bidirectional transmission over a single fiber
Fiber type
Single-mode, range up to 20 km
Optical connectors
SC / PC (push-pull type, high contact reliability)
Copper ports (LAN)
1 x RJ-45 (UTP/STP), support for IEEE 802.3 and IEEE 802.3u standards
Transmission speed
Automatic detection 10 / 100 / 1000 Mbps
Optical wavelength
TX: 1550 nm / RX: 1310 nm (Transmitter), TX: 1310 nm / RX: 1550 nm (Receiver)
Automatic functions
Auto-MDI/MDI-X (automatic crossover), connection speed auto-negotiation
Optical indicators
LEDs indicating power, optical port activity, and LAN connection status
Conversion method
Store-and-Forward or Cut-Through depending on load
Power supply
5 V DC / 1.2 A (external power adapters included in the set)
Operating conditions
Temperature: 0 °C ... 50 °C, humidity up to 95% non-condensing
Standards and certificates
CE, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p
Manufacturer
ULTIMODE (2-year warranty)
Contents
1x Transmitter (TX)
1x Receiver (RX)
2x 5V DC / 1.2A power adapter
1x Quick start guide
Dimensions, Weight
Product dimensions: 70 x 105 x 26 mm (D x W x H)
Package dimensions: 130 x 240 x 110 mm (D x W x H)
Product weight: 176 g
Weight with packaging: 648 g
