- New

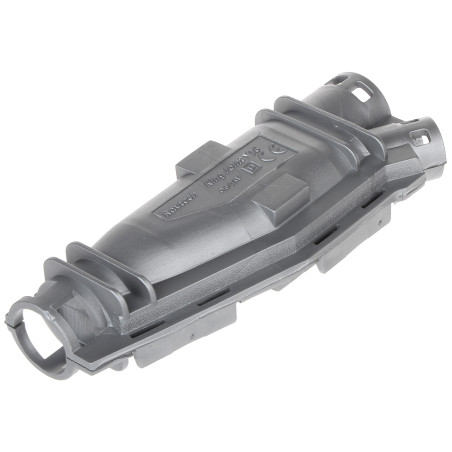

Gelbox IPx8 branch joint gel box for ground hermetic protection of electrical connections 1kV RayTech KING-JOINT-Y16
zł206.64
Tax included
The RayTech KING-JOINT-Y16 branch joint is a professional solution designed for the hermetic connection and branching of electrical cables in difficult environmental conditions. Thanks to the use of innovative technology filled with a specialized sealing gel, this product guarantees the highest degree of IPx8 protection, which allows for its safe use in places with very high humidity levels, and even in full submersion or directly in the ground.The main advantages of the product are primarily uncomplicated installation and reliability. The box has been designed in such a way as to allow installation in any orientation – both vertical and horizontal, without the risk of the sealing compound leaking. This is particularly important in garden installations, irrigation systems, or outdoor lighting, where exposure to water is constant.The silicone gel used is completely safe for the user and the natural environment. One of its key features is that it does not harden, which makes the connection 're-entry' – at any time, you can open the joint, modify the installation, or replace the cable, and then close the housing again without the need to replenish the gel. The housing is made of durable plastic, resistant to impacts and the effects of external factors. This product is widely used in low-voltage electrical installations up to 1kV, providing durable insulation and protection against contact corrosion.
Gelbox IPx8 branch joint gel box for ground hermetic protection of electrical connections 1kV
Model: RayTech KING-JOINT-Y16
EAN: 6931240044377 SKU: 931044372
- Highest IPx8 ingress protection rating allowing for operation in full submersion
- Filled with specialized, non-toxic sealing gel
- Vertical and horizontal mounting possible without risk of gel leakage
- Re-entry design allowing multiple access to the connection
- Resistance to aging processes, weather conditions, and UV radiation
- Provides excellent voltage insulation up to 1 kV
- Quick and clean installation without the need for mixing resins
- Environmentally safe and easily removable sealing compound
Description
The RayTech KING-JOINT-Y16 branch joint is a professional solution designed for the hermetic connection and branching of electrical cables in difficult environmental conditions. Thanks to the use of innovative technology filled with a specialized sealing gel, this product guarantees the highest degree of IPx8 protection, which allows for its safe use in places with very high humidity levels, and even in full submersion or directly in the ground.
The main advantages of the product are primarily uncomplicated installation and reliability. The box has been designed in such a way as to allow installation in any orientation – both vertical and horizontal, without the risk of the sealing compound leaking. This is particularly important in garden installations, irrigation systems, or outdoor lighting, where exposure to water is constant.The silicone gel used is completely safe for the user and the natural environment. One of its key features is that it does not harden, which makes the connection 're-entry' – at any time, you can open the joint, modify the installation, or replace the cable, and then close the housing again without the need to replenish the gel. The housing is made of durable plastic, resistant to impacts and the effects of external factors. This product is widely used in low-voltage electrical installations up to 1kV, providing durable insulation and protection against contact corrosion.Specification
Voltage insulation
1 kV - Ensures full safety in low-voltage installations.
Ingress protection rating
IPx8 - Total water tightness, possibility of installation underground and in water.
Joint type
Y-type branch joint factory-filled with gel.
Filling properties
Sealing gel: non-toxic, non-hardening, permanently flexible, easily removable.
Re-openable
Yes (Re-entry) - allows for servicing and modification of connections without replacing the joint.
Mounting orientation
Any - vertical or horizontal thanks to the stable structure of the gel.
Environmental resistance
High resistance to moisture, dust, chemical compounds in the soil, and UV sunlight.
Internal dimensions
155 x 50 x 30 mm - spacious interior facilitating cable arrangement.
External dimensions
194 x 74 x 43 mm - compact housing with high mechanical strength.
Housing material
Durable polymer material with insulating properties.
Application
Garden installations, outdoor lighting, pool pumps, irrigation systems, CCTV.
Safety
Product safe for people and the environment, compliant with electrical insulation standards.
Operating temperature
Wide operating temperature range typical for outdoor installations.
Warranty
2 years (24 months).
Contents
1x KING-JOINT-Y16 branch joint with factory gel filling
1x Installation manual
Dimensions, Weight
Product dimensions: 194 x 74 x 43 mm (D x W x H)
Packaging dimensions: 280 x 100 x 50 mm (D x W x H)
Product weight: 270 g
Weight with packaging: 400 g
