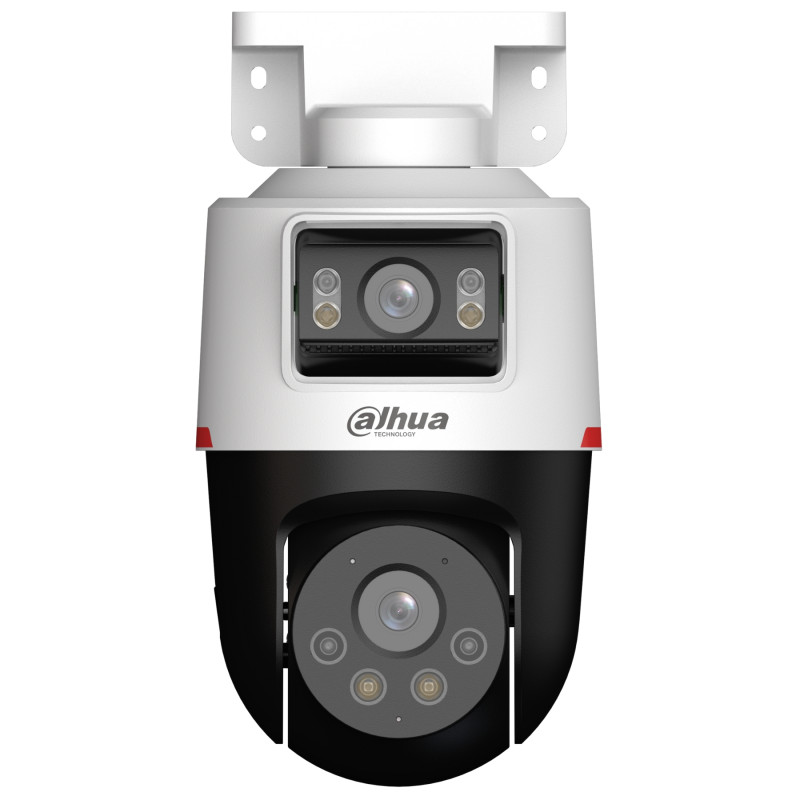

WizColor Active Deterrence Full HD 1080p 3.6mm Dual Lens PT IP Camera with AI SMD

Model: DAHUA IPC-PTS2249B-E2-S-PV-LED-0360B-PRO

EAN: 6931240088692 SKU: 931088696

• Two independent 2 MPx lenses (PT camera and fixed camera)
• Full-color night vision with WizColor technology
• Active deterrence: built-in light signal (LED) and sound (siren)
• Intelligent IVS image analysis: perimeter protection, line crossing, intrusion
• Object classification: human / motor vehicle (SMD PLUS)
• Two-way audio communication (built-in microphone and speaker)
• Wide dynamic range D-WDR and 3D NR noise reduction
• Weather resistance - IP66 ingress protection rating
• Power supply via PoE (802.3af) or 12V DC
• MicroSD card slot with support up to 256GB

Description

Introducing an advanced network camera that redefines outdoor security standards. This innovative Pan & Tilt model is equipped with a unique dual-lens and dual-sensor system with 2 MPx resolution, allowing for simultaneous wide-area monitoring and detailed tracking of moving objects. A key advantage of the device is WizColor technology, which enables the generation of a bright, full-color image even in total darkness, eliminating the need for traditional black-and-white night modes.

The camera is not just a passive observer, but an active protection tool. The Active Deterrence function uses a built-in flashing white LED light and a loud alarm siren to effectively discourage intruders before a breach occurs. The system is supported by advanced Deep Learning artificial intelligence, which precisely classifies objects as humans or vehicles, significantly reducing the number of false alarms caused by animals or weather phenomena. Additionally, the built-in microphone and speaker enable two-way voice communication in real-time.

The device features a robust construction with an IP66 ingress protection rating, ensuring trouble-free operation in extreme weather conditions, from heavy rain to low temperatures reaching -40°C. Thanks to support for MicroSD cards with a capacity of up to 256 GB, the camera can operate as a standalone recording point, and support for the PoE standard facilitates installation by transmitting power and data via a single network cable. This is an ideal solution for homes, businesses, and industrial facilities requiring intelligent and reliable surveillance.

Specification

Standard and Image

Standard: IP; Resolution: PT Camera and Camera 2 (fixed) - 1920 x 1080 (1080p); Sensor: 1/2.9 " Progressive Scan CMOS; Transmission speed: 25 fps @ 1080p; Compression method: Smart H.265+ / H.265 / Smart H.264+ / H.264 / H.264H / H.264B.

Optics and Visibility

Lenses: 3.6 mm (for both modules); Viewing angle: 81 °; White light illuminator range (LED): 30 m; Day/night mode: Yes; White balance: Automatic (WB).

PT Mechanics (Pan/Tilt)

Horizontal rotation range: PT Camera: 0 ° ... 350 °, Camera 2: 0 ° ... 326 ° (manual adjustment); Vertical rotation range: PT Camera: 0 ° ... 90 °, Camera 2: -10 ° ... 15 ° (manual adjustment); Rotation speed (manual): 0.1 °/s ... 55.4 °/s (horizontal), 0.1 °/s ... 29.3 °/s (vertical); Number of presets: 300.

Audio and Alarms

Audio: Built-in microphone and built-in speaker; Audio functions: Two-way communication, Sound detection; Alarms: Active deterrence with light (flashing LED) and sound (siren); Notifications: Push to phone.

Intelligent IVS Analysis

SMD PLUS: searching for objects classified as human or motor vehicle; Deep Learning: Advanced object recognition; IVS functions: Line crossing, intrusion (with classification), scene change.

Network and Protocols

Network interface: 10/100 Base-T (RJ-45); ONVIF: Yes (Profile S/G/T); Protocols: RTSP (rtsp://admin:password@IP:554/cam/realmonitor?channel=1&subtype=0), HTTP, TCP, UDP, ARP, RTP, RTCP, RTMP, SMTP, FTP, DHCP, DNS, DDNS, IPv4/v6, QoS, UPnP, NTP; Max. number of users: 20.

DMSS Software

Dedicated DMSS (Digital Mobile Surveillance System) mobile application available for Android and iOS (iPhone) systems. The software offers comprehensive monitoring system management from anywhere in the world using cloud technology (P2P). The user has access to high-resolution live preview, remote playback of recordings from the memory card, and full configuration of camera parameters. The application instantly sends Push notifications upon detecting motion or a zone breach by a human or vehicle. It also enables two-way audio support and remote triggering of the alarm siren and LED lighting as part of the active deterrence function.

Web Interface and Access

WEB Server: Built-in, access via browser (ports 80, 37777); PC access ports: 37777; Default IP address: 192.168.1.108; Default login: admin (password set at first launch).

Image Functions

WizColor: Full color at night; D-WDR: Wide dynamic range; 3D-NR: Digital noise reduction; BLC/HLC: Backlight / strong light compensation; AGC: Automatic gain control; Sharpness: Contour sharpening; Motion detection: 4 zones; Mirror: Mirror image.

Power Supply and Consumption

Power supply: PoE (802.3af) or 12 V DC / 1.5 A (power adapter not included); Power consumption: max 10.5 W (PoE), max 9.2 W (12V DC).

Construction and Environment

Housing: Mini Speed Dome, Plastic; Ingress protection: IP66; Operating temperature: -40 °C ... 50 °C; Color: White with black elements.

Storage

Memory card slot: Support for Micro SD cards up to 256 GB; ANR function: Yes.

Physical Parameters

Device weight: 0.62 kg (with bracket); Device dimensions: 110 x 159 x 210 mm (with bracket); Mounting: Wall (bracket included).

Additional Information

Supported languages: English; Manufacturer: DAHUA; Warranty: 3 years.

Contents

1x PT IP Camera

1x Mounting bracket (integrated)

1x Set of wall plugs

1x RJ-45 connector cover

1x Quick start guide

Dimensions, Weight

Product dimensions: 210 x 110 x 159 mm (D x W x H)

Packaging dimensions: 190 x 140 x 240 mm (D x W x H)

Product weight: 620 g

Weight with packaging: 884 g
