- New

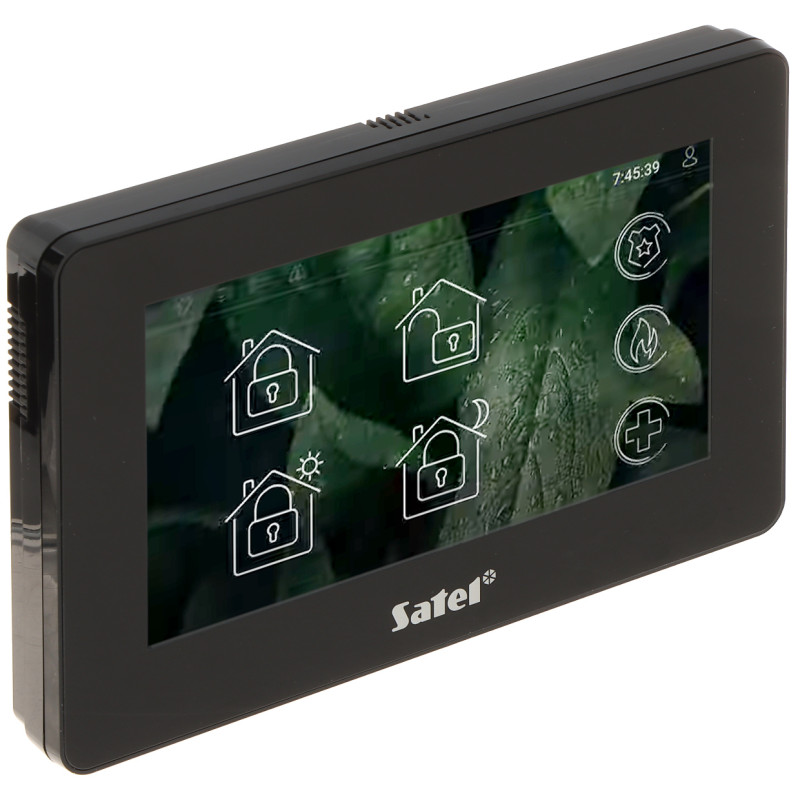

7 inch LCD Graphic Touchscreen Keypad for Alarm System Black Sensory Panel SATEL INT-TSH2-B
zł1,423.11
Tax included
The sensory keypad is a modern and elegant solution dedicated to the daily operation of advanced alarm systems and smart home automation. The device has been designed for users who value the intuitiveness known from smartphones and a modern design that perfectly blends with the decor of contemporary interiors. Thanks to the use of a large, 7-inch capacitive screen, controlling the system becomes extremely simple and clear for every household member.
The greatest advantage of the device is the simplification of complex action sequences thanks to advanced MACRO functions. With a single touch, the user can trigger a whole series of events – for example, arming the system, lowering external roller shutters, and turning off lighting throughout the building. This solution saves time and minimizes the risk of errors when manually entering codes. Solid construction and high screen resolution guarantee comfort of use for many years.
An additional advantage is the ability to personalize the graphic interface, which allows you to adjust the displayed information to individual needs. The device not only informs about the status of zones and inputs but can also act as a digital photo frame or display a calendar and clock in screensaver mode. Integration with INTEGRA and VERSA systems makes it one of the most versatile keypads on the market, combining security functions with the comfort of daily life. By choosing this product, you gain full control over the security of your home in an aesthetic and modern form.
7 inch LCD Graphic Touchscreen Keypad for Alarm System Black Sensory Panel
Model: SATEL INT-TSH2-B
EAN: 6931240073179 SKU: 931073173
- Large, clear 7-inch capacitive touchscreen with high resolution of 1024 x 600 px
- Compatibility with INTEGRA, INTEGRA Plus, and VERSA series alarm control panels
- Support for MACRO functions allowing home automation control with a single touch
- Built-in 2 wired inputs (supported only by INTEGRA and INTEGRA Plus control panels)
- Ability to trigger special alarms: PANIC, FIRE, and MEDICAL directly from the keypad
- microSD memory card slot for uploading custom graphics and photos for the screensaver
- Full tamper protection against enclosure opening and removal from the wall
- Audible signaling of selected system events and loss of communication with the control panel
Description
The sensory keypad is a modern and elegant solution dedicated to the daily operation of advanced alarm systems and smart home automation. The device has been designed for users who value the intuitiveness known from smartphones and a modern design that perfectly blends with the decor of contemporary interiors. Thanks to the use of a large, 7-inch capacitive screen, controlling the system becomes extremely simple and clear for every household member.
The greatest advantage of the device is the simplification of complex action sequences thanks to advanced MACRO functions. With a single touch, the user can trigger a whole series of events – for example, arming the system, lowering external roller shutters, and turning off lighting throughout the building. This solution saves time and minimizes the risk of errors when manually entering codes. Solid construction and high screen resolution guarantee comfort of use for many years.
An additional advantage is the ability to personalize the graphic interface, which allows you to adjust the displayed information to individual needs. The device not only informs about the status of zones and inputs but can also act as a digital photo frame or display a calendar and clock in screensaver mode. Integration with INTEGRA and VERSA systems makes it one of the most versatile keypads on the market, combining security functions with the comfort of daily life. By choosing this product, you gain full control over the security of your home in an aesthetic and modern form.
Specification
Compatibility
SATEL INTEGRA, INTEGRA Plus, VERSA alarm systems
Display
7 inches, capacitive touchscreen, TFT LCD matrix
Resolution
1024 x 600 px (WSVGA), deep color reproduction and high contrast
Interface
Graphic user interface with the ability to personalize icons and widgets
Automation functions
MACRO support – sequences of actions activated by a single control button
Inputs
2 programmable inputs (only INTEGRA/INTEGRA Plus), EOL, 2EOL, 3EOL configuration support
Special alarms
Quick access to alarms: Fire, Help (medical), Panic (silent or audible)
Signaling
Audible (piezoelectric), visual (status icons, screensaver, screen notifications)
External memory
microSD/microSDHC card slot – support for photos for the frame function and object plans
Security
Tamper protection – detection of enclosure opening and removal from the mounting surface
Power parameters
Rated voltage 12V DC (+/- 15%), Current consumption: typical 250 mA, maximum 450 mA
Operating conditions
Environmental class II, operating temperature from -10 °C to +55 °C, humidity up to 93%
Construction
High-quality plastic enclosure in black
System software
The device has a built-in, highly responsive graphic interface optimized for speed of operation. The software allows for full management of the alarm system, including arming and disarming zones (full or night), bypassing inputs, and viewing event history in a clear text form. An advanced widget system allows the user to pull the most important functions (e.g., gate control, driveway lighting, or temperature) directly to the home screen. The system supports a multi-level menu that is logically divided into user and installer sections. The software ensures stable communication with the control panel via the communication bus, guaranteeing an immediate response to touch. Additionally, the digital photo frame function allows for smooth display of an image gallery from a microSD card during panel inactivity, making it a decorative element.
Contents
1x INT-TSH2-B graphic keypad
1x Quick installation and operation manual
1x Set of mounting plugs and screws
Dimensions, Weight
Product dimensions: 22 x 196 x 129 mm (D x W x H)
Package dimensions: 42 x 225 x 150 mm (D x W x H)
Product weight: 380 g
Weight with packaging: 490 g
