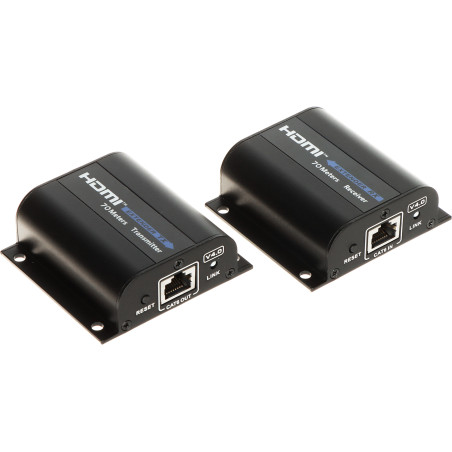

Professional HDMI Extender over RJ45 Cat6 4K UHD 70m HDR10 IR Remote EDID LPCM Support Delta Multimedia HDMI-EX-6IR-V4
zł226.32
Tax included
The HDMI-EX-6IR-V4 device is an advanced technological solution enabling the transmission of high-resolution signals to television receivers equipped with an HDMI connector using a standard category 6, 6A, or 7 twisted pair cable. This innovative system allows for stable image and sound transmission over a distance significantly exceeding the capabilities of standard HDMI cables, making it an ideal choice for home installations and professional AV systems.
The main advantage of the device is the ability to connect various signal sources, such as satellite tuners, DVD players, computers, or game consoles, to a receiver located at a significant distance. Thanks to the use of only one twisted pair cable, the installation process is extremely simplified, which significantly improves room aesthetics and reduces cabling costs. This system provides a crystal-clear image in 4K UHD resolution without visible interference caused by data compression.
An additional benefit is the IR remote extender function, which allows for controlling the source device from the location where the TV is situated. This is particularly useful when AV equipment is hidden in a cabinet or located in another room. The device is characterized by a lack of video transmission latency, which is crucial when playing video games or watching dynamic sports broadcasts. Solid construction and built-in electrostatic protection guarantee long and trouble-free operation in all conditions.
Plug and Play installation makes the device ready for operation almost immediately after taking it out of the box, without requiring complex configuration. Support for HDR10 and EDID standards ensures automatic adjustment of the best image parameters for your display.
Professional HDMI Extender over RJ45 Cat6 4K UHD 70m HDR10 IR Remote EDID LPCM Support
Model: Delta Multimedia HDMI-EX-6IR-V4
EAN: 6931240039854 SKU: 931039852
- HDMI signal transmission over a single Cat. 6/6A/7 twisted pair cable
- Support for ultra-high resolution 4K UHD (3840 x 2160 px)
- Maximum transmission range up to 70 meters for 1080p resolution
- Integrated IR (infrared) remote control extender in the 20-60 kHz range
- HDR10 technology support for improved image dynamics
- No video signal transmission latency (Real-Time)
- Built-in electrostatic protection to increase equipment safety
- Intelligent EDID management for optimal device compatibility
- High-quality construction and compact dimensions of the transmitter and receiver
- Set includes dedicated power supplies for both units
Description
The HDMI-EX-6IR-V4 device is an advanced technological solution enabling the transmission of high-resolution signals to television receivers equipped with an HDMI connector using a standard category 6, 6A, or 7 twisted pair cable. This innovative system allows for stable image and sound transmission over a distance significantly exceeding the capabilities of standard HDMI cables, making it an ideal choice for home installations and professional AV systems.
The main advantage of the device is the ability to connect various signal sources, such as satellite tuners, DVD players, computers, or game consoles, to a receiver located at a significant distance. Thanks to the use of only one twisted pair cable, the installation process is extremely simplified, which significantly improves room aesthetics and reduces cabling costs. This system provides a crystal-clear image in 4K UHD resolution without visible interference caused by data compression.
An additional benefit is the IR remote extender function, which allows for controlling the source device from the location where the TV is situated. This is particularly useful when AV equipment is hidden in a cabinet or located in another room. The device is characterized by a lack of video transmission latency, which is crucial when playing video games or watching dynamic sports broadcasts. Solid construction and built-in electrostatic protection guarantee long and trouble-free operation in all conditions.
Plug and Play installation makes the device ready for operation almost immediately after taking it out of the box, without requiring complex configuration. Support for HDR10 and EDID standards ensures automatic adjustment of the best image parameters for your display.
Specification
HDMI Standard
Version 1.4 - a modern interface used for digital transmission of uncompressed audio and video signals.
HDCP Protection
Version 1.4 - a digital content protection system preventing illegal copying of high-resolution signals.
Supported resolutions
4K UHD (3840 x 2160), max. 4096 x 2160, 1080p (Full HD), 1080i, 720p (HD Ready), 1680 x 1050, 1440 x 900, 1366 x 768, 1280 x 960, 1280 x 800, 1024 x 768, 800 x 600.
4K transmission range
Up to 40 meters using UTP category 6 / 6A / 7 twisted pair at 30 Hz refresh rate.
1080p transmission range
Up to 70 meters using UTP category 6 / 6A / 7 twisted pair at 60 Hz refresh rate.
Audio formats
LPCM (Linear Pulse Code Modulation), PCM, DTS-Audio, DTS-HD - full support for high-quality multi-channel audio.
IR Extender
Support for external infrared sensors in the frequency range from 20 kHz to 60 kHz for remote control.
Image technologies
HDR10 (High Dynamic Range) - provides a wider brightness range and richer colors; EDID - transmission of display capability information to the signal source.
Unit power supply
Voltage 5V DC, Current 0.55A. Power adapters are included in the set.
Power consumption
Very low power consumption, a total of maximum 5W for the entire set (transmitter + receiver).
Operating temperature
Wide operating range from -20 °C to 60 °C allows for installation in various environmental conditions.
Ambient humidity
Permissible humidity from 0% to 90% (non-condensing).
ESD protection
Built-in protection against electrostatic discharges protecting delicate electronic circuits.
Manufacturer warranty
24 months (2 years) - ensuring high reliability and technical support.
Contents
1x HDMI Transmitter
1x HDMI Receiver
2x 5V DC Power Adapter
1x IR Infrared Transmitter
1x IR Infrared Receiver
Dimensions, Weight
Product dimensions: 25 x 71 x 67 mm (D x W x H)
Packaging dimensions: 80 x 205 x 145 mm (D x W x H)
Product weight: 80 g
Weight with packaging: 442 g
