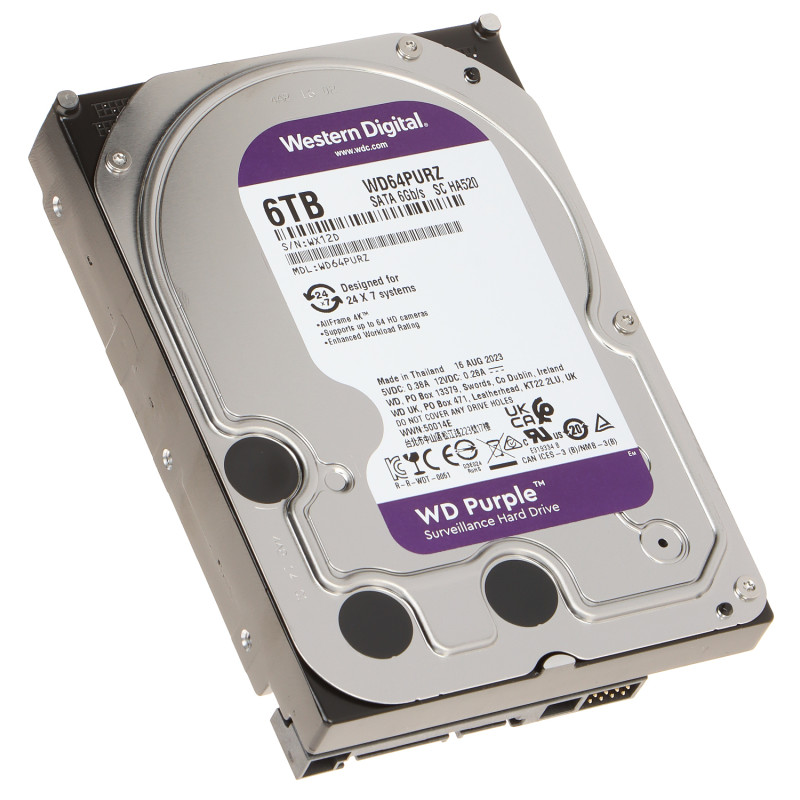

Efficient 6TB SATA III Hard Drive for 24/7 CCTV Surveillance Systems with AllFrame 4K Technology and 256MB Cache

Model: WESTERN DIGITAL HDD-WD64PURZ

EAN: 6931240056189 SKU: 931056187

• 6 TB capacity dedicated to HD surveillance systems
• AllFrame 4K technology minimizing video frame loss
• Continuous 24/7 operation without performance degradation
• Serial ATA/600 interface ensuring fast data transfer
• 256 MB cache memory supporting operational smoothness
• High MTBF reliability rating of 1,000,000 hours
• Increased Enhanced Workload Rating of up to 180 TB per year
• Support for up to 64 high-resolution cameras simultaneously

Description

This surveillance-class hard drive is designed for maximum reliability in industrial television systems. This device is ideal for environments requiring continuous high-resolution image recording, where standard computer drives might fail.

A key advantage of this model is AllFrame 4K technology. This is an advanced solution that, in cooperation with the ATA streaming mechanism, significantly reduces the risk of video frame loss and write errors. As a result, the played-back material is smooth, which is critical for identifying details in security footage.

The drive is characterized by low power consumption, which directly translates into lower heat emission. In surveillance systems where multiple drives operate close to each other in a single recorder chassis, optimal operating temperature is crucial for the durability of the entire set.

The product is fully optimized to support up to 64 HD cameras simultaneously, allowing for great flexibility when expanding security systems. A high Workload Rating of up to 180 TB per year ensures that the drive can handle the intensive data traffic typical of modern NVR and DVR recorders. By choosing this solution, you are investing in the stability and security of your data in 24/7 mode.

Specification

Capacity

6 TB

Interface

Serial ATA/600 (SATA III)

Form factor

3.5 inch

Cache memory

256 MB

AllFrame 4K Technology

A unique technology created by Western Digital, implemented in the Purple series drives. AllFrame 4K optimizes cache management and improves ATA streaming, which drastically reduces frame loss and improves the quality of played-back video in high-resolution systems.

MTBF Reliability

1,000,000 hours (mean time between failures), which testifies to the extreme durability of mechanical and electronic components.

Workload Rating

Enhanced Workload Rating - up to 180 TB per year. This allows for handling intensive write and read cycles, typical for video recorders operating non-stop.

Dedicated operating mode

Continuous 24/7 (surveillance class)

Number of supported cameras

Up to 64 HD streams simultaneously

Operating temperature

Optimized for low heat emission in rack/DVR enclosures

Connectors

SATA Data 7-pin, SATA Power 15-pin

Software and features

AllFrame 4K technology supports ATA streaming request instructions, which allows for better real-time error handling. The drive's algorithms are designed to prioritize the continuity of the video stream recording over non-critical data error correction, which prevents recording stuttering at critical moments. The power management system actively monitors the load to minimize vibration and noise.

Compatibility

Compatible with most leading manufacturers of NVRs, DVRs, and external USB/SATA enclosures.

Warranty

3 years (36 months)

Contents

1x HDD-WD64PURZ Hard Drive

Dimensions, Weight

Product dimensions: 146 x 102 x 26 mm (D x W x H)

Packaging dimensions: 146 x 102 x 26 mm (D x W x H)

Product weight: 570 g

Weight with packaging: 574 g
