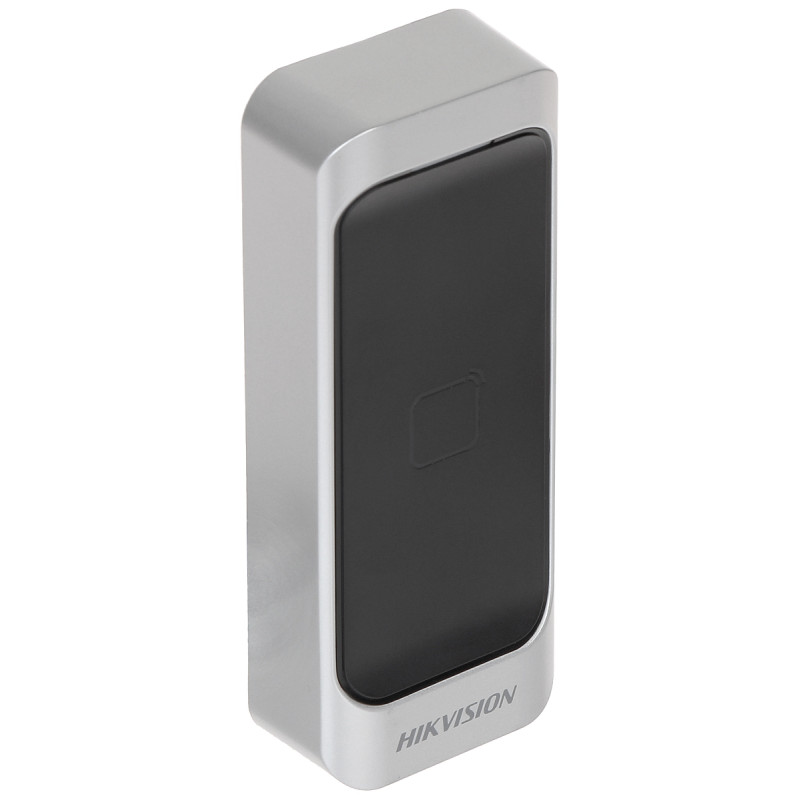

Professional RFID Mifare 13.56MHz Proximity Reader Wiegand RS-485 IP65 Hermetic Access Control Hikvision DS-K1107AM
zł325.95
Tax included
The Hikvision DS-K1107AM device is an advanced, outdoor proximity reader that serves as a key component of access control systems. Designed for reliability and security, it supports the Mifare standard (13.56 MHz), which allows for fast and secure user authorization using cards or key fobs. Its robust construction with an IP65 protection class guarantees full resistance to harsh weather conditions, such as rain or dust, making it an ideal solution for outdoor installation on buildings.
The reader offers integration flexibility thanks to its support for two of the most popular communication protocols: RS-485 and Wiegand (34/26 bit). This allows it to work with a wide range of access controllers from various manufacturers. An additional advantage is the built-in watchdog circuit, which constantly monitors device operation and automatically restarts it if system errors are detected, ensuring continuous operation without the need for service intervention.
System security is enhanced by an integrated tamper contact that immediately informs about unauthorized dismantling or opening of the housing. The device features a modern, minimalist design in silver and black, which discreetly fits into any architecture. The reader is also equipped with visual LED and acoustic (buzzer) signaling, which facilitates user interaction and informs about the access status. A reading range of up to 5 cm ensures comfortable use in everyday conditions.
Product advantages:
- High resistance to external factors (IP65)
- Dual communication interface: RS-485 and Wiegand
- Stable operation thanks to the Watchdog function
- Full tamper protection
- Compatibility with the Mifare 13.56 MHz standard
- Elegant and durable plastic housing
- Wide operating temperature range from -20°C to 65°C.
Professional RFID Mifare 13.56MHz Proximity Reader Wiegand RS-485 IP65 Hermetic Access Control
Model: Hikvision DS-K1107AM
EAN: 6931240052327 SKU: 931052327
- Support for Mifare 13.56 MHz standard
- Communication interfaces RS-485 and Wiegand (34/26)
- IP65 ingress protection class enabling outdoor installation
- Built-in Watchdog system for increased stability
- Integrated tamper protection
- Status signaling via LED indicators and buzzer
- Wide operating temperature range from -20°C to 65°C
- Housing made of durable ABS plastic
Description
The Hikvision DS-K1107AM device is an advanced, outdoor proximity reader that serves as a key component of access control systems. Designed for reliability and security, it supports the Mifare standard (13.56 MHz), which allows for fast and secure user authorization using cards or key fobs. Its robust construction with an IP65 protection class guarantees full resistance to harsh weather conditions, such as rain or dust, making it an ideal solution for outdoor installation on buildings.
The reader offers integration flexibility thanks to its support for two of the most popular communication protocols: RS-485 and Wiegand (34/26 bit). This allows it to work with a wide range of access controllers from various manufacturers. An additional advantage is the built-in watchdog circuit, which constantly monitors device operation and automatically restarts it if system errors are detected, ensuring continuous operation without the need for service intervention.
System security is enhanced by an integrated tamper contact that immediately informs about unauthorized dismantling or opening of the housing. The device features a modern, minimalist design in silver and black, which discreetly fits into any architecture. The reader is also equipped with visual LED and acoustic (buzzer) signaling, which facilitates user interaction and informs about the access status. A reading range of up to 5 cm ensures comfortable use in everyday conditions.
Product advantages:
- High resistance to external factors (IP65)
- Dual communication interface: RS-485 and Wiegand
- Stable operation thanks to the Watchdog function
- Full tamper protection
- Compatibility with the Mifare 13.56 MHz standard
- Elegant and durable plastic housing
- Wide operating temperature range from -20°C to 65°C.
Specification
Identification standard
13.56 MHz S50 (Mifare)
Reading range
Maximum 5 cm
Communication interface
RS-485, Wiegand 34, Wiegand 26
Power supply and energy consumption
12V DC power supply, maximum power consumption 170 mA
Security
Built-in tamper contact, Watchdog function for system auto-refresh
Status indicators
Multicolor LED, built-in sound signal (Buzzer)
Protection class
IP65 (Dust-tight and water-jet resistant)
Ambient temperature
-20 °C ... 65 °C
Permissible humidity
10 % ... 90 % (non-condensing)
Construction
Plastic housing in silver and black
Device management
Built-in DIP switches for address and operation mode configuration
Installation
Surface mount
Compliance with standards
CE, SAP Code: 302918662
Warranty
36 months (3 years)
Software
The DS-K1107AM device is fully compatible with professional Hikvision iVMS-4200 and HikCentral security management software. This software allows for comprehensive configuration of the reader parameters, assigning user permissions in real-time, and monitoring entry/exit events. Thanks to the integration with DS-K26 series controllers, the system allows for remote uploading of access schedules, management of security zones, and generation of detailed attendance reports. Support for the RS-485 protocol provides stable bidirectional communication, allowing device diagnostics directly from the administration console.
Contents
1x DS-K1107AM reader
1x Mounting screw kit
1x Quick start guide
Dimensions, Weight
Product dimensions: 22 x 44 x 115 mm (D x W x H)
Packaging dimensions: 55 x 100 x 145 mm (D x W x H)
Product weight: 130 g
Weight with packaging: 222 g
