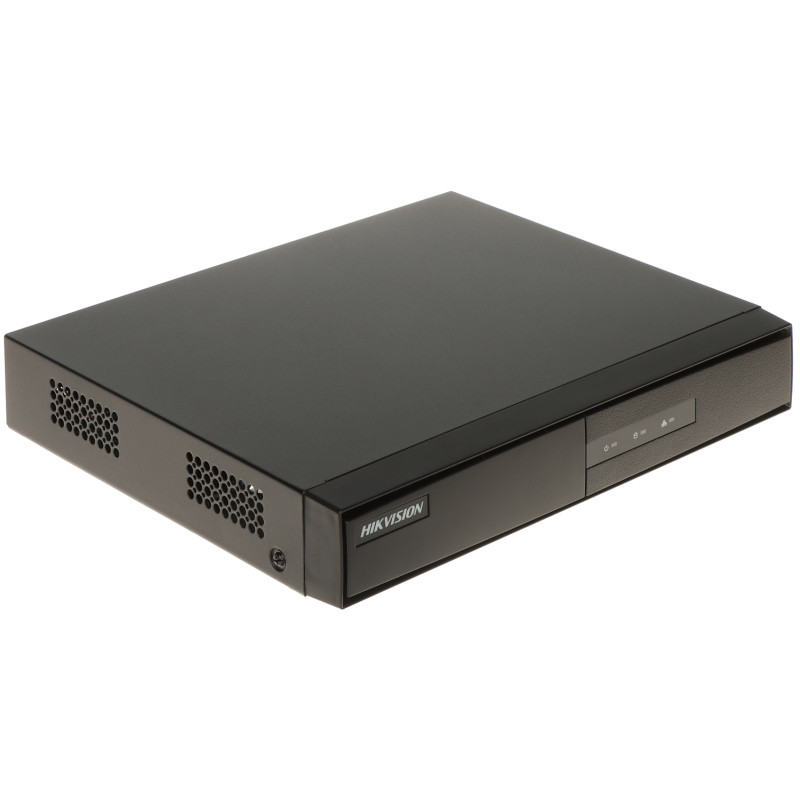

NVR IP surveillance network recorder 4 channels 4K 6MPX H.265+ security system property protection home office

Model: Hikvision DS-7104NI-Q1/M(D)/PL

EAN: 6931240015759 SKU: 931015755

• Support for up to 4 IP cameras at up to 6 Megapixels resolution
• Modern H.265+ / H.265 compression drastically reducing disk space usage
• Intelligent IVS image analysis: line crossing and intrusion
• Remote access via cloud (P2P) using the Hik-Connect application (Android/iOS)
• Stable operation in 10/100 Mbps networks with a throughput of up to 40 Mbps
• HDMI and VGA video outputs working simultaneously
• Support for the ONVIF standard ensuring compatibility with many brands
• Support for SATA hard drives with a capacity of up to 6 TB

Description

The DS-7104NI-Q1/M(D)/PL IP recorder by Hikvision is a modern and professional solution designed for building efficient and reliable video surveillance systems. The device supports up to 4 IP cameras with a high resolution of up to 6 Megapixels, which guarantees a crystal-clear image and the possibility of precise event identification. One of the key advantages of the device is its support for the latest H.265+ compression standard, which allows for hard drive space savings of up to 75% compared to older technologies, without any visible loss of video quality.

Specification

Standard: IP; Supported resolutions: max. 6 Mpx (2592 x 1944)

The recorder is equipped with an intelligent IVS image analysis function that automatically detects key events, such as line crossing or intrusion into a defined area. Thanks to this, the system becomes a proactive protection tool rather than just a passive recording player. Support for P2P cloud technology and the dedicated Hik-Connect application allow the user to access live view and archived recordings from anywhere in the world using a smartphone or tablet, eliminating the need for a static IP address or complicated router configuration.

The device is characterized by a solid construction, an intuitive menu in Polish, and high operational stability, making it an ideal choice for both small offices, shops, and private properties. Collaboration with the ONVIF standard ensures broad compatibility with cameras from various manufacturers, allowing for easy expansion of existing surveillance systems. Additionally, a 3-year manufacturer's warranty confirms the high build quality and durability of the equipment.

Video outputs: 1 pc. HDMI, 1 pc. VGA; Audio support: 4 Channels - Audio from IP cameras

Standards and Resolution

Image compression method: H.265+ / H.265 / H.264+ / H.264; Throughput (bitrate): max. 40 Mbps

Video and Audio Interfaces

Supported hard drives: 1 x 6 TB SATA

Compression and Throughput

Recording modes: Manual, motion detection, schedule; Archiving on external media: Archiving on USB drive (pendrive, external drive)

Data Storage

Searching for recordings by time and event type. Playback: forward, backward, speed up, slow down playback; Simultaneous playback of recordings from max. 4 cameras @ 1080p; Synchronous playback of 1 or 4 channels, Smart Search function

Recording and Archiving Functions

Network interface: 1 x RJ-45 10/100 Base-TX; Network functions: Live image view, Recording playback, Archiving recordings; ONVIF: Yes

Playback and Searching

Default IP address: 192.168.1.64; Default admin login / password: admin / (Password must be set at first launch); Web access ports: 80; RTSP URL: rtsp://user:password@192.168.1.64:554/Streaming/Channels/channelno01/

Network Connectivity

Mobile phone access: Port: 8000 or access via cloud (P2P); Android: Free Hik-Connect app; iOS: Free Hik-Connect app; Mobile app access port: 8000

Configuration and Access

Access ports for PC application: Port: 8000 or access via cloud (P2P) - iVMS-4200 application

Mobile Support

Event detection: line crossing, intrusion (functions implemented in cooperation with cameras supporting these functions); Motion detection: Yes

Desktop Applications

PTZ head control: High-speed IP cameras (Speed Dome); USB: 2 pcs. USB 2.0

Intelligent Image Analysis (IVS)

Power supply: 12 V DC / 1.5 A (power adapter included); Power consumption: ≤ 10 W (without HDD installed)

Control and Integration

Operating temperature: -10 °C ... 55 °C; Supported languages: Polish; SAP Code: 303622713; Warranty: 3 years

Electrical Parameters and Power Consumption

The iVMS-4200 software is an advanced package for managing Hikvision video systems. The application enables comprehensive recorder configuration, real-time preview, remote recording playback, and alarm management. The user can create personalized views, manage facility maps, and manage multiple devices from a single workstation. Hik-Connect, in turn, provides easy mobile access via the P2P cloud, sending push notifications about motion detection directly to the phone, which allows for constant property surveillance regardless of the location.

Operating Conditions and Construction

1x NVR Recorder

1x 12V 1.5A Power Adapter

1x Computer Mouse

1x Set of screws for disk mounting

1x Quick start guide

Software and Management

Dimensions, Weight

Product dimensions: 223 x 265 x 48 mm (D x W x H)

Packaging dimensions: 275 x 405 x 85 mm (D x W x H)

Product weight: 800 g

Weight with packaging: 1292 g
