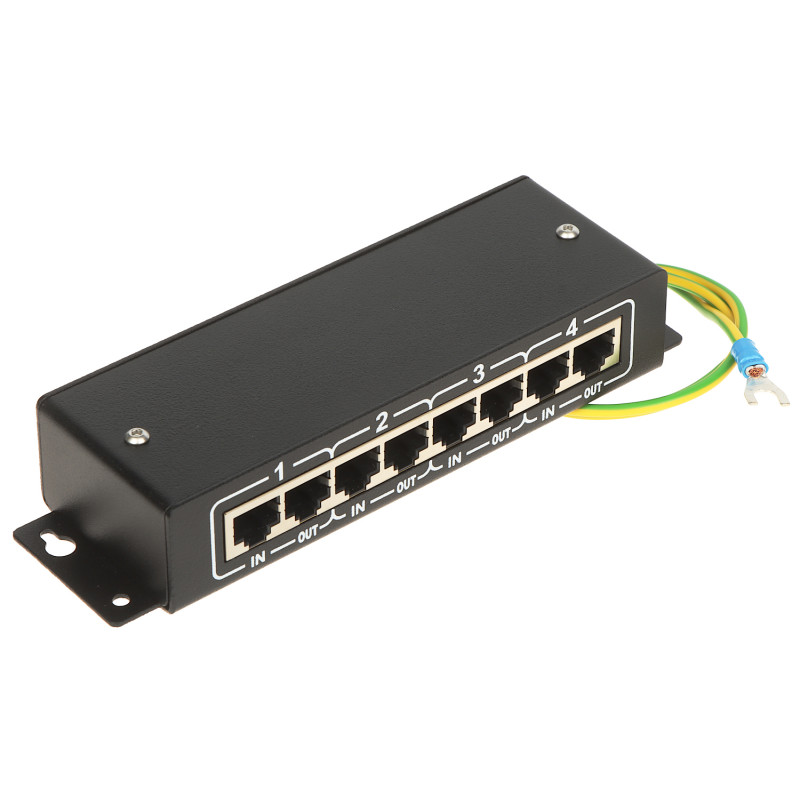

4-Channel LAN IP PoE Surge Protector RJ45 Shielded CCTV Network Protection Effective Storm Guard

Model: AXON AXON-VIDEO-IP-4POE

EAN: 6931240052396 SKU: 931052395

• Protection of 4 independent IP transmission channels
• Full compatibility with PoE power technology
• Protection of both signal and power circuits
• Solid metal housing ensuring shielding
• Fast response of surge protection elements
• Shielded RJ-45 (8P8C) jacks for better stability
• Compliance with the rigorous PN-EN61643-21 standard
• 55 cm grounding wire included

Description

AXON-VIDEO-IP-4POE is a professional, multi-channel protective device designed specifically for modern IP CCTV systems. This high-end surge protector provides essential protection for network cameras and recorders operating in the 10/100 Mb/s Ethernet standard. The main advantage of this model is full support for Power over Ethernet (PoE) technology, meaning the device effectively protects both data lines and wire pairs used to power end devices. Thanks to the use of four independent channels, AXON-VIDEO-IP-4POE allows for the cost-effective protection of an entire group of cameras using only one module, which significantly reduces installation costs and saves space in server racks.

Specification

4 independent protection channels

The construction of the device is based on a solid, powder-coated black metal housing, which not only protects components from mechanical damage but also provides effective shielding of the entire circuit, eliminating potential signal interference in harsh industrial conditions. The advanced surge protection elements used inside react instantly to the appearance of dangerous voltage spikes, discharging the load to the ground via a dedicated 55 cm grounding wire. The device protects lines in line-to-line and line-to-ground configurations, providing a comprehensive barrier against lightning strikes and network failures. By using this surge protector, you are investing in the safety and continuity of your monitoring operation, minimizing the risk of costly downtime and damage to expensive electronics. It is a reliable solution for every installer who cares about the highest standards of protection for video surveillance systems.

10 / 100 Mb/s (Ethernet)

Number of channels

Protected lines: 1, 2, 3, 6; Nominal voltage: 5 V; Maximum voltage: 6 V; Line-to-line protection level: ≤ 40 V - 1 kV/µs [C3]; Line-to-ground protection voltage: ≤ 600 V - 1 kV/µs [C3]; Nominal discharge current (L-L and L-G): 20 A - 10/1000 µs [C3]

Transmission speed

Protected lines: 4, 5 and 7, 8; Nominal supply voltage: 50 V; Maximum supply voltage: 56 V; Nominal supply current: 400 mA; Line-to-line protection voltage: ≤ 95 V [C3]; Line-to-ground protection voltage: ≤ 1000 V [C2]

Signal path - parameters

Nominal line-to-line discharge current: 10 A - 10/1000 µs [C3]; Nominal line-to-ground discharge current: 2 kA - 8/20 µs [C2]

Power path - parameters

Protection parameters compliant with PN-EN61643-21 standard

Power discharge currents

8 x Shielded RJ-45 jack (8P8C) (4 Inputs, 4 Outputs)

Compliance with standards

Metal housing, powder-coated, black, ensuring full shielding

Jack type

Dedicated grounding wire with a length of 550 mm

Housing construction

24 months (2 years)

Grounding

Full support for powering IP cameras via unused wire pairs (PoE)

Warranty

Pass-through device, installed in series in the transmission line

PoE technology

High resistance to external damage due to rigid metal construction

Mounting method

Standard indoor room and industrial conditions

Mechanical resistance

The AXON-VIDEO-IP-4POE device is a passive module and does not have a built-in operating system or a dedicated mobile application. Its operation is based on the physical protective layer of semiconductor surge protection elements that monitor voltage status on transmission and power lines in real time. The lack of a configuration interface is an advantage, as the 'plug-and-play' type device requires no network settings, has no IP address, and is completely transparent to the passing video data stream and PoE power, which guarantees zero latency and no impact on the connection stability of the cameras.

Operating temperature

1x AXON-VIDEO-IP-4POE surge protector

1x Grounding wire (attached)

Software and Interface

Dimensions, Weight

Product dimensions: 50 x 167 x 32 mm (Depth x Width x Height)

Package dimensions: 145 x 250 x 45 mm (Depth x Width x Height)

Product weight: 320 g

Weight with packaging: 386 g

Download

• CE Declaration
• SAFETY COMPLIANCE
