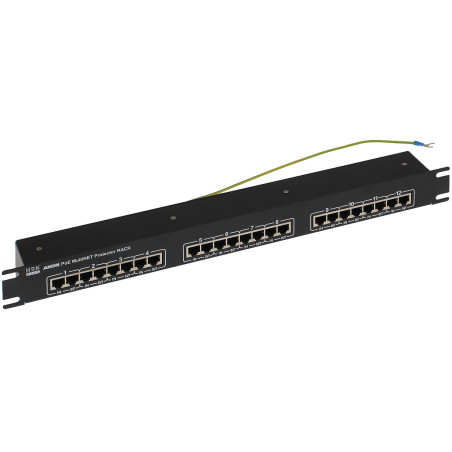

12-channel LAN PoE surge protector for 19-inch RACK cabinet Ethernet network protector AXON AXON-POE-MULTINET-12
zł1,045.22
Tax included
AXON-POE-MULTINET-12 is an advanced, professional multi-channel device designed by the renowned AXON company, dedicated to comprehensive surge protection for devices operating in modern 10/100 Mbps Ethernet networks. It is an ideal solution for IP industrial television systems where cameras and other access points are powered remotely using PoE (Power over Ethernet) technology. The device protects not only the data transmission path but also the power path, making it an extremely versatile and secure element of network infrastructure.
A key advantage of this model is the support for 12 independent protection channels in a single 1U RACK mounting module. Each channel has been precisely engineered to separate and protect data transmission lines (pins 1-2 and 3-6) and power supply lines (pins 4-5 and 7-8). Thanks to this approach, AXON-POE-MULTINET-12 provides maximum power circuit load capacity – the power pins are shorted together (4 with 5 and 7 with 8), which optimizes current flow and minimizes losses. The device housing is made of solid, black powder-coated metal, which ensures excellent mechanical durability and additional shielding from external interference. The use of fully shielded RJ-45 sockets allows for trouble-free cooperation with FTP cabling, maintaining screen continuity along the entire connection path.
Using this limiter significantly increases the level of safety for expensive network hardware, such as PoE switches, NVR recorders, or IP cameras, protecting them from the effects of atmospheric discharges and surges induced in cables. Please remember that full protection efficiency is achieved only when the device is connected to an efficient grounding or PE protective conductor. AXON-POE-MULTINET-12 is an investment in the stability and continuity of monitoring systems, which pays off by eliminating expensive repairs and service downtime resulting from electrical damage. The device is characterized by low capacitance, which guarantees no negative impact on the quality of the digital signal in Fast Ethernet networks.
12-channel LAN PoE surge protector for 19-inch RACK cabinet Ethernet network protector
Model: AXON AXON-POE-MULTINET-12
EAN: 6931240032121 SKU: 931032123
- Protection for up to 12 network devices simultaneously in a 19" RACK standard
- Full protection of data circuit (lines 1-2, 3-6) and PoE power circuit (lines 4-5, 7-8)
- Use of shielded RJ-45 sockets allows for compatibility with FTP cables
- Robust metal housing ensuring durability and shielding
- Increased power circuit load capacity thanks to shorted 4-5 and 7-8 lines
- Compliance with PN-EN61643-21 standard ensuring high protection efficiency
- Simple installation in server and telecommunication cabinets
Description
AXON-POE-MULTINET-12 is an advanced, professional multi-channel device designed by the renowned AXON company, dedicated to comprehensive surge protection for devices operating in modern 10/100 Mbps Ethernet networks. It is an ideal solution for IP industrial television systems where cameras and other access points are powered remotely using PoE (Power over Ethernet) technology. The device protects not only the data transmission path but also the power path, making it an extremely versatile and secure element of network infrastructure.
A key advantage of this model is the support for 12 independent protection channels in a single 1U RACK mounting module. Each channel has been precisely engineered to separate and protect data transmission lines (pins 1-2 and 3-6) and power supply lines (pins 4-5 and 7-8). Thanks to this approach, AXON-POE-MULTINET-12 provides maximum power circuit load capacity – the power pins are shorted together (4 with 5 and 7 with 8), which optimizes current flow and minimizes losses. The device housing is made of solid, black powder-coated metal, which ensures excellent mechanical durability and additional shielding from external interference. The use of fully shielded RJ-45 sockets allows for trouble-free cooperation with FTP cabling, maintaining screen continuity along the entire connection path.
Using this limiter significantly increases the level of safety for expensive network hardware, such as PoE switches, NVR recorders, or IP cameras, protecting them from the effects of atmospheric discharges and surges induced in cables. Please remember that full protection efficiency is achieved only when the device is connected to an efficient grounding or PE protective conductor. AXON-POE-MULTINET-12 is an investment in the stability and continuity of monitoring systems, which pays off by eliminating expensive repairs and service downtime resulting from electrical damage. The device is characterized by low capacitance, which guarantees no negative impact on the quality of the digital signal in Fast Ethernet networks.
Specification
Application
Ethernet 10/100 Mbps and PoE power surge protection
Number of channels
12 channels
Signal circuit - Nominal / maximum voltage
5 V / 6 V
Data circuit protection level (line-line)
≤ 40 V - 1 kV/µs
Data circuit protection voltage (line-ground)
≤ 600 V - 1 kV/µs
Nominal discharge current (data)
20 A (10/1000µs) - applies to line-line and line-ground
Power circuit - Nominal / maximum voltage
50 V / 56 V
Nominal power supply current
400 mA
Power protection level (line-line)
≤ 95 V - 1 kV/µs
Power protection voltage (line-ground)
≤ 1000 V (1.2/50µs)
Nominal power discharge current (line-line)
10 A (10/1000µs)
Nominal power discharge current (line-ground)
2 kA (8/20µs)
Compliance with standards
PN-EN61643-21
Connection socket type
RJ45 (8P8C) shielded
Housing and Construction
Metal, black color, RACK 1U standard
Software
The AXON-POE-MULTINET-12 device is a passive surge protection module, which means it does not have a built-in processor, operating system, or dedicated firmware. It operates based on electronic components that react physically to voltage increases. Therefore, it does not require software configuration, web interface login, or driver installation. It is fully compatible with every network system regardless of the software used to manage end devices.
Contents
1x AXON-POE-MULTINET-12 surge protector
1x User manual
1x Datasheet
Dimensions, Weight
Product dimensions: 50 x 488 x 44 mm (D x W x H)
Packaging dimensions: 55 x 500 x 100 mm (D x W x H)
Product weight: 1070 g
Weight with packaging: 1170 g
