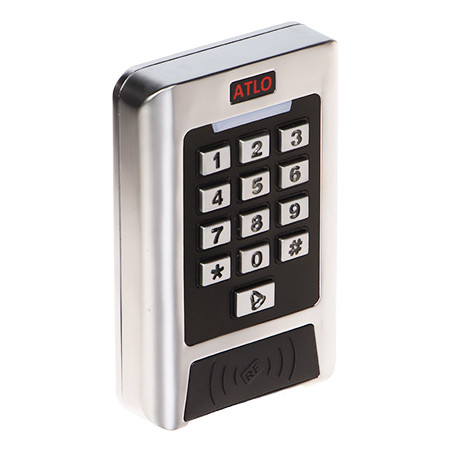

Standalone Digital Keypad RFID 125kHz Reader IP68 Vandal Proof Outdoor Access Control ATLO ATLO-KRMD-510
zł450.67
Tax included
The external, autonomous keypad lock ATLO-KRMD-510 is an advanced device combining an access controller function with an RFID proximity reader. Thanks to its robust, metal housing and high IP68 protection class, the product is ideal for outdoor installation, ensuring reliable operation in difficult weather conditions. The main advantages of this model are the ability to operate in two independent access zones, support for up to 2000 users, and a vandal-proof construction that protects the system from physical damage.
The device offers flexible identification modes – users can gain access using a Unique 125kHz proximity card, a PIN code, or a combination of both methods. Programming the entire system is done directly from the built-in, blue-backlit keypad, which eliminates the need to use a computer. An additional advantage is the doorbell button function, which allows communication with people inside the facility without the need to install additional equipment. The lock supports integration with door contact sensors and exit buttons, allowing for the creation of a complete and secure access control point.
Operational safety is enhanced by audible and visual signaling, informing about the working status and potential open door alarms. This model is characterized by low power consumption (up to 60mA during operation) and universal 12V AC/DC power supply. Its silver-black aesthetics and compact dimensions make the lock blend perfectly with modern architecture, representing a discreet but extremely effective security system element for homes, offices, warehouses, and industrial facilities.
Standalone Digital Keypad RFID 125kHz Reader IP68 Vandal Proof Outdoor Access Control
Model: ATLO ATLO-KRMD-510
EAN: 6931240094433 SKU: 931094439
- Autonomous operation without the need for computer connection
- Unique EM 125kHz standard support
- Vandal-proof, metal housing with IP68 protection class
- Support for up to 2000 users in two access zones
- Identification via card, PIN code, or card and PIN
- Blue keypad backlight for easy operation at night
- Built-in doorbell button
- Support for electric strikes, electromagnetic locks, and reverse strikes
- Wiegand 26 interface
- Audible and visual device status signaling
Description
The external, autonomous keypad lock ATLO-KRMD-510 is an advanced device combining an access controller function with an RFID proximity reader. Thanks to its robust, metal housing and high IP68 protection class, the product is ideal for outdoor installation, ensuring reliable operation in difficult weather conditions. The main advantages of this model are the ability to operate in two independent access zones, support for up to 2000 users, and a vandal-proof construction that protects the system from physical damage.
The device offers flexible identification modes – users can gain access using a Unique 125kHz proximity card, a PIN code, or a combination of both methods. Programming the entire system is done directly from the built-in, blue-backlit keypad, which eliminates the need to use a computer. An additional advantage is the doorbell button function, which allows communication with people inside the facility without the need to install additional equipment. The lock supports integration with door contact sensors and exit buttons, allowing for the creation of a complete and secure access control point.
Operational safety is enhanced by audible and visual signaling, informing about the working status and potential open door alarms. This model is characterized by low power consumption (up to 60mA during operation) and universal 12V AC/DC power supply. Its silver-black aesthetics and compact dimensions make the lock blend perfectly with modern architecture, representing a discreet but extremely effective security system element for homes, offices, warehouses, and industrial facilities.
Specification
Identification standard
Unique EM 125kHz (RFID)
Reading range
Maximum up to 40 mm (4 cm)
Operation modes
Autonomous access controller, support for 2 independent zones
System capacity
Total up to 2000 users for both access zones
Communication and interfaces
Wiegand 26, exit button support, door contact sensor support
Power supply
12 V AC/DC (Alternating or direct current)
Power consumption
Standby mode: 25 mA, Operation mode: 60 mA
Relay outputs
2 NO/NC outputs, contact rating 1 A / 12 V
Construction and material
Vandal-proof metal housing, silver color with black panel
Keypad
Built-in, mechanical, blue backlight
Environmental conditions
Operating temperature: -45 °C ... 55 °C, Humidity: 0% ... 95% (non-condensing)
Protection class
IP68 (fully dust-tight and resistant to water immersion)
Administrator functions
Programming from the keypad, adding/removing cards and PINs, lock release time setting, factory reset
Software and interface
The device operates under the control of an embedded microprocessor managing access logic. The user interface is implemented through sequences of codes entered on the numeric keypad. Internal software allows for precise definition of relay timing parameters (door opening time), user database management, and handling audible alarms related to sabotage or incorrect input status. The system does not require external mobile apps or PC software, which guarantees full independence and resistance to network attacks.
Signaling
Built-in buzzer (audible), LED (visual), open door alarm signaling
Contents
1x Keypad lock ATLO-KRMD-510
1x Mounting kit (screws, wall plugs)
1x User manual
Dimensions, Weight
Product dimensions: 24 x 80 x 120 mm (D x W x H)
Package dimensions: 60 x 190 x 125 mm (D x W x H)
Product weight: 490 g
Weight with package: 621 g
