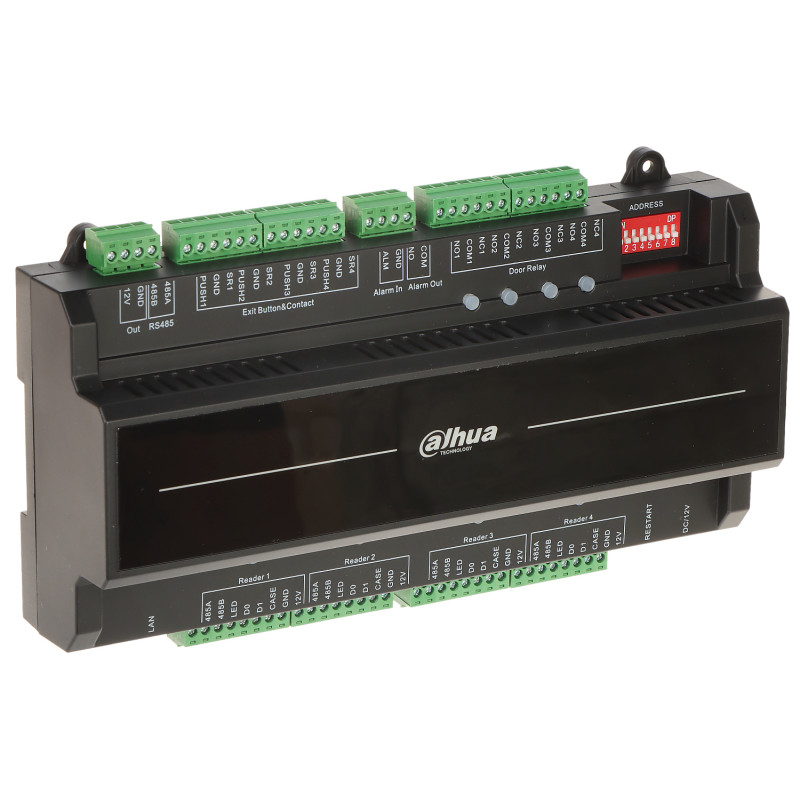

IP Network Access Controller for 4 One-Way Doors Wiegand RS-485 RJ45 Security System DAHUA ASC2204B-S
zł1,496.91
Tax included
Professional access controller dedicated to advanced security systems, enabling precise control of four one-way passages. The device serves as the heart of the access control system, providing reliable user authorization and real-time monitoring of door status. Thanks to support for multiple communication standards such as RS-485 and Wiegand, the controller works with a wide range of card readers, key fobs, and biometric devices.
One of the key advantages of the device is its huge memory capacity, which allows for storing a database of up to 100,000 users and recording up to 150,000 events. This performance makes the system perfect for large office buildings, industrial halls, and public institutions. The built-in Ethernet interface enables full remote management over an IP network, which drastically reduces maintenance costs and allows for an immediate response to security incidents.
System security is enhanced by advanced logic functions, such as Anti-passback, which prevents re-entry with the same card without first exiting, eliminating the risk of passing credentials to third parties. The controller also features an intelligent door-open timer with an alarm system, informing about unauthorized left-open passages. The ability to define a duress code or card provides an extra layer of personnel protection in emergency situations by automatically sending a silent alarm to the monitoring center.
A robust design allows for operation in a wide temperature range from -30°C to 60°C, ensuring stability in various environmental conditions. The device is easy to install and integrate with existing network infrastructure, while the intuitive management software facilitates daily staff database maintenance and the generation of detailed reports on working time and access.
IP Network Access Controller for 4 One-Way Doors Wiegand RS-485 RJ45 Security System
Model: DAHUA ASC2204B-S
EAN: 6931240032800 SKU: 931032804
- Support for up to 4 one-way doors
- Capacity for 100,000 users and 150,000 events
- Communication via Ethernet, RS-485 and Wiegand
- Anti-passback function to prevent abuse
- Remote programming and management from a PC
- Alarm support for door-open timeout
- Duress code access definition support
- Wide operating temperature range from -30°C to 60°C
Description
Professional access controller dedicated to advanced security systems, enabling precise control of four one-way passages. The device serves as the heart of the access control system, providing reliable user authorization and real-time monitoring of door status. Thanks to support for multiple communication standards such as RS-485 and Wiegand, the controller works with a wide range of card readers, key fobs, and biometric devices.
One of the key advantages of the device is its huge memory capacity, which allows for storing a database of up to 100,000 users and recording up to 150,000 events. This performance makes the system perfect for large office buildings, industrial halls, and public institutions. The built-in Ethernet interface enables full remote management over an IP network, which drastically reduces maintenance costs and allows for an immediate response to security incidents.
System security is enhanced by advanced logic functions, such as Anti-passback, which prevents re-entry with the same card without first exiting, eliminating the risk of passing credentials to third parties. The controller also features an intelligent door-open timer with an alarm system, informing about unauthorized left-open passages. The ability to define a duress code or card provides an extra layer of personnel protection in emergency situations by automatically sending a silent alarm to the monitoring center.
A robust design allows for operation in a wide temperature range from -30°C to 60°C, ensuring stability in various environmental conditions. The device is easy to install and integrate with existing network infrastructure, while the intuitive management software facilitates daily staff database maintenance and the generation of detailed reports on working time and access.
Specification
Device type
Bus-based IP access controller
Passage support
4 passages (one-way)
Reader support
4 units (RS-485 / Wiegand)
Communication interfaces
Ethernet (RJ45), RS-485, Wiegand
User memory
100,000 indexed cards/users
Event log
150,000 records in non-volatile memory
Relay outputs
5 units (support for electric strikes, magnetic locks, signaling)
Logic functions
Anti-passback, Multi-door interlocking, Multi-card unlock
Alarms
Door open alarm, intrusion alarm, tamper alarm, duress alarm
Network parameters
Default IP address: 192.168.0.2, TCP/IP, UDP protocols
Power supply
12 V DC / 1.4 A (external power supply)
Environmental conditions
Temperature: -30 °C ... 60 °C; Humidity: max. 95 % (non-condensing)
SmartPSS software
The device is fully compatible with SmartPSS software, which allows for comprehensive security system management from a PC. The application offers an intuitive graphical interface for configuring permissions, creating time schedules, and object mapping. The user has access to real-time event viewing, remote door opening, and generating advanced attendance reports. SmartPSS allows for the integration of access control with a video surveillance system, which enables quick video verification of alarm events. The system also supports notifications about unauthorized access attempts and management of users in multiple locations simultaneously, making it a powerful tool for security system administrators.
Dimensions
207 x 116 x 52 mm
Warranty
3 years
Contents
1x ASC2204B-S access controller
1x Mounting plug kit
1x Quick start guide
Dimensions, Weight
Product dimensions: 52 x 207 x 116 mm (D x W x H)
Packaging dimensions: 85 x 255 x 165 mm (D x W x H)
Product weight: 354 g
Weight with packaging: 548 g
