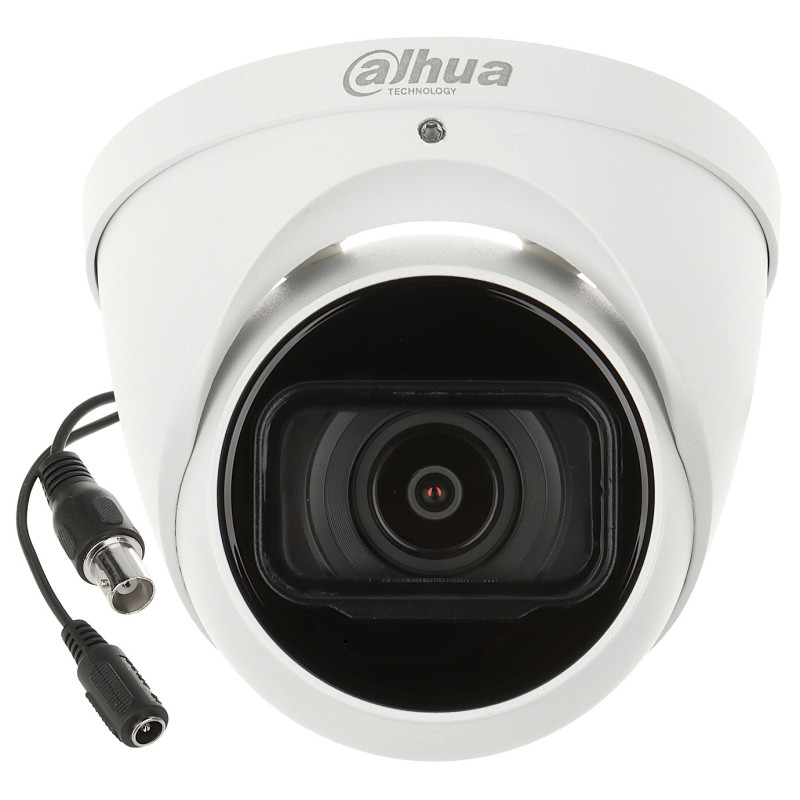

4-in-1 Dome Camera 1080p Full HD Motozoom Lens 2.7-12mm IR Illuminator 60m Microphone IP67 WDR OSD CCTV DAHUA HAC-HDW1231T-Z-A-2
zł738.00
Tax included
This megapixel camera is an advanced video surveillance solution equipped with a high-quality 1/2.8-inch CMOS sensor. The device is characterized by exceptional versatility due to its support for four transmission standards: AHD, HD-CVI, HD-TVI, and the traditional analog PAL system. This solution allows for integration with almost any existing surveillance system while providing a crystal-clear image in Full HD 1080p resolution.
One of the key advantages of the device is the use of a professional motozoom lens with a variable focal length from 2.7 mm to 12 mm. This function enables remote adjustment of the viewing angle and focus without the need for physical access to the camera, which significantly facilitates the installation and subsequent operation process. The signal transmission system takes place via a standard coaxial cable, which guarantees no lag and the preservation of the highest quality details over distances reaching hundreds of meters.
The camera has been designed to operate in the toughest conditions. A solid aluminum housing with an IP67 protection rating guarantees full resistance to dust and strong jets of water, making it an ideal choice for outdoor mounting on building facades or poles. Additionally, a built-in infrared illuminator with a range of up to 60 meters ensures excellent visibility even in total darkness, which, combined with 130dB WDR technology (Wide Dynamic Range), allows for recording details in scenes with high lighting contrast, e.g., at building entrances facing backlight.
The device also features a built-in microphone, allowing for sound recording directly from the monitoring location. It is worth noting that in the HD-CVI standard, audio transmission occurs via the same cable as the image, which simplifies cabling. The camera is a secure investment in safety, offering stable operation, modern digital noise reduction functions, and wide configuration options available through an intuitive OSD menu.
4-in-1 Dome Camera 1080p Full HD Motozoom Lens 2.7-12mm IR Illuminator 60m Microphone IP67 WDR OSD CCTV
Model: DAHUA HAC-HDW1231T-Z-A-271
EAN: 6931240040201 SKU: 931040205
- Standards: AHD, HD-CVI, HD-TVI, PAL
- Resolution Full HD 1920 x 1080p
- Remotely adjustable Motozoom lens 2.7 ... 12 mm
- Very long IR illuminator range - up to 60 meters
- Built-in microphone (audio over coaxial cable in CVI)
- Advanced WDR image dynamics - 130 dB
- Robust metal housing (Aluminum) with IP67 ingress protection
- Image enhancement functions: 2D-DNR, BLC, HLC, AGC, Mirror
- Mechanical IR filter ICR
- Wide operating temperature range: -30°C ... 60°C
Description
This megapixel camera is an advanced video surveillance solution equipped with a high-quality 1/2.8-inch CMOS sensor. The device is characterized by exceptional versatility due to its support for four transmission standards: AHD, HD-CVI, HD-TVI, and the traditional analog PAL system. This solution allows for integration with almost any existing surveillance system while providing a crystal-clear image in Full HD 1080p resolution.
One of the key advantages of the device is the use of a professional motozoom lens with a variable focal length from 2.7 mm to 12 mm. This function enables remote adjustment of the viewing angle and focus without the need for physical access to the camera, which significantly facilitates the installation and subsequent operation process. The signal transmission system takes place via a standard coaxial cable, which guarantees no lag and the preservation of the highest quality details over distances reaching hundreds of meters.
The camera has been designed to operate in the toughest conditions. A solid aluminum housing with an IP67 protection rating guarantees full resistance to dust and strong jets of water, making it an ideal choice for outdoor mounting on building facades or poles. Additionally, a built-in infrared illuminator with a range of up to 60 meters ensures excellent visibility even in total darkness, which, combined with 130dB WDR technology (Wide Dynamic Range), allows for recording details in scenes with high lighting contrast, e.g., at building entrances facing backlight.
The device also features a built-in microphone, allowing for sound recording directly from the monitoring location. It is worth noting that in the HD-CVI standard, audio transmission occurs via the same cable as the image, which simplifies cabling. The camera is a secure investment in safety, offering stable operation, modern digital noise reduction functions, and wide configuration options available through an intuitive OSD menu.
Specification
Signal standard
AHD / HD-CVI / HD-TVI / CVBS (PAL) - universal compatibility with recorders from various manufacturers
Image sensor
1/2.8" Progressive Scan CMOS - ensures high sensitivity and excellent color reproduction
Matrix resolution
2.1 Mpx - 1920 x 1080 (1080p Full HD)
Lens and viewing angle
2.7 ... 12 mm Motozoom; Horizontal viewing angle: 102° ... 32° (manufacturer data), 99° ... 33° (test results)
IR illuminator
Range up to 60 m; Automatic power adjustment of diodes depending on object distance (Smart IR)
Audio
Built-in high-sensitivity microphone; Audio support over coaxial cable (function available only in HD-CVI standard)
WDR function
WDR - 130 dB - Hardware wide dynamic range, allowing for a clear image in places with high light contrast
Noise reduction
2D-DNR - Digital noise reduction in the image, minimizing graininess in low light
Additional image adjustments
BLC (backlight compensation), HLC (highlight compensation), AGC (automatic gain control), Mirror (mirror image), Sharpness (sharpening)
Privacy zones
Possibility to configure up to 8 privacy masks to cover protected areas
OSD menu
Multilingual on-screen menu available remotely via a recorder supporting Control over Coax
Power supply and power consumption
12 V DC / 690 mA; Maximum power consumption: ≤ 8.2 W
Environmental conditions
IP67 ingress protection class (full protection against weather conditions); Operating temperature: -30°C ... 60°C
Physical construction
Type: Dome; Material: Aluminum; Color: White
Software and Interface
The camera works with Dahua DVR systems, which offer access through dedicated Smart PSS software and the DMSS (Digital Mobile Surveillance System) mobile application for Android and iOS. The DMSS application enables real-time remote image preview from anywhere in the world, playback of archived recordings saved on the recorder, and receiving intelligent push notifications about detected motion or alarm events. The application interface is intuitive and allows full control over the monitoring system, including controlling the Motozoom lens directly from the smartphone screen.
Contents
1x Surveillance camera
1x Mounting plug set
1x Mounting template
1x Allen key
Dimensions, Weight
Product dimensions: 122 x 122 x 104 mm (Depth x Width x Height)
Package dimensions: 160 x 160 x 140 mm (Depth x Width x Height)
Product weight: 590 g
Weight with packaging: 820 g
