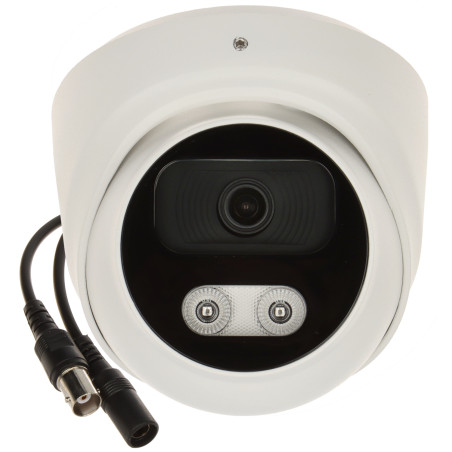

4-in-1 4K UHD 8.3 Mpx 3.6mm IP67 IR 25m Metal Dome Outdoor CCTV Camera with OSD Detection

Model: APTI APTI-H53V21-36W

EAN: 6931240079508 SKU: 931079508

• High resolution 8.3 Mpx 4K UHD for exceptional image detail
• 4-in-1 standard: Support for AHD, HD-CVI, HD-TVI systems, and CVBS analog signal
• Robust metal Dome housing with IP67 ingress protection - perfect for outdoor use
• 3.6 mm focal length lens providing a wide viewing angle of up to 83 degrees
• Integrated IR illuminator with a range of up to 25 meters with automatic power adjustment
• Advanced image enhancement functions: D-WDR, DNR, BLC, AGC, Sharpness
• Mechanical IR filter (ICR) for natural daytime colors and clear nighttime images
• Easy signal format switching via joystick without accessing the OSD menu
• Multilingual OSD menu with full support for various languages
• No transmission delays while maintaining original signal quality

Description

A modern megapixel camera is an ideal solution for demanding monitoring systems that require crystal-clear 4K UHD resolution images. The device is equipped with a high-class 1/2.5 inch Progressive Scan CMOS sensor, which guarantees excellent color reproduction and motion fluidity. Thanks to its support for AHD, HD-CVI, and HD-TVI interfaces, the camera is extremely versatile and can work with almost any modern analog recorder on the market.

Specification

AHD, HD-CVI, HD-TVI, CVBS (switchable via joystick, select format by holding for 5 seconds)

One of the biggest advantages of this model is its solid metal housing with an IP67 rating, making it completely resistant to harsh weather conditions, dust, and heavy rain. It is an ideal choice for outdoor monitoring of properties, warehouses, offices, or parking lots. The 3.6 mm wide-angle lens allows for covering a large monitored area, providing a field of view of up to 83 degrees in practical tests.

The camera features a built-in IR illuminator with a range of up to 25 meters, which, combined with the mechanical IR filter (ICR), allows for clear image recording even in total darkness. Intelligent image enhancement functions, such as D-WDR (Digital Wide Dynamic Range) and DNR (Digital Noise Reduction), ensure that the image is legible even in difficult lighting conditions by eliminating overexposure and graininess. Simple configuration via the OSD menu and the ability to transmit high-quality signals over long distances via coaxial cable without delays are further advantages that place this product at the forefront of CCTV solutions.

1/2.5 inch Progressive Scan CMOS, 8.3 Mpx (MegaPixel) sensor size

Signal standard

3840 x 2160 (8.3 Mpx 4K UHD) at 12.5/15 fps; 2592 x 1944 (5 Mpx) at 12.5/20 fps; 2560 x 1440 (4 Mpx) at 15/25/30 fps; 1920 x 1080 (1080p) at 25/30 fps

Sensor and matrix

Fixed 3.6 mm lens. Viewing angle according to manufacturer: 77 degrees, according to our laboratory tests: 83 degrees.

Operating resolutions

Range up to 25 meters, automatic power adjustment, mechanical IR filter (ICR) for proper color reproduction.

Optics and viewing angle

Video output: 1 Vpp 75 Ohm (BNC); Signal-to-noise ratio (S/N): over 50 dB; Gamma correction: Standard.

IR illuminator

D-WDR - Digital Wide Dynamic Range (improves visibility in shadows and bright spots); DNR - Digital Noise Reduction (removes image graininess at night).

Video parameters

BLC - Backlight Compensation; AGC - Automatic Gain Control; Sharpness - Edge enhancement; White balance: Automatic (WB).

Image functions (WDR/DNR)

The camera has built-in control software accessible via the OSD (On-Screen Display) menu. This interface allows the installer to precisely adjust exposure parameters, day/night operation modes, and configure all digital functions (WDR, DNR, BLC). The menu is intuitive and operated directly from the recorder (via coaxial cable) or using the joystick on the camera cable. The system supports multiple languages, allowing for quick deployment of the device in various regions.

Other functions

Power supply: 12 V DC (direct current) / 260 mA. Maximum power consumption: less than 3.1 W.

Software and OSD Interface

Dome type housing, made entirely of metal, white color. IP67 ingress protection class (full dust protection and resistance to water immersion).

Power supply and consumption

Operating temperature: from -20 °C to 60 °C; Relative humidity: less than 95% without condensation.

Outdoor construction

No vandal-proof properties (IK10), however, the solid metal housing provides high resistance to accidental impacts.

Operating conditions

Net weight: 0.43 kg. Ceiling or wall mounting using the included mounting ring and expansion plugs.

Security

APTI brand, Manufacturer's warranty: 2 years (24 months).

Weight and installation

1x APTI-H53V21-36W Camera

1x Set of mounting plugs and screws

1x Mounting template

1x Quick start guide

Manufacturer

Dimensions, Weight

Product dimensions: 97 x 97 x 91 mm (Depth x Width x Height)

Package dimensions: 100 x 110 x 110 mm (Depth x Width x Height)

Product weight: 430 g

Weight with packaging: 498 g
