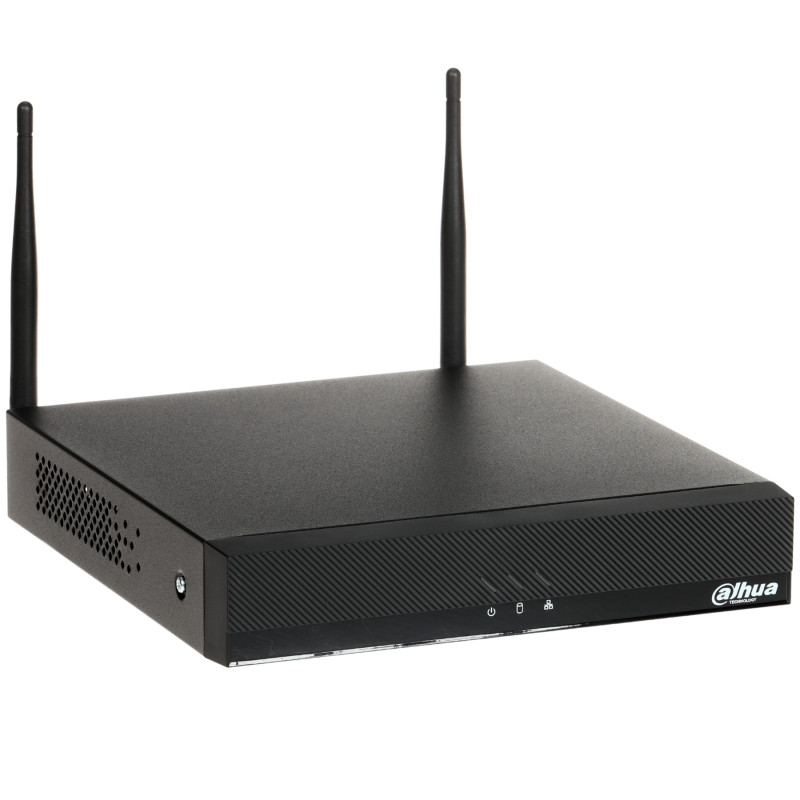

4 Channel WiFi 6 IP Recorder 4K HDMI VGA ONVIF 16MPx AI SMD Plus P2P

Model: DAHUA NVR2104HC-W

EAN: 6931240082980 SKU: 931082982

• Support for up to 4 IP channels at resolutions up to 16 Mpx
• Modern Wi-Fi 6 wireless connectivity (2.4 GHz / 5 GHz)
• Intelligent SMD Plus analysis – precise human and vehicle detection
• HDMI video output with 4K standard and VGA output
• Efficient Smart H.265+ and H.264+ image compression
• Installation support for a SATA hard drive up to 20 TB capacity
• Remote access via P2P cloud and DMSS mobile application (Android/iOS)
• Compliance with ONVIF 24.12 standard for broad compatibility

Description

The Dahua NVR2104HC-W IP recorder is a modern and highly efficient control device, designed for contemporary IP video surveillance systems using wireless connectivity. A key advantage of this model is the implementation of the latest Wi-Fi 6 (IEEE 802.11ax) standard, which provides significantly higher throughput, signal stability, and lower latency compared to older technologies. As a result, the recorder easily handles video streams at very high resolutions, up to 16 Mpx, guaranteeing crystal-clear evidentiary material.

Specification

The device supports advanced AI-based image analytics. The SMD Plus (Smart Motion Detection) function allows for intelligent recognition of human silhouettes and vehicles, which drastically reduces the number of false alarms generated by the movement of animals, leaves, or lighting changes. The recorder features an HDMI output supporting 4K resolution and a classic VGA output, which enables the connection of various displays. Support for SATA hard drives up to 20 TB provides a massive space for archival recordings. Intuitive operation via the DMSS mobile app and SmartPSS Lite software makes security management simple and accessible from anywhere in the world.

Standard

IP (Internet Protocol) - provides fully digital video signal transmission without quality loss.

Series

Lite WiFi - line optimized for easy wireless configuration in homes and small businesses.

Channels

Supports 4 IP network camera channels simultaneously.

Resolution

Maximum supported camera resolution is 16 Mpx (Megapixels), allowing for ultra-detailed viewing.

AI performed by the recorder

SMD PLUS - advanced search and classification of objects (human, motor vehicle) and filtering of false alarms.

AI performed by cameras

Support for perimeter protection (line crossing, intrusion) and Smart Motion Detection performed by connected cameras.

Compression methods

Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG - intelligent algorithms reducing disk space requirements.

Bitrate

Maximum incoming bitrate is 80 Mb/s, ensuring smooth recordings in high quality.

Wireless connectivity

Integrated Wi-Fi 6 module (IEEE 802.11 a/b/g/n/ac/ax) supporting 2.4 GHz and 5 GHz bands for stable connection.

Network interface

1 RJ-45 10/100 Base-TX port for wired LAN connection.

Video outputs

1x HDMI (supports 4K - 3840 x 2160 px), 1x VGA for traditional monitors.

Disk support

Slot for 1 SATA III hard drive with a maximum capacity of up to 20 TB.

Additional interfaces

2 USB 2.0 ports located on the housing for mouse support or copying material to a flash drive.

Software

The DMSS (Digital Mobile Surveillance System) application for Android and iOS is a free, advanced tool allowing for remote live preview, playback of archival recordings, and immediate push notifications upon intruder or vehicle detection. The SmartPSS Lite system for PC (Windows/macOS) allows for professional system management, camera parameter configuration, management of multiple recorders, and creation of backups. The interface is available in Polish, which facilitates daily operation even for beginners.

Dimensions, Weight

Product dimensions: 234 x 197 x 42 mm (Depth x Width x Height)

Package dimensions: 65 x 330 x 240 mm (Depth x Width x Height)

Product weight: 570 g

Weight with package: 1032 g
