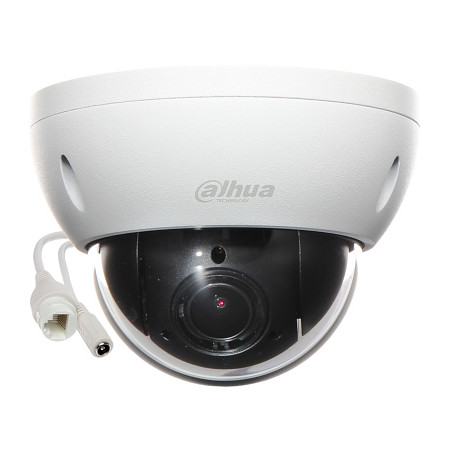

Speed Dome IP Camera 4Mpx 2.8-12mm 4x Zoom Starlight IVS SMD 3.0 IP66 IK10 DAHUA SD22404DB-GNY
zł2,397.54
Tax included
The SD22404DB-GNY Speed Dome IP camera is an advanced monitoring device that combines high 4 Mpx resolution with the flexibility of a PTZ head. Utilizing a modern 1/2.8" Progressive Scan Exmor CMOS sensor, the device delivers exceptionally detailed images, which is critical in systems requiring precise identification of people and vehicles. Starlight technology is one of the key advantages of this model, enabling clear and color recording even under minimal lighting conditions, significantly increasing security levels after dark.
The camera is equipped with a 2.8-12 mm varifocal lens that offers 4x optical zoom. This allows for smooth image zooming without losing digital quality. The device supports intelligent IVS image analysis and SMD 3.0 technology, which effectively classifies detected objects as humans or vehicles, minimizing the number of false alarms. The camera's construction is extremely robust – a vandal-proof IK10-rated housing and IP66 sealing guarantee reliable operation in difficult outdoor conditions and resistance to mechanical damage. Power is supplied traditionally (12V DC) or via PoE (802.3af), simplifying installation and reducing the amount of cabling required. This is an ideal choice for professional video surveillance systems.
Speed Dome IP Camera 4Mpx 2.8-12mm 4x Zoom Starlight IVS SMD 3.0 IP66 IK10
Model: DAHUA SD22404DB-GNY
EAN: 6931240068298 SKU: 931068294
- High resolution 4 Mpx (2560 x 1440) for maximum detail
- Starlight technology for color imaging in ultra-low light
- 4x optical zoom and 16x digital zoom
- Intelligent video analysis IVS (line crossing, intrusion, perimeter protection)
- SMD 3.0 - advanced human and vehicle classification
- Durable, vandal-proof metal housing with IK10 rating
- High ingress protection rating IP66 for outdoor use
- Micro SD card support up to 512GB for local recording
- Wide dynamic range D-WDR and 3D-DNR noise reduction
- Power supply via PoE (802.3af) or 12V DC
Description
The SD22404DB-GNY Speed Dome IP camera is an advanced monitoring device that combines high 4 Mpx resolution with the flexibility of a PTZ head. Utilizing a modern 1/2.8" Progressive Scan Exmor CMOS sensor, the device delivers exceptionally detailed images, which is critical in systems requiring precise identification of people and vehicles. Starlight technology is one of the key advantages of this model, enabling clear and color recording even under minimal lighting conditions, significantly increasing security levels after dark.
The camera is equipped with a 2.8-12 mm varifocal lens that offers 4x optical zoom. This allows for smooth image zooming without losing digital quality. The device supports intelligent IVS image analysis and SMD 3.0 technology, which effectively classifies detected objects as humans or vehicles, minimizing the number of false alarms. The camera's construction is extremely robust – a vandal-proof IK10-rated housing and IP66 sealing guarantee reliable operation in difficult outdoor conditions and resistance to mechanical damage. Power is supplied traditionally (12V DC) or via PoE (802.3af), simplifying installation and reducing the amount of cabling required. This is an ideal choice for professional video surveillance systems.
Specification
Standard and Sensor
Standard: TCP/IP; Sensor: 1/2.8 " Progressive Scan Exmor CMOS; Scanning system: Progressive
Resolution and Matrix
Matrix size: 4 Mpx; Resolution: 2560 x 1440 (4 Mpx), 2304 x 1296 (3 Mpx), 1920 x 1080 (1080p), 1280 x 960 (1.3 Mpx), 1280 x 720 (720p)
Optics and Zoom
Lens: 2.8 ... 12 mm; Viewing angle: 90 ° ... 29 ° (manufacturer), 82 ° ... 28 ° (tests); Optical zoom: x 4; Digital zoom: x 16
Sensitivity and Illumination
Sensitivity: 0.005 Lux (color), 0.0005 Lux (B/W); IR illuminator: None; Mechanical ICR infrared filter: Yes
PTZ Rotation Parameters
Rotation range: Horizontal 0° ... 355° (limited), Vertical 0° ... 90°; Preset speed: 100°/s (horizontal), 60°/s (vertical); Manual speed: 0.1°/s ... 100°/s (horizontal), 0.1°/s ... 60°/s (vertical); Number of presets: 300; Movement routes: 8
Compression and Streams
Compression method: H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG; Main stream speed: 25 fps @ 4 Mpx
Network and Protocols
Network interface: 10/100 Base-T (RJ-45); Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter, QoS, Bonjour, IEEE 802.1x; ONVIF: 21.12
Image Functions
D-WDR (Wide dynamic range), 2D-DNR/3D-DNR (Noise reduction), F-DNR (Defog), EIS (Image stabilization), BLC/HLC (Backlight compensation), Motion detection, Privacy zones, AGC, Mirror, Sharpness
Intelligent IVS Analysis
SMD 3.0 (humans/vehicles), Line crossing, Intrusion, Abandoned/missing object, Area entry/exit detection, Parking detection, Fast movement, Crowd gathering, Face detection
Memory and Access
Memory card slot: Micro SD up to 512GB; WEB Server: Built-in; Max. number of users: 20; Default IP address: 192.168.1.108; Access ports: 80, 37777
Power Supply and Consumption
Power supply: 12 V DC / 510 mA, PoE (802.3af); Power consumption: ≤ 6.1 W
Construction and Environment
Housing: Speed Dome, Metal; Color: White; Operating temperature: -30 °C ... 60 °C; Ingress protection: IP66; Vandal-resistance class: IK10
Software and Application
The camera works with the advanced Dahua software ecosystem. Mobile access is provided by the free DMSS app (available for Android and iOS), which offers live preview, remote playback of SD card recordings, and instant push notifications about alarm events. The app allows full control of PTZ functions, including zooming and rotating the camera head using gestures on the smartphone screen. Thanks to P2P (cloud) technology, remote access configuration is simplified and does not require a public IP address. The system supports multi-level user management and secure SSL/HTTPS connection encryption.
Other data
Supported languages: Polish, English, Czech, French, Spanish, German and others; Warranty: 5 years
Content
1x Speed Dome IP Camera
1x Set of mounting accessories
1x User manual
Dimensions, Weight
Product dimensions: 122 x 122 x 89 mm (Depth x Width x Height)
Packaging dimensions: 160 x 160 x 130 mm (Depth x Width x Height)
Product weight: 570 g
Weight with packaging: 950 g
