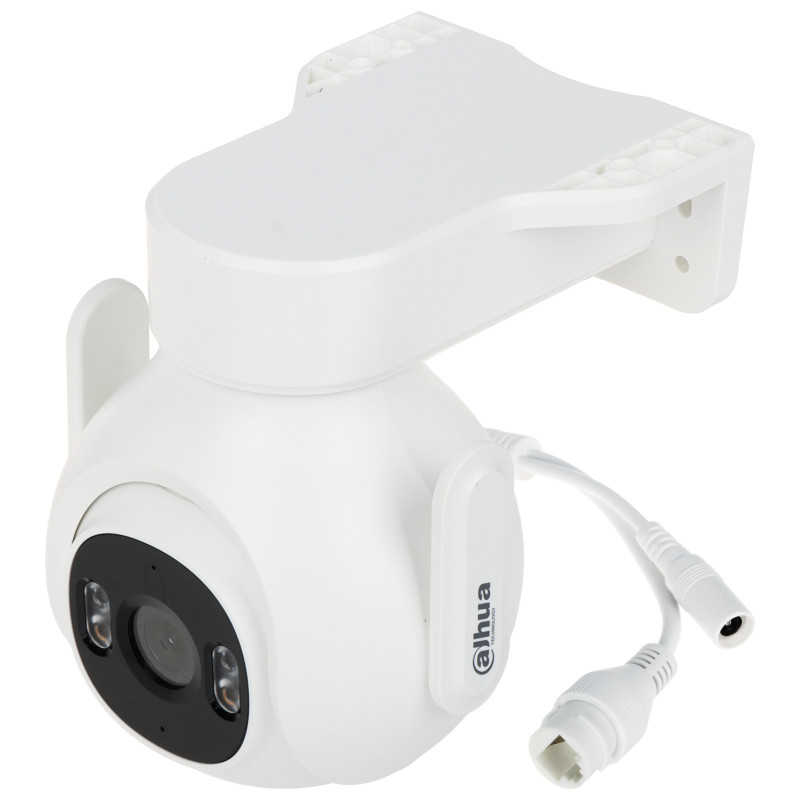

Outdoor Wi-Fi PTZ IP Camera 5Mpx Full-Color Active Deterrence Smart Dual Light AI Human Detection

Model: DAHUA P5B-PV

EAN: 6931240039267 SKU: 931039266

• High resolution 5 Mpx (2880 x 1620) for detailed images
• Full-Color technology - color images 24/7
• Active deterrence - built-in siren and LED illuminator
• Smart Dual Light - intelligent switching between IR and white light
• Smart motion detection SMD 3.0 with human and vehicle classification
• Smart Tracking function - automatic tracking of detected objects
• Built-in microphone and speaker for two-way communication
• Wi-Fi 6 (802.11ax) wireless connectivity for stable connection
• Weather resistance - IP66 ingress protection class
• Supports microSD cards up to 256 GB

Description

The DAHUA P5B-PV PTZ IP camera is a modern external monitoring solution, combining high 5 Mpx resolution with advanced artificial intelligence features. The device stands out with its Full-Color technology, which, thanks to a bright lens and efficient illuminators, allows for the recording of color-saturated images even in total darkness. This is a key advantage in security systems, enabling easier identification of people and vehicles after dark.

Specification

Another benefit is the audiovisual active deterrence function. Upon detecting an intruder, the camera can trigger an alarm siren and pulsed white light, which effectively discourages uninvited guests from taking further action. Thanks to AI intelligent image analysis, the camera precisely distinguishes human silhouettes from other moving objects, minimizing the number of false alarms caused by animals or plant movement.

The device supports Smart Dual Light technology, offering the user a choice between a discreet infrared (IR) mode and intense white light illumination. In smart mode, the camera monitors the area in infrared, and upon detecting an object, it automatically switches to white light, providing high-quality color video evidence. Full rotation (355-degree panoramic) and remote access via a mobile application make the camera an ideal tool for protecting property, offices, or parking lots.

The use of the H.265 compression standard allows for significant memory card space savings (support up to 256GB) while maintaining crystal-clear recording quality. A solid housing with an IP66 ingress protection rating guarantees trouble-free operation in difficult weather conditions, such as heavy rain or low temperatures.

Standard

IP

Resolution

2880 x 1620 px - 5 Mpx

Sensor

1/3 " Progressive Scan CMOS

Lens

3.6 mm

Angle of view

78 °

IR illuminator range

30 m

White light (LED) illuminator range

30 m

Rotation range

Horizontal: 0 ° ... 355 ° (limited by end-stop), Vertical: 0 ° ... 90 °

Image compression method

H.265

Transmission speed

25 fps @ 5 Mpx

Memory card slot

Micro SD card support up to 256GB

Network interface

Wi-Fi - 2.4 GHz IEEE 802.11 b/g/n/ax, Ethernet 10/100 Base-T (RJ-45)

Audio

Built-in microphone, Built-in speaker, Audio detection, Two-way audio support

Intelligent image analysis

Intrusion, line crossing, intelligent motion detection (humans/vehicles), smart object tracking (Smart Tracking)

Selected technical features

D-WDR (Wide Dynamic Range) - improves visibility in contrasting scenes; ICR (Mechanical Infrared Filter) - automatic day/night adjustment; Smart Dual Light - activation of white light after object detection; Active deterrence - light and sound alarm; SMD 3.0 - false alarm filtering; Day/Night mode

Software and access

Access from mobile phone via DMSS (Digital Mobile Surveillance System) application available on Android (Google Play) and iOS (App Store). The application enables remote live viewing, playback of recordings from the SD card, receiving PUSH notifications about alarm events, and two-way voice communication. The software supports managing multiple Dahua devices from one account, offers an intuitive interface, and stable connection via the cloud (P2P) without the need for a static IP address. Access port: 37777.

Power supply and power consumption

12 V DC / 1 A, Power consumption: ≤ 4.56 W

Dimensions, Weight

Product dimensions: 139 x 116 x 138 mm (D x W x H)

Package dimensions: 170 x 175 x 150 mm (D x W x H)

Product weight: 440 g

Weight with packaging: 746 g
