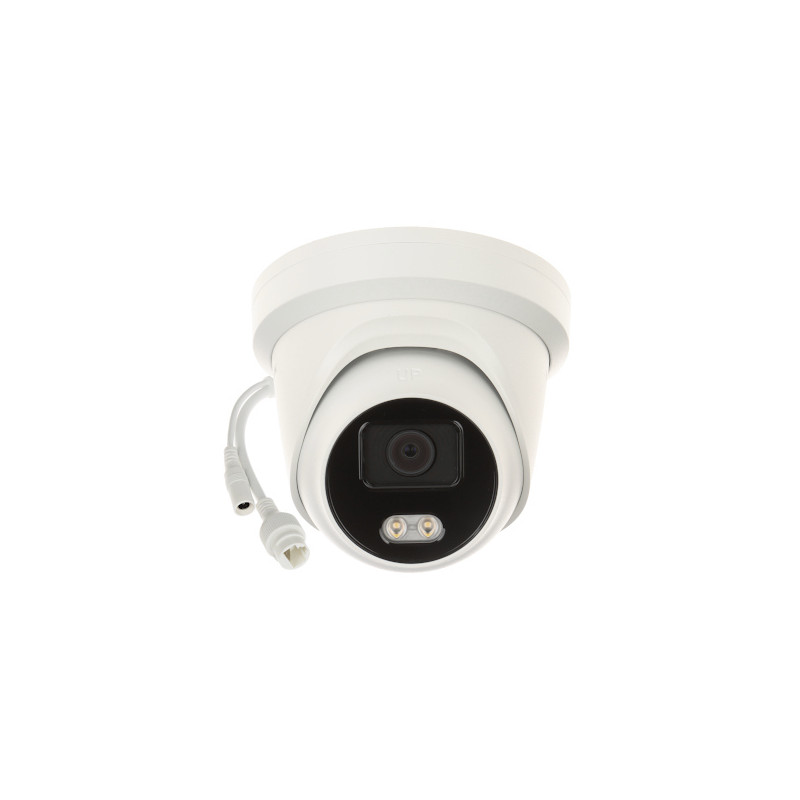

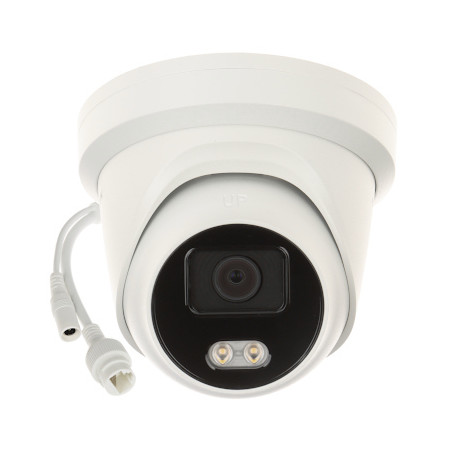

4MP ColorVu LED 30m WDR 130dB IP67 H.265+ AcuSense Human and Vehicle Classification IP Camera

Model: Hikvision DS-2CD2347G2-L 2.8M

EAN: 6931240096062 SKU: 931096063

• ColorVu technology - full-colour imaging 24/7 without night mode
• High resolution 4 MP (2688 x 1520) for excellent detail
• AcuSense intelligent image analysis - human and vehicle recognition and classification
• Built-in white LED light with a range of up to 30 metres
• Ultra-high dynamic range WDR 130 dB for difficult lighting conditions
• H.265+ compression allowing for significant storage space savings
• Micro SD memory card support up to 256GB for local and emergency recording
• IP67 ingress protection rating ensuring full weather resistance
• PoE (802.3af) power supply allowing data and power transmission via a single cable
• Wide 109° viewing angle thanks to the 2.8 mm lens

Description

The Hikvision DS-2CD2347G2-L(2.8mm)(C) ColorVu series IP camera is a breakthrough solution in video surveillance that guarantees a colourful and detailed image 24 hours a day, even in total darkness. By using an extremely sensitive 1/1.8" Progressive Scan CMOS sensor and a built-in white LED light with a range of up to 30 metres, the device eliminates the need for a black-and-white mode, which allows for much easier identification of people, vehicles, and other important environmental details, such as clothing colours or licence plates. 4 MP resolution (2688 x 1520) ensures crystal-clear image quality, and modern H.265+ compression algorithm significantly reduces hard drive storage space and bandwidth requirements while maintaining the highest recording quality.

Specification

The device has been designed for maximum reliability in harsh environmental conditions. The sturdy aluminium and plastic housing has an IP67 protection rating, which ensures full protection against dust and strong water jets, allowing for trouble-free operation outside buildings in temperatures ranging from -30°C to 60°C. The camera supports advanced image enhancement functions, such as WDR (130 dB), which effectively handles overexposure and deep shadows, and 3D-DNR, which minimises digital noise. An additional advantage is AcuSense technology, which allows for intelligent object classification (humans/vehicles), drastically reducing the number of false alarms triggered by rain, leaves, or small animals. Power can be supplied both via a standard 12V DC power adapter and via PoE technology (802.3af), which simplifies cable installation.

Standard and Sensor

Standard: TCP/IP; Sensor: 1/1.8 " Progressive Scan CMOS; Scanning system: Progressive

Resolution and Matrix

Matrix size: 4 Mpx; Resolution: 2688 x 1520 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p; Frame rate: 25 fps @ 4 Mpx

Optics and Viewing Angle

Lens: 2.8 mm; Viewing angle: 109 ° (manufacturer data), 102 ° (our tests); Aperture: F1.0 for maximum sensitivity

Night Illumination

White light illumination range (LED): 30 m; Night mode: ColorVu (no black-and-white mode, 24/7 colour image)

Image Compression

Compression methods: H.265+ / H.265 / H.264+ / H.264 / MJPEG; Triple stream support

Interfaces and Memory

Network interface: 10/100 Base-T (RJ-45); Memory card slot: Micro SD card support up to 256GB (local recording)

Network Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IEEE 802.1x, QoS, IPv4/IPv6, UDP, Bonjour, SSL / TLS, PPPoE, SNMP

Advanced Image Functions

WDR - 130 dB (Wide Dynamic Range); 3D-DNR (Digital Noise Reduction); ROI (Region of Interest); Anti-Flicker; BLC/HLC (Backlight/Highlight Compensation); Mirror; Sharpness

Intelligent Analysis IVS

AcuSense: False alarm filtering (humans/vehicles); Detection: line crossing, intrusion, scene change, region entering/exiting, face detection, video tampering

Access and Management

ONVIF: 18.12; WEB Server: Built-in; Max. user count: 6; Default IP address: 192.168.1.64; Default login: admin

Hik-Connect / iVMS Software

The camera is compatible with the free Hik-Connect mobile app (Android/iOS) and advanced iVMS-4200 software for PC systems. Hik-Connect allows for instant access to live video via P2P cloud without the need for router configuration, offering alarm notifications and two-way event management. iVMS-4200 is a professional management platform for Hikvision systems, enabling recording configuration, e-map management, log analysis, and advanced technical diagnostics of devices. These systems are characterised by high responsiveness, SSL/TLS transmission encryption, and an intuitive interface in many languages, including Polish.

Power Supply and Consumption

Power supply: PoE (802.3af) or 12 V DC / 550 mA; Power consumption: ≤ 7.6 W @ PoE, ≤ 6.6 W @ 12 V DC

Construction and Environment

Housing: Dome, Aluminium + Plastic; Colour: White; Protection rating: IP67; Operating temperature: -30 °C ... 60 °C

Additional Information

Supported languages: Polish, English, and 24 others; Warranty: 3 years; SAP Code: 311315181

Dimensions, Weight

Product dimensions: 139 x 139 x 125 mm (D x W x H)

Package dimensions: 170 x 170 x 150 mm (D x W x H)

Product weight: 780 g

Weight with packaging: 1150 g
