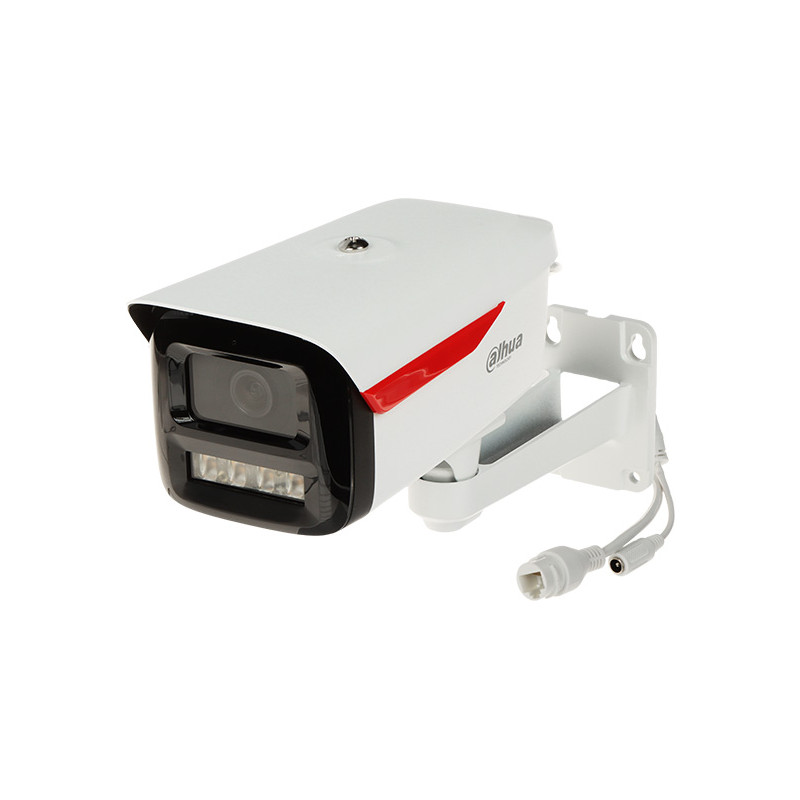

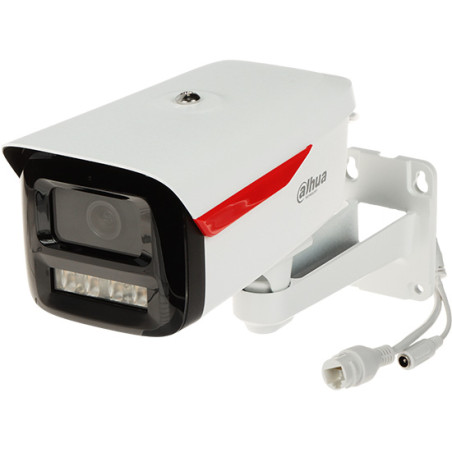

4MP WizColor Network Camera Intelligent LED 50m Microphone SMD Plus Detection IP67 PoE Full Color

Model: DAHUA IPC-HFW2449M-S-LED-0360B-B-PRO

EAN: 6931240095300 SKU: 931095303

• High resolution 4 Mpx (2688 x 1520) for crystal clear image
• WizColor and AI-ISP technology for vivid colors in night scenarios
• Large 1/1.8" Progressive Scan CMOS sensor with high sensitivity
• Powerful white light LED illuminator with a range of up to 50 meters
• Advanced AI analytics: perimeter protection, SMD Plus, human and vehicle classification
• Built-in microphone for audio recording and audio detection
• Efficient H.265+ compression support for storage saving
• Wide Dynamic Range (WDR) 120dB for perfect image in high-contrast lighting
• IP67 ingress protection rating for full outdoor durability
• Micro SD card slot with support for up to 256GB media

Description

Introducing a next-generation advanced network camera that redefines the standards of night monitoring. Thanks to the use of innovative WizColor technology and a powerful AI-ISP processor, the device delivers unprecedented full-color image quality, even in minimal external lighting. A large 1/1.8-inch sensor captures fine details that remain invisible in traditional cameras, while simultaneously minimizing motion blur.

Specification

The camera was designed with durability and versatility in mind. A solid IP67-rated enclosure ensures reliable operation in harsh weather conditions, from heavy rain to extreme temperatures. Support for PoE (Power over Ethernet) simplifies the installation process, allowing data and power to be transmitted via a single Ethernet cable. An integrated microphone with audio detection functionality further expands surveillance capabilities, enabling not only visual but also acoustic verification of events in the protected area.

A key advantage of this model is the intelligent white light (LED) illuminator with an impressive range of up to 50 meters, which, combined with advanced SMD Plus (Smart Motion Detection) image analytics, allows for precise classification of objects such as people and vehicles. As a result, the monitoring system becomes more effective, significantly reducing the number of false alarms triggered by animals, leaves, or weather conditions.

Standard and Sensor

Standard: IP; Sensor: 1/1.8 " Progressive Scan CMOS; Sensitivity: 0.0005 Lux / F1.0 (color)

Resolution and Image

Maximum: 2688 x 1520 - 4 Mpx; Others: 2560 x 1440 (3.7 Mpx), 2304 x 1296 (3 Mpx), 1920 x 1080 (1080p), 1280 x 720 (720p); Transmission rate: 20 fps @ 4 Mpx

Optics and Illumination

Lens: 3.6 mm; Angle of view: 94 °; LED illuminator: range up to 50 m (white light)

Compression and Memory

Compression methods: H.265+ / H.265 / H.264+ / H.264; Memory card support: Micro SD slot up to 256GB; NAS support: Yes

Audio

Microphone: Built-in; Functions: Audio transmission over network, Audio detection

Network Interface

Interface: 10/100 Base-T (RJ-45); ONVIF protocol: Yes; Max number of users: 20; WEB Server: Built-in

Access and Software

Free mobile application DMSS (Digital Mobile Surveillance System) available for Android and iOS platforms enables remote live viewing, playback of recordings, and receiving push notifications about alarm events. The software supports P2P technology, which eliminates the need for a public IP address. The user can configure camera parameters, manage detection zones, and use two-way audio communication. The WEB 5.0 interface in the browser version offers full control over advanced AI functions, recording schedules, and network settings, ensuring intuitive navigation and stable operation. Default IP address: 192.168.1.108; Access ports: 80, 37777.

AI Analysis (WizSense)

Functions: Line crossing (human and vehicle classification), Intrusion (human and vehicle classification), SMD PLUS (intelligent human/vehicle search), Video tampering detection, Scene change

Advanced Functions

AI-ISP (scene adaptation), WDR 120 dB (Wide Dynamic Range), 3D-DNR (Digital Noise Reduction), ROI (8 zones), BLC/HLC (Light compensation), AGC (Automatic gain control), Motion detection (4 zones), Privacy zones (4 masks), Mirror

Power Supply and Consumption

Voltage: PoE (802.3af) or 12V DC; Power consumption: 470 mA @ 12V; Power: ≤ 6.8 W (PoE), ≤ 5.7 W (12V)

Construction and Color

Housing type: Compact; Material: Metal + Plastic; Color: White

Resistance and Environment

Ingress protection: IP67; Operating temperature: -40 °C to 60 °C

Languages and Interface

Supported languages: Polish, English, German, Czech, French, Spanish, Dutch, Russian, Portuguese, Romanian, Ukrainian, Hungarian, Italian

Manufacturer Information

Brand: DAHUA; Warranty: 3 years; S/N: > 56 dB

Dimensions, Weight

Product dimensions: 201 x 104 x 98 mm (D x W x H)

Packaging dimensions: 360 x 175 x 175 mm (D x W x H)

Product weight: 860 g

Weight with packaging: 1258 g
