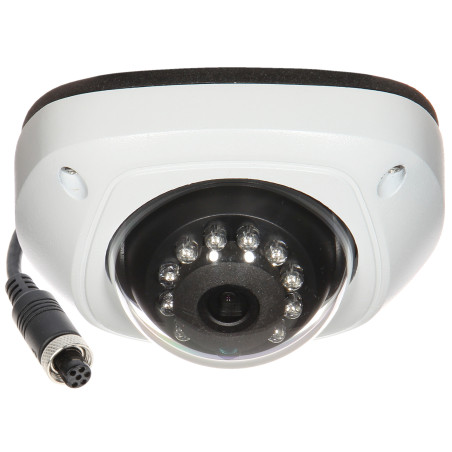

Mobile IP Camera 3.7 Mpx 2.8mm M12 1080p IP65 Mobile CCTV Systems

Model: AUTONE ATE-CAM-IPC925

EAN: 6931240076170 SKU: 931076171

• High 3.7 Mpx resolution for detailed evidence material.
• Specialized M12 6-pin connector resistant to vehicle shocks and vibrations.
• Durable, white metal housing with IP65 ingress protection rating.
• Wide 95-degree viewing angle ideal for tight spaces in vehicles.
• Integrated IR illuminator with a 10m range for night viewing.
• Efficient H.265/H.264 image compression reducing bandwidth and storage usage.
• Full compatibility with ONVIF protocol and NDAA certification.
• Support for automatic image improvement functions: AGC, BLC, WB.

Description

The ATE-CAM-IPC925 mobile IP camera is a professional solution dedicated to surveillance systems in vehicles, such as buses, trucks, or trams. Equipped with a high-class 1/2.7" SC2235 CMOS sensor, it offers a crystal-clear image in 3.7 Mpx resolution (2560 x 1440), allowing for precise identification of events and individuals. One of the device's key advantages is the use of a hermetic M12 connector (6-pin, A-coded), which ensures connection reliability under constant vibrations and shocks occurring during transit.

Specification

The camera features a 2.8 mm focal length lens that provides a wide 95-degree viewing angle, which is optimal for monitoring vehicle interiors. A robust, metal dome-style housing with an IP65 rating effectively protects the electronics against dust and moisture. Thanks to the built-in infrared illuminator with a range of up to 10 meters, the device performs perfectly in total darkness, automatically switching to night mode. Support for the modern H.265 compression standard allows for archiving high-quality footage with minimal network bandwidth load and reduced disk space usage. The camera is fully compliant with the ONVIF standard, which facilitates its integration with a wide range of NVR recorders. The product is NDAA certified, confirming that it meets strict security and quality standards.

Standard and Sensor

Standard: TCP/IP; Sensor: 1/2.7 " SC2235 CMOS; Matrix size: 3.7 Mpx

Operating Resolution

2560 x 1440 - 3.7 Mpx, 2304 x 1296 - 3 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p

Optics and Viewing Angles

Lens: 2.8 mm; Viewing angle: 95 ° (according to manufacturer data), 87 ° (practical test results)

Night Illumination

IR illuminator range: 10 m; Signal-to-noise ratio (S/N): ≥ 58 dB

Compression and Performance

Image compression method: H.265, H.264; Main stream transmission speed: 25 fps @ 3.7 Mpx

Network Interface

Type: 10/100 Base-T; Connector: M12 socket, 6-pin - A-coded; ONVIF: Yes

Advanced Image Functions

Motion detection: scene change detection; Automatic white balance (WB): color rendering; AGC: automatic gain control; BLC: backlight compensation

Software and Access

The built-in web server allows for full device configuration directly through a web browser. The system enables management of video streams, setting motion detection zones, and image parameters such as saturation, brightness, and contrast. Access via the PC application takes place via port 8899. The camera software supports the ONVIF protocol, which enables cooperation with most professional NVRs on the market. The default IP address and authentication data are located on the camera label and packaging, facilitating initial configuration in mobile systems.

Ports and Configuration

Web access ports: 8899; PC application access ports: 8899; Default IP address: Information on label

Power Supply and Energy Efficiency

Power supply: 12 V DC / 600 mA; Power consumption: ≤ 5 W

Mechanical Construction

Housing type: Dome, Metal; Color: White; Ingress protection: IP65

Operating Conditions

Operating temperature: -20 °C ... 60 °C; Purpose: Mobile vehicle surveillance systems

Security

NDAA certification: Yes; Supported languages: English

Manufacturer Information

Brand: AUTONE; Warranty: 2 years

Dimensions, Weight

Product dimensions: 57 x 99 x 97 mm (D x W x H)

Package dimensions: 85 x 110 x 110 mm (D x W x H)

Product weight: 290 g

Weight with package: 352 g
