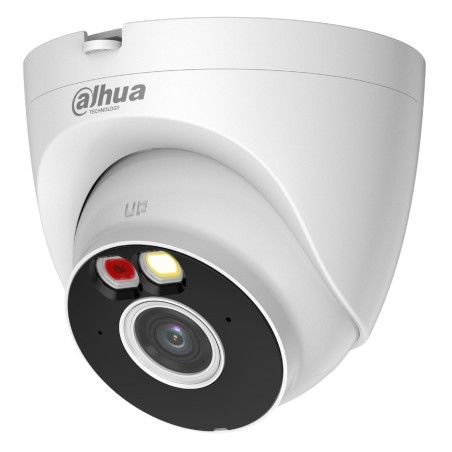

5Mpx Wi-Fi IP Camera Smart Dual Light IR LED 30m 2.8mm IP67 Microphone SD Card

Model: DAHUA IPC-HDW1539DA-SAW-IL-0280B

EAN: 6931240043998 SKU: 931043997

• High resolution of 5 Megapixels (2880 x 1620) for superior detail quality.
• Wi-Fi 6 (802.11ax) wireless connectivity for stable data transmission.
• Smart Dual Light technology - range up to 30m for infrared and white light.
• Intelligent AI detection: classification of people and vehicles in the field of view.
• Built-in microphone for acoustic object monitoring.
• Wide 108-degree viewing angle thanks to a 2.8 mm lens.
• MicroSD card slot supporting media up to 256GB capacity.
• IP67 ingress protection rating ensuring reliable outdoor operation.
• Support for the modern H.265 codec to reduce storage space requirements.
• Fast and easy configuration using Bluetooth technology.

Description

The IPC-HDW1539DA-SAW-IL-0280B is a modern wireless turret network camera that combines a high resolution of 5 Megapixels with advanced Smart Dual Light illumination technology. This device is designed for users looking for a reliable monitoring system that is easy to install due to full Wi-Fi 6 standard support. The camera provides a crystal-clear image with a resolution of 2880 x 1620 pixels, allowing for the identification of small details both day and night.

Specification

Resistance to harsh weather conditions is provided by a robust IP67-rated enclosure, protecting electronics from rain, snow, and heavy dust. Supporting microSD cards up to 256GB allows for local recording storage, making the camera an autonomous surveillance point without the need for a network video recorder. Integration with the free DMSS mobile app allows for instant, remote access to live viewing and receiving alarm notifications directly on a smartphone. Additionally, Bluetooth technology significantly simplifies fast camera pairing with a home network, reducing device configuration time to just a few minutes.

The main advantage of this model is the intelligent lighting mode, which automatically switches between discreet infrared light and bright white light upon detection of motion or a human silhouette/vehicle. This provides the user with a color image at critical moments, which significantly increases the level of security and facilitates subsequent event analysis. The device has a built-in microphone, which enables not only video viewing but also high-quality audio recording in the camera's vicinity.

Standard and Sensor

Standard: IP; Sensor: 1/2.7 " Progressive Scan CMOS

Resolution and Image

Resolution: 2880 x 1620 - 5 Mpx; Transmission speed: 25 fps @ 5 Mpx; Default IP address: 192.168.1.108

Lens

Focal length: 2.8 mm; Viewing angle: 108 degrees

Night Illumination

Smart Dual Light: IR illuminator range: 30 m; White light illuminator range (LED): 30 m

Compression and Recording

Image compression method: H.265 / H.264 / H.264H / H.264B; Memory card slot: Micro SD card support up to 256GB

Audio

Built-in microphone; Audio transmission over network

Network Interface

Wi-Fi: IEEE 802.11 b/g/n/ax (2.4 GHz) - Wi-Fi 6 support; Ethernet: 10/100 Base-T (RJ-45)

AI Analysis and Detection

Human detection; Vehicle detection; Motion detection (max. 4 configurable zones)

Selected Image Features

D-WDR - Wide Dynamic Range; BLC - Backlight Compensation; Image rotation and mirroring; Possibility to change resolution, quality, and bandwidth

Remote Access and ONVIF

ONVIF protocol: Yes; WEB Server: Built-in; Web access ports: 80, 37777; App access ports: 37777; RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0

DMSS Software

Mobile phone access: Android: Free DMSS application; iOS (iPhone): Free DMSS application. The DMSS (Digital Mobile Surveillance System) application is professional software for managing Dahua monitoring systems on mobile devices. The program offers users remote live viewing via P2P (cloud) technology. The user can play back archive recordings saved on the SD card, receive immediate push notifications about motion detection, and configure image parameters. The application allows easy device adding by scanning a QR code and features an interface in Polish.

Working Conditions and Housing

Ingress protection rating: IP67; Operating temperature: -40 °C ... 60 °C; Enclosure type: Dome; Material: Metal + Plastic; Color: White

Power Supply

Power supply: 12 V DC / 410 mA (power adapter included); Power consumption: ≤ 4.9 W

Other Parameters

Supported languages: Polish, English; Warranty: 3 years; Fast Bluetooth pairing: Yes

Dimensions, Weight

Product dimensions: 110 x 110 x 102 mm (D x W x H)

Package dimensions: 125 x 150 x 145 mm (D x W x H)

Product weight: 320 g

Weight with package: 566 g
