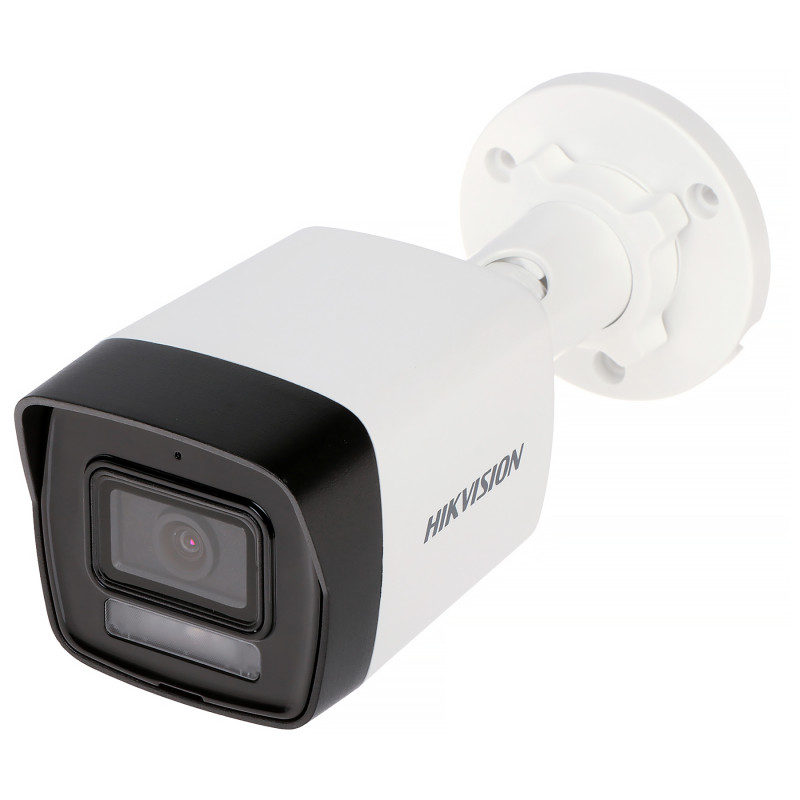

6Mpx Smart Hybrid Light IP Camera IR LED Illuminator WDR Outdoor Surveillance IP67 Microphone PoE

Model: Hikvision DS-2CD1061G2-LIU(2.8MM)/PL

EAN: 6931240015308 SKU: 931015309

• High 6 Mpx resolution (3200 x 1800) for crystal clear images
• Smart Hybrid Light technology - intelligent switching between IR and LED illumination
• Built-in microphone for ambient sound recording
• Intelligent motion detection with human and vehicle classification
• 120 dB WDR wide dynamic range for excellent visibility against light
• Efficient H.265+ image compression to save disk space
• IP67 ingress protection for weather resistance
• Power supply via PoE (802.3af) or 12V DC
• Wide 105-degree field of view
• ONVIF compliance for compatibility with various systems
• Polish language interface and menu version

Description

The Hikvision DS-2CD1061G2-LIU(2.8MM)/PL IP camera is a professional solution dedicated to modern video surveillance systems. Equipped with an advanced 1/2.4" Progressive Scan CMOS sensor, it generates images at an impressive 6 Megapixel resolution (3200 x 1800), allowing for the detection of the finest details, such as facial features or clothing specifics. A key asset of the device is the innovative Smart Hybrid Light technology. Thanks to this, the camera can intelligently manage lighting: in standard night mode, it uses discreet infrared (IR), while upon detecting a human or vehicle, it automatically activates the white LED illuminator. This solution not only effectively deters potential intruders but, most importantly, allows for the recording of color images in critical situations, which is invaluable for identification.

Specification

Standard: IP; Resolution: 3200 x 1800 - 6 Mpx, 2688 x 1520 - 4 Mpx, 1920 x 1080 - 1080p, 1280 x 720 - 720p; Main stream frame rate: 20 fps @ 6 Mpx

Device benefits include a robust IP67-rated enclosure, which guarantees complete resistance to dust and extreme weather conditions, making the camera ideal for outdoor mounting. A wide 105-degree viewing angle allows for monitoring a vast area using a single mounting point. Advanced signal processing functions, such as hardware 120dB WDR and 3D-DNR digital noise reduction, ensure maximum recording clarity even in conditions of strong contrast or low light. The camera supports ultra-efficient H.265+ compression, which significantly lowers data archiving costs without quality loss. Powering via PoE (Power over Ethernet) simplifies the installation process, enabling signal and power transmission through a single network cable. The built-in microphone enriches the evidence material with clear audio recording, positioning this model at the forefront of security solutions for offices, homes, and industrial areas.

Sensor: 1/2.4 " Progressive Scan CMOS; Image compression method: H.265+ / H.265 / H.264+ / H.264 / MJPEG

Standard and Resolution

Lens: 2.8 mm; Viewing angle: 105 °; Sharpness - Image contour sharpening

Sensor and Image

Smart Hybrid Light technology - in night mode, either the IR or LED illuminator operates. The white light switches on automatically only when an object is detected in the monitored area; White light (LED) illuminator range: 30 m; IR illuminator range: 30 m

Optics and Viewing Angle

Audio: Built-in microphone, Audio transmission over network, AAC standard compliance, Noise and echo reduction

Night Illumination

Interface: 10/100 Base-T (RJ-45); ONVIF: Yes; RTSP URL: Main stream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/101/, Sub stream: rtsp://user:password@192.168.1.64:554/Streaming/Channels/102/

Audio and Microphone

WEB Server: Built-in; Max. number of online users: 6; Web access ports: 80; PC application access ports: Port: 8000 or P2P cloud access - iVMS-4200 app; Mobile application access port: 8000; ONVIF port: 80; Hik-Connect and iVMS-4200 software constitute a comprehensive management ecosystem. Hik-Connect enables instant live preview from anywhere via P2P cloud technology, eliminating the need for a public IP address. The user receives push notifications of detection events directly to their phone. iVMS-4200 is a professional PC tool allowing for full camera configuration, advanced recording search, facility map creation, and simultaneous management of multiple devices.

Network Interface and Protocols

WDR - 120 dB - Wide dynamic lighting range; 3D-DNR - Digital image noise reduction; ROI - Improving quality of selected image fragments; Anti-Flicker - Technology eliminating flickering; BLC - Backlight compensation; HLC - Strong point light compensation; Automatic White Balance (WB); AGC - Automatic Gain Control; Mirror - Mirror image

Software and Management

Intelligent motion detection with human and vehicle classification; Configurable privacy zones

Image Processing Functions

Mobile phone access: Port: 8000 or P2P cloud access; Android: Free Hik-Connect app; iOS: Free Hik-Connect app

Intelligent Event Analysis

Default IP address: 192.168.1.64; Default login/password: admin / (Password must be set upon first startup)

Mobile Access and Cloud

Power supply: PoE (802.3af), 12 V DC / 420 mA; Power consumption: ≤ 6.5 W @ PoE, ≤ 5 W @ 12 V DC

Security and Login

Housing: Compact - Metal + Plastic; Color: White; Ingress protection: IP67; Operating temperature: -30 °C ... 60 °C; SAP Code: 311331421

Power Supply and Power Consumption

Supported languages: Polish; Warranty: 3 years; Manufacturer: Hikvision

Housing and Physical Parameters

1x IP Camera

Additional Information

Dimensions, Weight

Product dimensions: 171 x 70 x 70 mm (Depth x Width x Height)

Package dimensions: 215 x 120 x 120 mm (Depth x Width x Height)

Product weight: 280 g

Weight with packaging: 430 g
